Twin Head CNC Router Machine With 8x4 T-slot Table

Model: EA-1325MH2

Category: Multi Head CNC Router

Brand: EagleTec CNCTwin Head CNC Router Machine With 8x4 T-slot Table

Condition: New Condition

Reference Price: USD6180 / SET

Price Range: USD5600 to USD8500 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Go into production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 1130KGS

Package Dimension: 3170*2230*1850mm (13.00CBM Approx.)

H.S. Code: 84659900.00

Recommendation: Twin Head CNC Router Machine With 8x4 T-slot Table4.7 /5 based on 36 reviews



The twin head cnc router machine here is equipped with two individual motion heads, each head with a water cooling 3kw spindle. All electronics and precision components are adopted the most durable ones (e.g. Fuling inverter and Yako yka2811ma driver). And it is manufactured with 15 critical technics. It’s a high-performance and durable cnc machine.

Prefer a similar machine but with a vacuum bed? Please check out here: double head cnc router with vacuum bed4 head cnc router with a vacuum table, and cnc wood carving machine for sale with eight spindles

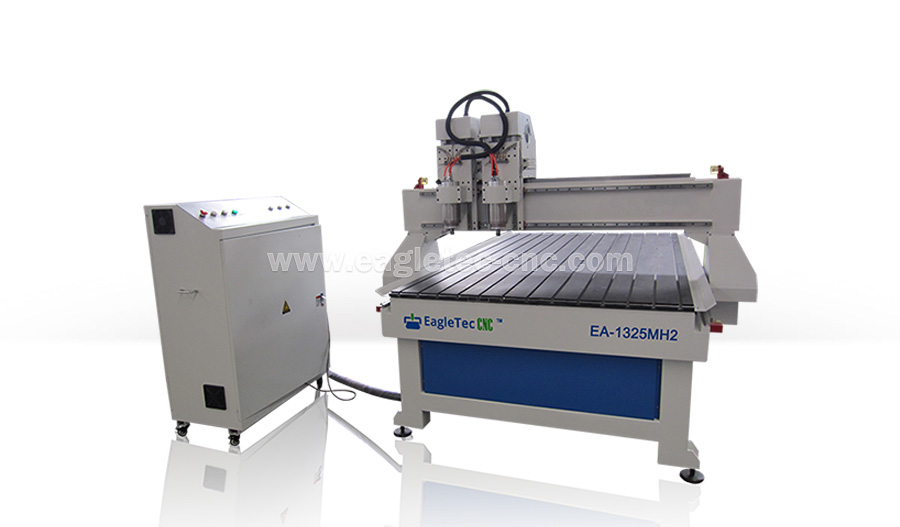

the blue and white twin head cnc router machine is placed on the ground

Technical Advantages of Twin Head CNC Router

Twin head design opens more possibilities for utilization. Just because that, it can work as dual heads cnc router as well as single head cnc router. The two heads are independent of each other and can be controlled separately. When working with only one head, it can get full working size 4×8 feet (1300x2500mm). So, if the job is full size sheet 4×8 feet, just use one head to work it; if job size is 2’×8’ or less, please use two heads synchronously and you will get two pieces of jobs at a time. At this time, its output is twice that of a single-head machine.

EagleTec Twin Head CNC Router EA-1325MH2 Specs

• It has two individual motion heads; It refers to that each head has its own X axis and Z axis. Using one or two head, as you like, very flexible.

• Machine base is heavy duty load; welded with thick square tubes and milled by cnc machining center, not a hand-finished job at all.

• The design of the T-slot table is very cost-effective from the perspective of cost. Because it doesn’t require a vacuum pump.

• In order to make a high-performance and durable machine, all the components are the ones with the best performance and durability among the similar products. For instance, Fuling inverter, YAKO YKA2811MA stepping driver, original Taiwan square linear guides, RichAuto controller etc.

• All motion axes are supported by precise square linear guideways and bearings; besides this, there are a central lubricating system for the guideways and bearings.

• Re-carving function after power failure.

• The twin head cnc router machine adopts handheld controller – RichAuto DSP A11; it’s an entry level CNC controller particular for beginners.

blue and white 4x8 table twin head cnc router is ready in plant

Twin Head CNC Router Utilization

Applicable Industry

Woodworking works, sign-making, artworks, decoration, slot wall panels and more.

wood carving and cutting projects by twin head cnc router


Wood, Acrylic, MDF, ACM, PVC, Foam.

Quick Details of The Dual Head Router

• Heavy-duty machine base ( Finished by CNC machining center to minimize cumulative error )

• Bed Size 1300x2500mm (4ft x 8ft ) – Actual working size

Water cooling spindle motor 3.0KW – 2PCS

• Handheld controller – RichAuto Auto-Now A11E

• Step Motors – 6PCS

• YAKO YKA2811MA drivers – 6PCS

• Original Taiwan PMI square type linear guides and bearing – size 20mm

• Individual electronics cabinet

• Central lubrication system

Technical Parameter of EagleTec Twin Head CNC Router Machine with 8x4 Table

Model No.EA-1325MH2
TypeMultiple Head CNC Router
Motion Head QtyTwo, individual type
Spindle QtyTwo
Axis Quantity Three
Machine BaseHeavy-duty, finish by CNC machining center to minimize cumulative error
Working TableAluminum profile T-slots type
Working Bed Size4ft x 8ft ( 1300x2500mm )
Z Axis Stroke7.87in ( 200mm )
Max. Feed Height7.87in ( 200mm )
Electric Spindle Water cooling, 3.0Kw, 24000rpm - 2PCS
Collet SizeER25
Acceptable Tool Diameter3.175 ~ 16mm
Inverter 3.7kw - 2PCS, Fuling brand - the most reliable ones
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveStepper - 6PCS
Driver YAKO YKA2811MA - 6PCS ( The most reliable one )
Fast Travel Speed35,000mm/min
Max. Carving Speed12,000mm/min
CNC ControllerHandheld RichAuto Auto-Now A11E/A11S
X Axis TransmissionHelical rack and pinion, belt-driven gear case
Y Axis TransmissionHelical rack and pinion, belt-driven gear case
Z Axis TransmissionRolling ballscrew, 25mm
X Linear Guides Square type, 20mm
Y Linear GuidesSquare type, 20mm
Z Linear GuidesSquare type, 20mm
Communication CommandG code
Compatible Programming SoftwareArtCAM, Aspire, UcanCAM, Type 3, JD Paint MasterCAM
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables to avoid signal interference
Workpiece Clamping WayBy clamps
Lubrication SystemVolumetric Central lubricating, manual type
Working PowerAC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph)
Max. Power Consumption12KW
Net Weight 1,1500KGS
Gross Weight1,250KGS
Package WayPlywood Case
Package Dimension3170*2230*1850mm (13CBM Approx.)
Dust ExtractorOptional

FAQ Concerning 8x4 Twin Head CNC Router

Q: Will This Machine Delivered Ready to Use or Need Additional Assembly Once It Arrived?

A: The 4x8 twin head cnc router would be delivered ready to use. And there is no additional assembly works required since all works complete in our plant already.

Q: What Is the Lead Time for This Machine?

A: It goes into production on receipt of deposit; We can get the twin head cnc machine ready within 15 business days.

Q: What Kind of Warranty Do You Offer for This CNC Router Machine?

A: It’s a 12-months warranty since the departure. Under warranty, you’ll enjoy free replacement for any broken parts except Vulnerable parts. After that, we provide you constant free online support as well; for spare parts replacement, it will be charged on basic of raw materials’ cost.
