8 Spindle CNC Wood Carving Machine with Multi Head

Model: EA-2030MS8

Category: Multi Head CNC Router

Brand: EagleTec CNC 8 Spindle Multi Head CNC Wood Carving Machine

Condition: New Condition

Reference Price: USD16500 / SET

Price Range: USD14000 to USD18000 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 1800KGS

Package Dimension: 3700*2250*2250mm (19.00CBM Approx)

H.S. Code: 84659900.00

Recommendation: 8 Spindle Multi Head CNC Wood Carving Machine4.8 /5 based on 43 reviews


PRODUCT DESCRIPTION

Summary

This is a cnc wood carving machine with multiple spindles, also known as multi spindles cnc router (since someone would consider the spindle as head). It is equipped with a total of 8 spindle motors; This ingenious design opens a lot of possibilities for productivity (In terms of this point, we will elaborate in the following paragraphs), which is ideal for mass relief carving works in wood and cnc wood arts. So, it is usually applied to the production of solid wood European style furniture. High quality 8 spindle cnc wood carver machine for sale with good price and excellent expert service here.


Except for the 8 spindle cnc relief carving machine here, we also have dual head cnc router and four head cnc router , and 3d cnc wood carving machine with rotary axis

8 spindle multi heads cnc wood carving router machine on the floor

Demo – EagleTec Eight Spindles CNC Carving Machine Making Relief Sculpture in Solid Wood

Why do we say that this multi-spindle or multi-head design gives more possibilities in terms of productivity?

As per the size of actual workpiece, we can run different numbers of spindles for the job. It really provides more possibilities for our production. Let's talk about specific points below. The total width of the flat working platform is 2,000mm. Assuming that the width of the job is 220mm, then we can start all the spindles (eight pieces) to work at the same time, so that we can get 8 pieces at a time; Similarly, if the width of the relief to be processed is 800mm, we can run 2 spindles to complete that.



In addition, according to actual needs, we can also turn on 1 spindle or 4 spindles etc. We can find that in any case, the 8 spindle cnc machine for wood carving can give the largest possible output, which is exactly the advantage of this machine.



The following video shows how does it look like when two spindle works at same time. Enjoy!

The Excellent Configuration of This 8 Spindle CNC Machine for Wood Carving

• Eight pieces water cooling spindles are assembled on a bracket and the distance between each pair is 250mm.

8 pieces water cooling spindles assembled on cnc wood carving machine

• Big torque water cooling spindle with 24,000rpm spindle speed is ideal for wood carving jobs since the carving jobs always take very long time to finish; while water cooling is better on cooled effect than air cooling in long time run.

• The Z-axis is driven by a hardened Taiwan rolling antibacklash ball screw. And it is adopted AC servo motor with holding brake. Perfect coupler connection between ball screw shaft and driving motor shaft allows Z axis run in long term without trouble.

Z-axis transmission part of eight spindle cnc wood carving router machine

• The Z-axis has a dual pneumatic counter-balance cylinder to allow very fast and accurate Z-axis positioning.

• The computer wood carving machine base is welded by the thick-wall square tubes, and then precision milled by the CNC metal processing center, which guarantees the assembly accuracy from the beginning of production.

eight head cnc router wood carving machine base in workshop

• The upright structure adopted in the side plate has stronger rigidity and higher machine precision.

• The whole cnc woodworking machine is equipped with YASKAWA AC servo motors; Fast and precise. The Y-axis uses a dual drive, one for each side of the gantry.

dual drive design on Y-axis of 8 spindle multi head cnc router machine

• Emergency stop switches are installed on both sides of the beam; if an emergency occurs, the operator can stop the machine in the shortest time.

• To achieve the best reliability, each electro-spindle is controlled with an individual inverter. So, there are eight pieces totally.

eight pieces inverters mounted in 8 spindle cnc router control cabinet

• All the linear guides are centrally lubricated from a central system. The lubricator is the auto type. We can set automatic timing lubrication.

the automatic lubrication pump is installed on the side of the multi head cnc router beam

• The cable behind the machine beam adopts a plug-and-play design, which facilitates the disassembly and assembly of the beam.

cables behind the 8 head cnc router beam

• The X and Y axis motion is via a helical rack and pinion drive, which is hardened for extremely long life and ground for a very good accuracy.

helical racks on X-axis of eight heads cnc wood carving machine

Application of CNC Wood Carving Machine for Sale

Applicable Industry of 8 Spindle CNC Wood Carver for Sale

It is ideal for mass wood carving jobs in furniture production or woodworking business. It is always applied to furniture plants, especially the one who makes European style furniture.

anne queen style furniture carved parts

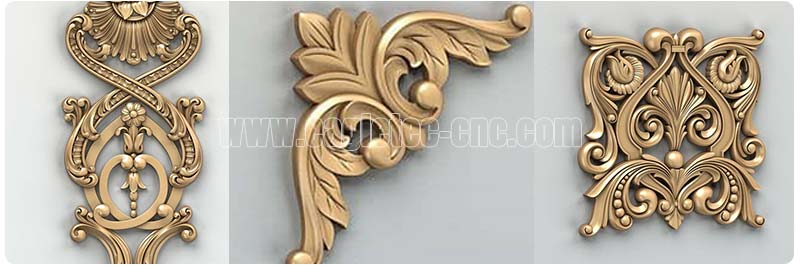

nice carving jobs complete by 8 spindle cnc wood carving machine

Materials Good for CNC Carver

Good for all kinds of wood including Solid Wood and MDF.

eight spindle cnc router wood carving machine ready in workshop

eight spindle cnc router wood carving machine rear view

Packing Details of Multi Spindle CNC Router Wood Carving Machine

Due to the fact that the overall dimension of this eight spindle cnc machine is bigger than the container size, to get the cnc wood engraving machine accommodated in, the gantry will need to be disassembled first and then full set machine is packed in a plywood case.

eight spindle cnc wood carving machine packed with gantry knocked down

Quick Details of Eight Spindle Multi Head CNC Wood Carving Machines for Sale

• Flat Bed Size 2000x3000mm

• Eight spindles on machine head

• Water cooling spindle motor 2.2KW – 8PCS

• Variable speed for spindles: 0 -24,000RPM

• Heavy-duty machine base

• RichAuto Handheld unit with built-in controller software

• Yaskawa Servo Motors

• Original Taiwan PMI square type linear guides and bearing – size 25mm

• Individual control cabinet

• Central lubrication system – auto type

several eight heads spindles cnc wood carving machine ready in our plant

Technical Parameter of Computerized Wood Carving Machine with Multi Head

Model No.EA-2030MS8
TypeMultiple Spindle Head CNC Router
Machine Head QtyOne
Spindle QtyEight
Axis Quantity Three
Machine BaseHeavy-duty, VSR treatment, finish by CNC machining center
Working TableAluminum Profile Flat Table
X Axis Stroke 6.56ft ( 2000mm )
Y Axis Stroke10ft ( 3000mm )
Z Axis Stroke11.8in ( 300mm )
Max. Feed Height11.8in ( 300mm )
Electric Spindle Water cooling, 2.2Kw (power), 24000rpm (spindle speed) - 8PCS
Collet SizeER20
Tool Diameter Range 3.175 ~ 12.7mm (1/8" ~ 1/2")
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveYaskawa servo - 850 watts
Driver Yaskawa
Fast Travel Speed30,000mm/min
Max. Carving Speed12,000mm/min
CNC ControllerHand-held type, RichAuto AutoNow-A11
X Axis TransmissionHelical rack and pinion, belt-driven gear case
Y Axis TransmissionHelical rack and pinion, belt-driven gear case
Z Axis TransmissionRolling ballscrew, 25mm
X Linear Guides Original PMI, square type, 25mm
Y Linear GuidesOriginal PMI, square type, 25mm
Z Linear GuidesOriginal PMI, square type, 25mm
Inverter 2.2kw, Fuling brand - 8PCS
Communication CommandG code
Compatible CAM SoftwareArtCAM, Aspire, UcanCAM, Type 3, JD Paint, UG, MasterCAM
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for whole machine
Workpiece Clamping WayBy clamps
Lubrication SystemVolumetric Central lubricating, auto type
Working PowerAC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph)
Max. Power Consumption25KW
Net Weight 1,700KGS
Gross Weight1,800KGS
Package WaySKD on Plywood Case (Semi Knocked-down)
Package Dimension3700x2250x2250mm(19.00CBM approximately)


FAQ Concerning Eight Spindle CNC Wood Engraving Machine EA-2030MS8

Q: What Kind of Warranty Do You Offer for This Eight Head Wood Carving CNC Machine?

A: It's a 12-months warranty since the shipping date. Under warranty, you enjoy free replacement for any broken parts except Vulnerable parts. After that, we provide you free online support or customer service as well; for spare parts, it will be charged on basic of raw materials'cost.

Q: Will You Guide Us How to Assemble the Gantry Back Once the Wood Design Machine Arrived?

A: Yes, for sure. Detailed guide tutorials for this job will be provided to you from us; furthermore, we will guide you online by live chat if you have any questions.

Q: What Is the Lead Time for This CNC Machine Wood Carving?

A: It is usually 15 to 20 business days on receipt of deposit.
