Woodworking Multi Head CNC Router With 10 Spindles

Model: EA-3030MS10

Category: Multi Head CNC Router

Brand: EagleTec CNC Woodworking Multi Head CNC Router With 10 Spindles

Condition: New Condition

Reference Price: USD19500 / SET

Price Range: USD17000 to USD21500 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 2600KGS

Package Dimension: 3800*2150*2250mm (19.00CBM Approx)

H.S. Code: 84659900.00

Recommendation: Woodworking Multi Head CNC Router With 10 Spindles4.8 /5 based on 28 reviews


PRODUCT DESCRIPTION

Summary

EA-3030MS10 is a multiple head cnc router that is dedicated to woodworking jobs in European-style furniture production. “Woodworking” here primarily refers to wood-engraving. You probably know that woodcarving is a time-consuming job; Generally speaking, depending on the size and complexity of the pattern, it takes from a few hours to a dozen hours, or even more than twenty hours. Therefore, if we can engrave more pieces at a time, it will increase production output largely. The 10 spindle cnc router machine here is designed for the exact application purpose. When ten spindles work synchronously, you can carve 10 pieces in one working cycle as maximum. Woodworking multi head cnc router with 10 spindles for sale at a good price now!


Also, looking for a 4 axis machine? Please check 4 axis multi head cnc router machine with rotary

Other similar machines you can compare: cnc wood carving machine with 8 spindle


woodworking multi head cnc router machine with 10-spindle on the floor

Ten Spindle Synchronous Engraving Demo

This video demonstrates the 10 spindles of the machine work synchronously. By working this way, we will get 10 pieces of the finished job at a time. Enjoy!


The Unique Design of This Woodworking Multi Head 10-Spindle CNC Router Machine

For such a giant machine whose working size is 3000x3000mm (10’x10’), we should have a proper loading solution for it. The length and width of the machine bed greatly exceed the size of the container door. Based on the bed size, it is impossible to load it as a whole. As a corresponding solution, we adopted a split design for the bed and divided it into two from the middle. In this way, after the bed is disassembled into two parts, it can be loaded into the container very well. For your information, after disassembled, it looks like this:

the 10 head cnc router table was disassembled into 2 parts

It can also be seen from the picture that we have designed 9 mounting base surfaces for the bed, and all the surfaces are precision-milled through a high-precision 5-axis metal machining center to minimize the assembly errors of the machine. The technics are vital to machine performance.

When the machine is well assembled, it looks like this:

10 spindle multi head cnc router well assembled

Q: Does the Split Design Have A Negative Impact on Machine Accuracy?

A: That depends. If using the most advanced technics from manufacture to assembly, there is no need to worry about this. For instance, all mounting base faces and holes are finish milled by top-level cnc metal machining center. If the machine is built with such technics, you can rest assured of the accuracy and performance of it.

multi head ten spindle cnc router ready for shipping

10-Spindle Multi Head CNC Router Specs

• There are ten pieces of water-cooled spindles; they enable us to get 10 pieces of jobs at a time as maximum. When all heads work synchronously, each one can get a working size of 300x3000mm; if 5 heads work only, the working size of each would be 600 ×3000mm; if 2 heads work, then each one’s working size would reach to 1500×3000mm. Therefore, you can choose to use different numbers of machine heads for processing according to the size of the workpiece. Each head has an individual on/off button to control its start and stop.

woodworking multi head cnc router with 10 spindles assembled

• The spindle holder is the one with height adjustable function. As we know, when setting the Z-axis zero point for multiple heads, it is not easy to get each router bit at the same height. With the exact height-adjustable spindle holders, we can easily adjust them to a uniform height.

spindle mounted with height adjustable holder

Q: Water Cooling VS Air Cooling, Which One Is Better for Multi Head CNC Router Carving Machine?

A: Water cooling spindle is prior to air cooling one for multiple head cnc router. Here are the reasons:

(1) Engraving job is time-consuming; water cooling spindle has a smaller temperature rise than air cooling spindle after long time run. From this perspective, water cooling is much better for a long time working.

(2) The water cooling spindle is quieter than air cooling one. Compared with 10 air-cooled spindles, the noise of 10 water-cooled is much smaller.


• The Z-axis has a dual pneumatic counter-balance cylinder to allow very fast and accurate Z-axis positioning. Fast and precise with servo motors, quiet operation. Further, the motors are very smooth running and have very good acceleration and deceleration characters. The Z-axis is driven by a hardened Taiwan rolling antibacklash ball screw.

• The control hardware is WEIHONG Lamdba-3S; software is NcStudio. The electronic cabinet can get the whole computer set accommodated there.

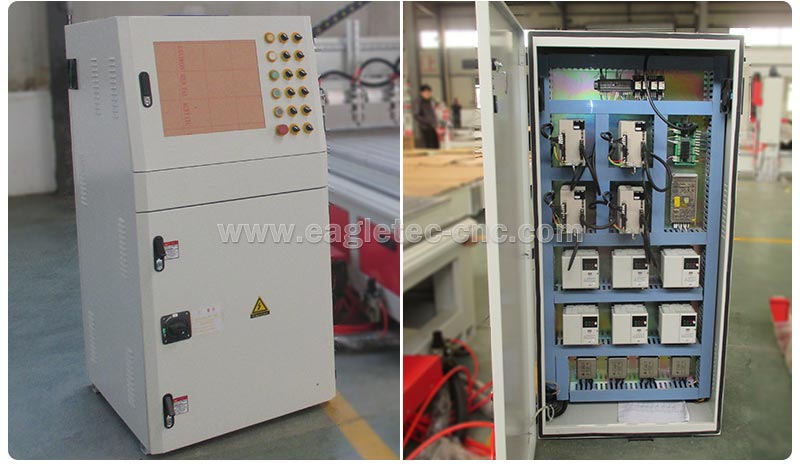

individual electronic cabinet with components mounted inside

• The X and Y axis motion is via a helical rack and pinion drive, which is hardened for extremely long life and ground for very good accuracy.

Multi Head Ten Spindle CNC Router Application

Applicable Industry

It is ideal for mass wood engraving jobs. So, it is always applied to furniture plants.

european furniture designs complete by 10 spindle multi head cnc router

Materials

Wood, Acrylic, MDF, ACM, PVC, Foam.

woodworking multi head cnc router with 10 spindle under assembly

Quick Details

• Bed Size 3000x3000mm (10’x10’)

• Water cooling spindle motor 2.2KW – 10PCS

• Heavy-duty split-design machine base

• WEIHONG Lambda-3S CNC controller

• Yaskawa Servo Motors

•• Original Taiwan PMI square type linear guides and bearing – size 25mm

• Individual control cabinet

• Central lubrication system

Technical Parameter

Model No.EA-3030MS10
TypeMultiple Head Spindle CNC Router
Machine Head QtyOne
Spindle QtyTen
Axis Quantity Three
Machine BaseSplit-design, Heavy-duty, finish by CNC machining center
Working TableAluminum Profile Flat Table
Working Bed Size3000x3000mm (10ft x 10ft)
Z-Axis Stroke11.8in ( 300mm )
Max. Feed Height11.8in ( 300mm )
Electric Spindle Water cooling, 2.2Kw, 24000rpm - 10PCS
Collet SizeER20
Tool Diameter Range 3.175 ~ 12.7mm (1/8“ ~ 1/2”)
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveYaskawa servo - 850 watts
Driver Yaskawa
Fast Travel Speed30,000mm/min
Max. Carving Speed12,000mm/min
CNC ControllerWEIHONG Lambda-3S (hardware)
CNC SoftwareNcStudio V8 (Genuine)
X-Axis TransmissionHelical rack and pinion, belt-driven gear case
Y-Axis TransmissionHelical rack and pinion, belt-driven gear case
Z-Axis TransmissionRolling ballscrew, 25mm
X Linear Guides Original PMI, square type, 25mm
Y Linear GuidesOriginal PMI, square type, 25mm
Z Linear GuidesOriginal PMI, square type, 25mm
Inverter 2.2kw - 10PCS
Communication CommandG code
Compatible Programming SoftwareArtCAM, Aspire, UcanCAM, Type 3, JD Paint MasterCAM
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole machine
Workpiece Clamping WayBy clamps
Lubrication SystemVolumetric Central lubricating, auto type
Working PowerAC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph)
Max. Power Consumption30KW
Net Weight 2,500KGS
Gross Weight2,600KGS
Package WaySKD on Plywood Case (Semi Knocked-down)
Package Dimension3800x2150x2250mm(19.00CBM approximately)


FAQ Concerning Ten Spindle Multi Head CNC Router EA-3030MS10

Q: What Kind of Warranty Do You Offer for This Ten-Spindle CNC Router?

A: It’s a 12-months warranty since the departure. Under warranty, you enjoy free replacement for any broken parts except Vulnerable parts. After that, we provide you free online support as well; for spare parts, it will be charged on basis of raw materials’ cost.

Q: Will You Guide Us How to Assemble Once the Machine Arrived?

A: Of course, yes. Detailed guide tutorials for the exact job will be provided to you from us; furthermore, we will guide you online by live chat if you have any questions.

Q: What Is the Lead Time for This Machine?

A: It is 15 to 20 business days on receipt of deposit.


If you like this machine, click to contact now!
