CNC 3D Wood Carving Machine With 4 Axis Simultaneous Rotary

Model: EA-4R3022MS8

Category: 4 Axis CNC Router

Brand: EagleTec CNC 4 Axis 3D CNC Wood Carving Machine with Rotary Axis

Condition: New Condition

Reference Price: USD19980 / SET

Price Range: USD18000 to USD23500 / SET as per different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Put order into production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 2050KGS

Package Dimension: 3930*2250*2230mm (19.71CBM Approx.)

H.S. Code: 84659900.00

Recommendation: 4 Axis 3D CNC Wood Carving Machine with Rotary Axis4.8 /5 based on 125 reviews


Machine Summary

As a productive 4 axis cnc 3d wood carving machine (also known as 4 axis cnc router), 4R3022MS8 has eight rotary operating units with eight electric spindle motors. So, you will get eight pieces of 3D carved projects in one working cycle. Working size is 220mm [8.66”] x 3000mm [118”] (Diameter x Length) per rotary axis. In addition to 3D carving, the machine comes with a removable flat work platform, which is used for flat engraving. Therefore, this is a device suitable for both 3D and flat relief engraving applications. CNC 3D wood engraving machine for sale with 4-axis simultaneous rotary at a discount price now!


Similar machines you might be interested in: 4 axis rotary cnc router 3015RMS12

If you are looking for a machine with a swinging spindle, please check out here: best 4 axis cnc router with automatic tool changer

white 4 axis cnc wood carving machine without flatbed placed on the floor

CNC 3D Carving Demo: Make Curved Queen Anne Legs with EagleTec 3D Wood CNC Machine

The fabrication of solid wood furniture cabriole legs (also known as Queen Anne legs), including dining table legs, chair legs, sofa legs, etc., is one of the brief applications of this machine—consequently, users who produce Queen Anne style furniture like to purchase such devices. The video demonstrates the entire process of creating curved furniture legs with a 3d wood carving cnc machine from beginning to end. Please enjoy it!

Application of Best 3D Wood Carving Machine

Applicable Field of 4 Axis 3D Wood Rotary Machine

This cnc router is ideal for Queen Anne-style furniture, European-style furniture, the classical furniture manufacturing industry, and sculpture, Carved corbels, cabriole, statue, and buddha crafts fabrication.

Applied Materials of CNC Rotary Carving Machine

Solid Wood, MDF, Plywood, Solid Surface, White expanded PVC, HDPE, PVC, Foam, and more.

4 axis rotary cnc wood carving machine for sale

Features of CNC 3D Wood Carving Machine for Sale

• It is built with 15 outstanding technics, not simple hand-finished work!

• The machine has eight 3D carving operating units driven by one AC servo motor (Delta brand 850 watts). The transmission mode is gear and belt transmission. The clamping of the workpiece is through a headstock and tailstock system. The headstock is fixed at the rear of the machine base; the tailstock is mounted on a mobile carriage to clamp workpieces of different lengths. Another advantage of this design is that when we need to do plane work, we can push the tailstock to the back of the machine, freeing up the space to install the flatbed for flat engraving.

operating units with servo motor and belts on the 4 axis 3d cnc wood carving machine

• The flat platform can be installed or removed according to production needs.

the removable flat working bed on the floor

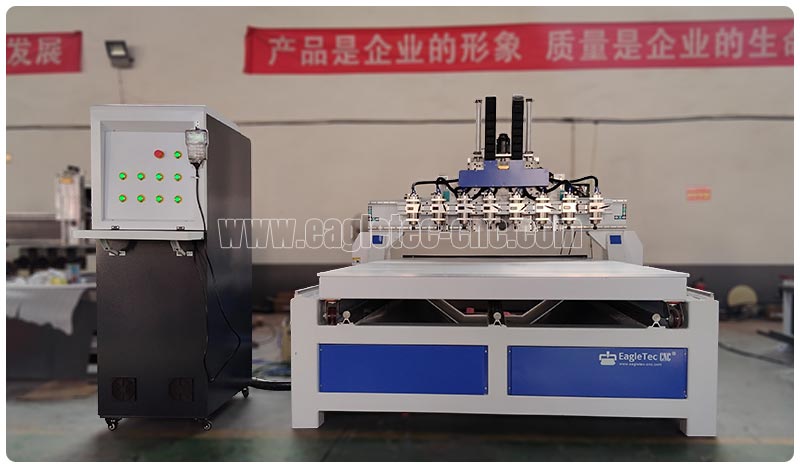

4 axis cnc wood 3d carving machine with the flat working bed installed

• Z-axis Transmission is via coupler, which is more durable and reliable than the timing belt.

coupler transmission mechanism on the z axis of cnc 3d wood carving machine

• The Z-axis has a dual pneumatic counter-balance cylinder to allow high-speed and accurate Z-axis positioning.

dual pneumatic counter-balance cylinder on the 4 axis 3d cnc rotary carving machine

• The cnc 3d wood carving machine is driven by SIX sets of YASKAWA servo systems, quiet and precise operation. It also has good acceleration and deceleration performance.

YASKAWA servo system on the Y-axis of the EagleTec 4 axis cnc wood engraving machine

• The machine has 8 sets of 2.2kw water-cooled spindle motors. To make it easier for the operator to set the workpiece origin, they are fixed on the machine with height-adjustable spindle holders.

cnc wood carving machine 3d with 8 sets of 2.2kw water cooled spindles

• To maximize the reliability of signal control and machine operation, each spindle is driven by an independent frequency converter.

8 sets of converter in the electric cabinet of the 4 axis rotary wood carving machine

• The 4R3022MS8 is equipped with a 4-axis simultaneous CNC control system. The model is WEIHONG 95A-4A; it is a real 4-axis simultaneous cnc controller. The system comes with an MPG (manual pulse generator) to facilitate the setup of the workpiece origin point.

• An independent electrical control cabinet suitable for accommodating a computer.

independent electrical control cabinet stand next to the 4 axis cnc wood rotary machine

• The machine is equipped with a funnel-type receiving chute to facilitate the cleaning of sawdust.

funnel-type receiving chute for 4 axis cnc engraving machine

• To provide users with convenience in later maintenance, the CNC 3D wood carver machine is equipped with an automatic lubricating system; users only need to set the time interval between two lubrication operations, and the system will regularly lubricate the precision transmission parts of the machine.

automatic lubricator mounted on the beam

Optional Device for This CNC 3D WOOD Carving Machine

• Computer Set

How EagleTec Do Packing for the 3D Wood Carving CNC Machine

4 axis cnc rotary wood carving machine packing and loading process

• The whole machine is packed in SKD. The gantry should be taken down to get the whole package accommodated in a container.

• For the whole machine, we usually use wrapping material to wrap it up as inner packing. Then pack the entire equipment into a plywood case with a steel pallet. It is safe and seaworthy packaging.

3d cnc router for woodworking with 4th axis rotary table and 8 heads

Technical Parameter of 4 Axis CNC 3D Wood Carver Machine

Model No.EA-4R3022MS8
Type4 Axis CNC Router (Rotary Axis)
Motion Head QtyOne
Max.Simultaneous Axis Qty Four
Spindle Qty8
Machine BaseHeavy-duty, finish by CNC machining center
Rotary Operating UnitSpike style with mobile carriage on the tailstock
Operating Unit Qty8
Rotary Working Size220mm D x 3000mm L (8.66" D x 118" L) per Rotary
Rotational Table ClampingBy head and tail stock system
Flat Working Bed Aluminum Profile with PVC
Flatbed Size1800x3000mm
Flatbed ClampingBy T-slot clamps
Electric Spindle Water-cooled, 2.2Kw, 24000rpm - 8 Sets
Collet SizeER20
Acceptable Tool Diameter 3.175 ~ 12.7mm (1/8" ~ 1/2”)
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveDelta servo 850 watts - 5 SETS
Driver Delta servo
Fast Travel Speed30,000mm/min
Max. Carving Speed12,000mm/min
CNC ControllerWEIHONG 95A-4A 4 Axis Controller (hardware) with MPG
CNC SoftwareNcStudio V8 (Genuine)
X-Axis TransmissionHelical rack and pinion, belt-driven gear case
Y-Axis TransmissionHelical rack and pinion, belt-driven gear case
Z-Axis TransmissionRolling ballscrew, 25mm
X Linear Guides Original PMI, square type, 25mm
Y Linear GuidesOriginal PMI, square type, 25mm
Z Linear GuidesOriginal PMI, square type, 25mm
Inverter 2.2kw - 8PCS
Communication CommandG code (***.nc)
Compatible Programming SoftwareArtCAM, Aspire, PowerMILL
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole machine
Lubrication SystemVolumetric Central lubricating, auto type
Working PowerAC380V/50Hz, 3Ph / AC220V/60Hz, 3Ph, or Make to order
Max. Power Consumption25KW
Net Weight 1,950KGS
Gross Weight2,050KGS
Package WayWrapping materials and Steel pallet
Package Dimension3930*2250*2230mm (19.71CBM Approx.)

FAQs about 3D CNC Wood Carving Machine for Woodworking With 4th Rotary Table and 8 Heads

Q: Is the 4th rotary axis of this 3D CNC wood machine simultaneous or indexed?

A: It is simultaneous, not index (with the index one, you have to disable X instead of making the rotary axis able to work). So, this cnc 3d carving machine is a real 4 axis cnc router machine. For more information, please read here.

Q: What Is the Software for This Wood 3D CNC Machine?

A: As the 4-axis models are all in STL format (***.stl), we use PowerMILL as the toolpath programming software. Of course, any other software can be used as the machine's program as long as it can edit STL files. If you want to learn how to use PowerMILL to make programming, please visit our YouTube channel, where there are detailed video tutorials concerning this.

Very important!!! For your information, we are able to provide you the software with a post-processor for free.

Q: What Is the Lead Time for the 4 Axis CNC Wood Carving Machine 3D?

A: The lead time is 20 business days from the day the deposit is received.

Q: What is the Warranty Do You Offer for the Best 3D CNC Wood Carving Machine with Rotary?

A: It comes with a one-year limited warranty. Under warranty, you would enjoy free replacement for any broken parts except the Vulnerable parts. After the warranty expires, we provide you with constant free online assistance and support; it will only be charged based on raw materials cost for defective parts replacement.


If you like the best 3d wood carving machine for sale here, please inquire now for a free quote.
