Arch Type Router Bit 1509 For CNC Wood Lathe Slot Broaching

Name: Arch Type Router Bit 1509 For CNC Wood Lathe Slot Broaching
Brand: EagleTec
SKU: 1000000215
Price: 6.50 USD
Availability: InStock
Rating: 4.5 (31 reviews)

Model: 1509

Category: CNC Wood Lathe

Brand: EagleTec Arch Type Router Bit 1509 For CNC Wood Lathe Slot Broaching

Condition: New Condition

Reference Price: USD6.50 / Piece

MOQ: 5 Pieces

Price Range: USD6.0 to USD23.6 as per different size

Supply Ability: 500 Pieces Monthly

Availability: 50 Pieces ready for shipment (In Stock)

Payment Method: T/T, Western Union, Money Gram, PayPal

Popularity: Arch Type Router Bit 1509 For CNC Wood Lathe Slot Broaching 4.5 based on 5.0

Inquire Now Next Product

PRODUCT DESCRIPTION

Brief

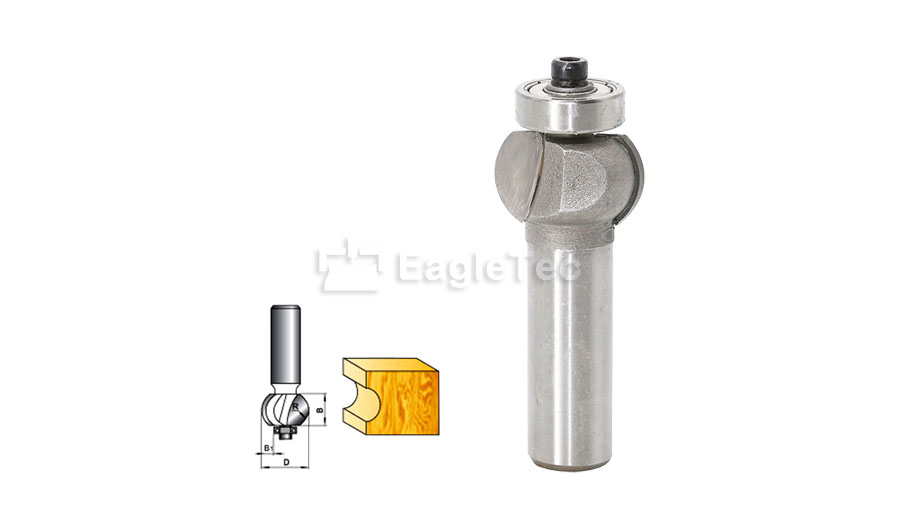

The cutter tool for sale is arch type router bit Model.1509, which is designed with top bearing guided, the main application is for slot broaching jobs on cnc wood turning lathe. It is one necessary tool for the computerized wood lathe. Shank size is 12.7mm, and have more options on the blade size.

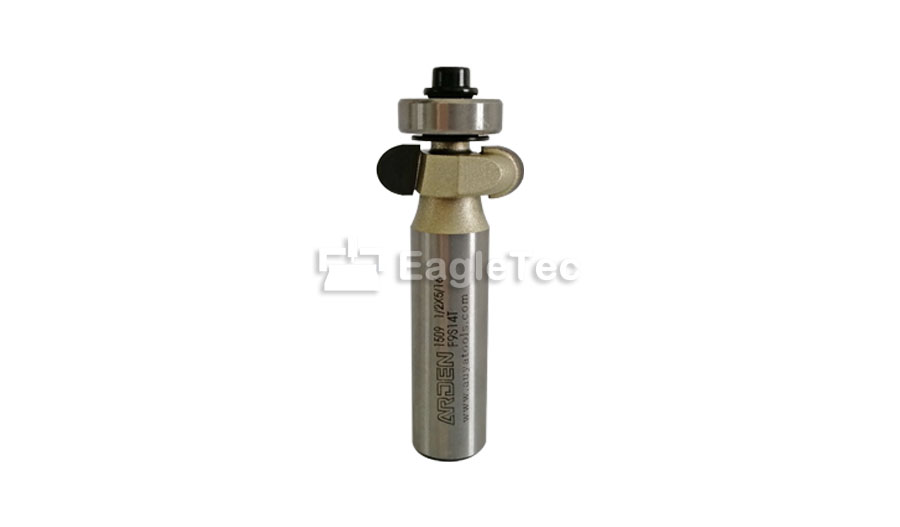

arch type router bit 1509 - photo

Video Demo: How The Arch Type Router Bit Works on CNC Wood Lathe

The tool used in the video is the exact one here.

Application

Suitable Machinery

CNC lathe for woodworking

Suitable Materials

Arch type router bit is good for all kinds of wood.

Suitable Jobs

Slot broaching, fluting

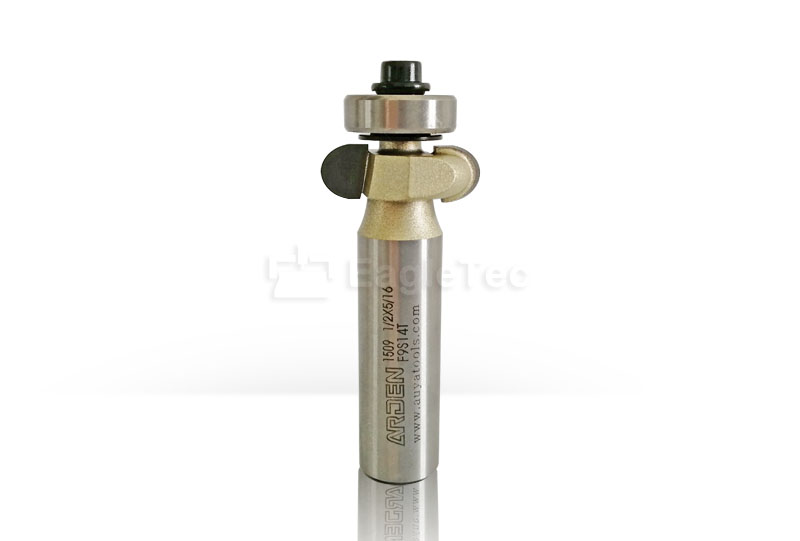

eagletec arch type router bit - photo

Full Size Available of EagleTec Arch Type Router Bit

(SHK*Width): 1/2x1/4, 1/2x3/8, 1/2x1/2, 1/2x5/8, 1/2x3/4, 1/2x7/8, 1/2x1, 1/2x1-1/4, 1/2x1-3/8, 1/2x1-1/2, 1/2x1-5/8

Full Models Available

A1509188, A1509208, A1509218, A1509228, A1509238, A1509248, A1509258, A1509278, A1509288, A1509298, A1509308

Features of Arch Type Router Bits with Top Bearing

• Arch type cutter is one of the ball bearing router bits.

• Ball bearing guided on the top.

• Via high frequency welding process.

• Ceratizit world's top solid carbide, 15% harder than other brands

• Teflon spray process, high temperature resistance, corrosion resistance, wear resistance

Top Bearing Guided Arch Type Router Bits Specification

• Tool type: arch type, radius cut

• Guide type: top bearing guided

• Raw material: CERATIZIT world's top solid carbide

• Tool grade: AAA

• Coating: with Teflon coating

• SHK: 12.7mm (1/2)

• Blade diameter: 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-5/8

• Materials good for: all types of wood

• Application: slot broaching

• Suitable machinery: cnc wood lathe

• Package detail: one piece in one plastic cutter box, then packed into carton with foam protection.

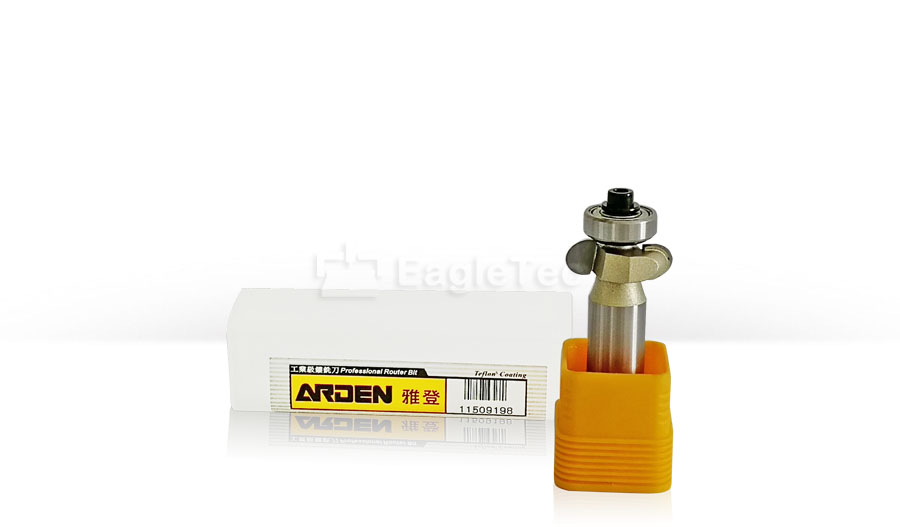

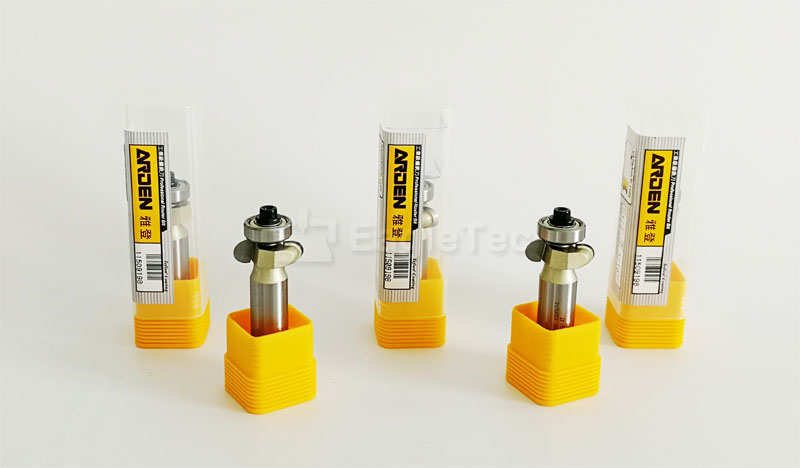

arch type router bit in packing case - photo

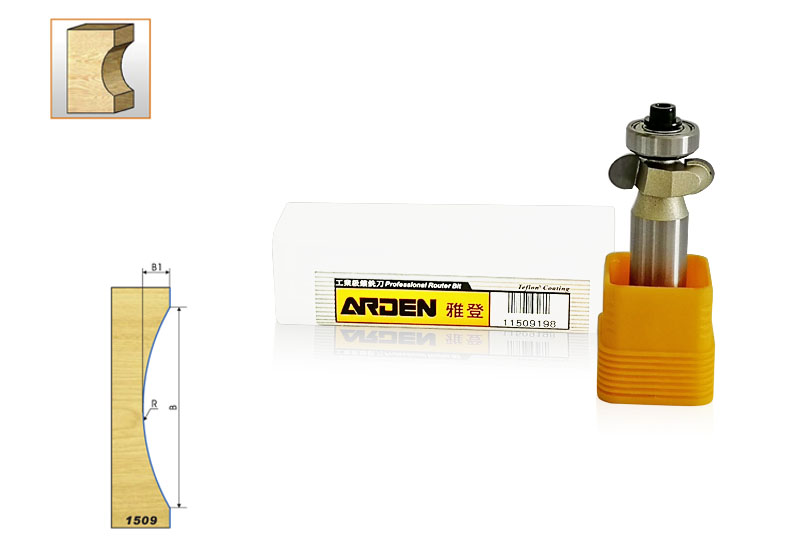

Parameter of Arch Type Router Bit

Model No.	Size(in)	D(mm)	R(mm)	B(mm)	B1（mm）
A1509188	1/2*1/4	20.88	3.27	6.35	2.50
A1509208	1/2*3/8	23.08	4.95	9.52	3.60
A1509218	1/2*1/2	23.08	7.40	12.70	3.60
A1509228	1/2*5/8	24.88	9.27	15.90	4.50
A1509238	1/2*3/4	26.28	11.32	19.05	5.20
A1509248	1/2*7/8	27.28	13.66	22.20	5.70
A1509258	1/2*1	27.28	17.00	25.40	5.70
A1509278	1/2*1-1/4	29.48	21.93	31.75	6.80
A1509288	1/2*1-3/8	29.48	25.79	34.90	6.80
A1509298	1/2*1-1/2	29.48	30.08	38.10	6.80
A1509308	1/2*1-5/8	29.48	34.71	41.27	6.80

Please contact us now if any interest.
