Best Fiber Optic Laser Cutter for Metal Sheet and Pipe

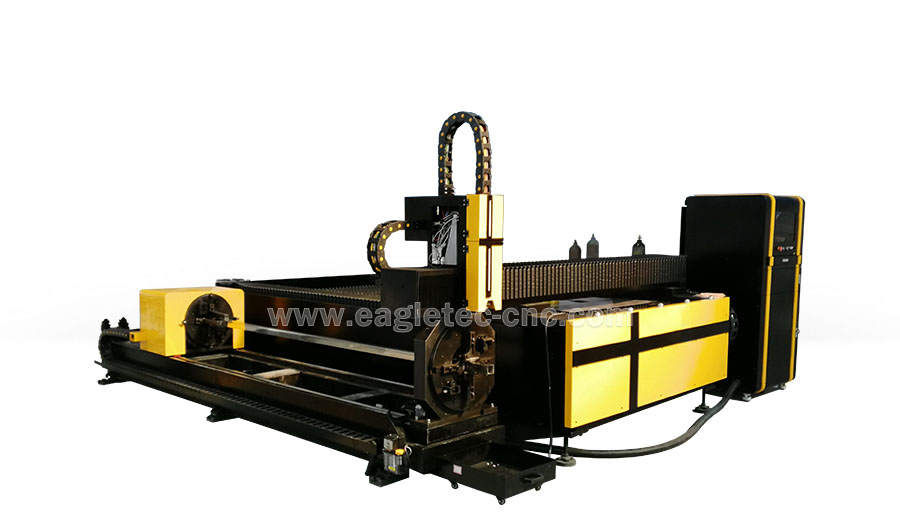

Design Illustration Of 2 In 1 Fiber Optic Laser Cutter Machine

The 2 in 1 design here specifically refers to the design that the sheet metal working platform and the pipe (or tube) cutting rotary table are integrated into one machine construction. It enables the metal laser cutter to be a dual-application one, which is ideal for sheet and pipe metalworking purposes. The sawtooth bed serves as the sheet cutting bed and the rotary as the pipe cutting table.

Q: What Shapes and sizes of Metal Pipes Can This Machine Work With?

A: Since the fibre optic laser cutter is equipped with a true 4-axis simultaneous laser cutting system, it can work with round pipes, square tubes, and rectangular tubes well.

Come to the size; the maximum cutting scope is 200x3000mm (7.87" D x 118" L); it means the tubes within the exact size here are proper for the machine. For a round tube, it is easy to understand what the diameter refers to.

Q: If it is a square tube, what exactly is the diameter here?

A: Well, for a square or rectangular tube, it refers to the diagonal length of the square or rectangle.

Q: If the Fiber Optic Laser Cutting Machine with a 3-Axis Controller, What Shape of Tube Can It Cut?

A: 3 axis controller refers to a system with a maximum simultaneous axis quantity of three. Such being the case, it is capable of cutting round pipes only. This is also the brief difference between the 3-axis and 4-axis control systems in laser cutting utilization.

What Thickness Can This 1000W Fiber Laser Cutting Machine Cut Through?

The fiber optic laser cutting machine here is equipped with a 1000 watts laser source. This power can cut through 10mm carbon steel, 4mm stainless steel, 3mm brass, and 2mm aluminum as maximum. For your information, the cutting capacity here refers to the quality cut. That means you will get a nice and clean cutting edge.

The higher the power, the stronger the cutting capacity and the faster the cutting speed. It can be upgraded to 1500W / 2000W / 3300W / 4000W as per your request.

Uses of Two in One Fibre Optic Laser Cutting Machines

Materials Good For Sheet and Pipe Laser Cutter

Stainless Steel, Carbon Steel, Brass, Aluminum.

Job Application of Best 3015 Laser Cutter

The fiber optic cutting machine here is good at cutting diverse patterns, shapes, and texts with sheets and pipe metals.

Exquisite Configuration Details of Metal Sheet and Pipe Fiber Laser Cutter

• Dual utilization design. A sawtooth flat working bed is combined with a rotary for tube materials working purpose. Below is the photo we took while the machine was being assembled. It is almost finished.

• The rotary has headstock and tailstock. And its headstock is driven by a Yaskawa servo motor, which is powerful with big torque, high speed, exquisite acceleration, and deceleration, smooth and quiet. The transmission mechanism is a precise planetary gear case, which is superior to a regular belt-driven gear case on durability and accuracy.

• Besides the rotary unit, the whole fiber optic cutting system is driven by the Yaskawa AC servo. It enables the machine to cut at a rapid speed of 30,000mm/min. And it is a fully maintenance-free system.

• Equipped fiber laser generator is brand – JPT. Power is 1000 watts. Except for it, more options are available, including Raycus and IPG. Maintenance-free.

Q: Can this fiber optic cutting machine work with auxiliary gas?

A: Yes, definitely. In terms of gas circuit, we have fully considered the requirement of auxiliary gas cutting. Therefore, an on / off control device for the gas circuit is added to the machine. Additionally, the inlet hose is ready there. In this way, simply to connect the air source to the 1kw laser cutter, you'll achieve gas-assisted cutting. The gas can be compressed air, oxygen, or nitrogen. To learn the difference between the three, please check out here fiber laser metal cutting machines. There is a detailed interpretation concerning the exact point.

• EagleTec dedicated laser cutting head and nozzles.

• Independent floor-stand control and electronics cabinet; we designed an embedded system control panel to facilitate your operation. The cabinet comes with rubber seals and a fully enclosed design, which avoids the pollution of important components by slag and dust, thereby guarantees the reliability of the metal sheet and pipe fiber laser cutter's performance.

• Cypcut fiber laser cutting system with MPG - an acronym for “manual pulse generator,” also known as the hand-held controller. Both the computer system and laser cutting software is in English.

Brief Configuration Interpretation of This Fiber Optic Laser Cutting System

• Sheet cutting size 1500x3000mm (59”x118”)

• Tube cutting size 200x3000mm (7.87" D x 118" L)

• 1000W JPT fiber optic laser generator with a lifespan of 100,000 hours

• AC Servo system – Yaskawa for the whole machine

• Cypcut laser cutting control hardware and software

• Original precise PMI square linear guides – Made in Taiwan

• S&A Chiller

• Exhaust fan included

Technical Parameter of Affordable Price Fibre Optic Laser Cutter Machines

FAQ Regarding The Dual Function 1KW Laser Cutter with Fiber Optic Source System

Are the schematics or drawings available during the machine setup?

Yes, it is. All essential documents, including drawings and schematics, are provided to you for machine setup. They are in English.

What language are the software, system, and related documents provided for the 1kw fiber laser cutting machine here?

All are in English. The Windows system coming with the computer is in English; the laser cutting software is in English; the tutorials, video guide, and other documents are all in English.

What daily maintenance does this fiber optic laser cutter require?

Since the fiber laser source/generator and servo driving system are maintenance-free, it is simple for daily maintenance. Just take notice of two points, please.

• We should lubricate the linear bearings on time.

• We should take care of the water cooling system (chiller) to ensure that the water temperature is within a reasonable range.

If you like the fiber optic laser cutting machines for sale here, please ask for a free proposal now!
