Model: ET-FL0260T Pro
Category: Fiber Laser Cutter Machine
Brand Name: EagleTec CNC
Condition: New Condition
Laser power options available: 1000/1500/2000/3000/4000/6000 Watts
Reference Price: USD43980 / SET
Price Range: USD33580 to USD62950 / SET per Different Configuration
H.S. Code: 8456110090
Supply Ability: 200 Sets Monthly
Availability: PreOrder - Put into production on receipt of down payment
Payment Method: Bank Transfer
Recommendation:
4.9/5 based on 5 reviews

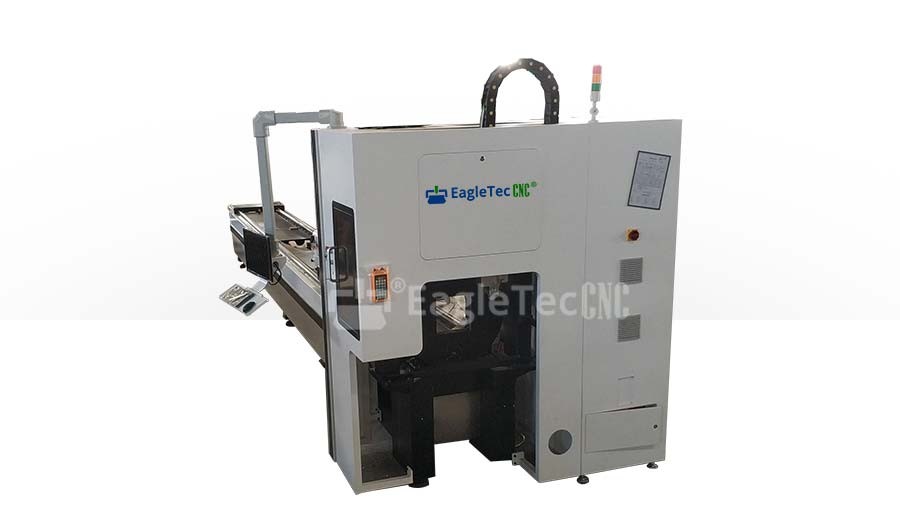

ET-FL0260T Pro is a fiber laser cutter engineered to process shapes cut, cut off, straight cut, angle cut, mitre cut, notch, pierce, and open holes operations of metal tubes. Equipped with pneumatic front and rear chucks, the Max OD (outer diameter) that can fit through this machine could be 165mm, 220mm, 320mm, and 400mm. More options on laser power are also available; you can take 1000W, 1500W, 2000W, 3000W, 4000W, or 6000W as per your production needs. 2024 New fiber laser tube cutter machine for sale at a reasonable price with best tech support now.
If your primary works are cutting intersection lines on mild steel, the EagleTec CNC plasma square tube cutter would be a good fit also.
The working demo includes the following three sections:
0:00 MS U-Channel Cut (mild steel)
1:30 SS Square Tube Cut (stainless steel)
2:08 SS Circular Pipe Cut (stainless steel)
The fiber laser pipe cutter machine is perfect for fabricating kitchenware and household appliances, Autocar, farm machinery, construction machinery, fitness equipment, and more.
Suitable for metal tubes and pipes, including square tubes, rectangle tubes, circular pipes, oval-shaped, L shapes (angle section), U-channels, and more.
• Considering operator safety, a large protection shield is equipped around the working area of the fiber laser cutting head.
• Ray Tools fiber laser head comes with the standard package's cnc metal pipe/tube laser cutting machine.
• The tube laser for sale is equipped with a pneumatic front chuck, which has the function of automatically centering the tube.
• A high-power Yaskawa AC servo motor powers the front chuck, and the reduction mechanism adopts a planetary gearbox.
• The rear chuck is also air-actuated and powered by AC servo motors; the reduction devices equipped are also planetary reducers.
• Several pneumatic rollers serve as auxiliary loading devices of the cnc laser tube cutter. They can be rose or fell as needed.
• Laser source is the branded product JPT. Power is 2000 watts.
• As for the racks and rails, both are original items from Taiwan: PMI linear guides and YYC racks.
• Corresponding to the power of the laser source, we have equipped the laser metal tube cutter machine with an S&A CWFL-2000 chiller.
• Max Tube Size can fit through 220mm x 6000mm, In imperial – 8.66” x 20’ (OD x L)
• Air-actuated front and rear chucks
• JPT Laser source – 2000 watts
• S&A CWFL-2000 chiller
• Raytools BT220 fiber laser cutting head
• FSCUT3000S tube laser cutting system
• Yaskawa AC servo motors & packs with planetary gearboxes (Nidec, or Motoreducer)
• SMC Proportioner
• Original PMI linear guide rails from Taiwan
• Original YYC grinding racks and pinions from Taiwan
• Pneumatic rollers involved
| Machine Model | ET-FL0260T |
| Machine Type | Fiber Laser Cutting Machine |
| Tube Cutting Size | 220mm x 6000mm OD x L (in imperial: 8.66" x 20') |
| More Options on Max OD | 165mm, 320mm, 400mm (in imperial: 6.5", 12.5", 15.7") |
| Laser Type | Fiber Laser |
| Fiber Laser Source | Brand: JPT; 2000W - more options available |
| Laser Cutting Head | Brand: Raytools - Model BT220 |
| Control System | FSCUT3000S dedicated to tube laser cutting machine (Friendess Electronics) |
| Loading Auxiliary Device | Pneumatic rollers |
| Output Power Tunability | 10 ~ 100 (%) |
| Core Fiber | 25 um |
| Laser Beam Quality | 1.3 (M2) |
| Laser Wavelength | 1080nm |
| Output Power Unstability | < 3% |
| Cutting Frequency | 50 ~ 50K (Hz) |
| Cooling Mode | Water cooling |
| Chiller | S&A CWFL-2000 for 2 Kw laser source |
| Motor & Driver | Yaskawa AC servo (Dual drive on Chucks) |
| Reducer | Nidec or Motoreducer |
| Proportioner | SMC |
| Linear Guideway | Original HIWIN/PMI linear guides from Taiwan (Lifespan 8 to 10 years) |
| Transmission | Grinding rack and pinion (brand YYC) from Taiwan |
| Cutting Accuracy | 0.3mm |
| Lubricating System | Automatic central lubrication |
| Programming Software | Cypcut |
| Cutting Gas | Compressed air, oxygen, nitrogen |
| Editable Graphics Extension | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
| Max. Cutting Speed | 30,000mm/min |
| Positioning Accuracy | 0.05mm |
| NA | < 0.06 |
| Fume Extractor | 1.5KW |
| Consumables | Cutting nozzle |
| Operation Temperature | 10 ~ 40 (℃) |
| Humidity | < 70% |
| Storage Temperature | -10 ~ 60 (℃) |
| Working Voltage | 220-240VAC, 50/60Hz, 1 Phase |
| Package Dimension | 1 x 40GP |
| Gross Weight | 3000KGS |
A: We can get this set shipped worldwide by sea. It would be loaded in a 40 feet dry cargo container based on its packing volume. If you could tell us your port of entry, we are pleased to quote the ocean freight for your reference.
A: The whole machine is covered with 24 months limited warranty since the departure date. During the guarantee, you will enjoy free replacement for any broken components, including the laser sources.
If you like the fiber laser tube cutter machine for sale here, please ask for a commercial proposal now.
