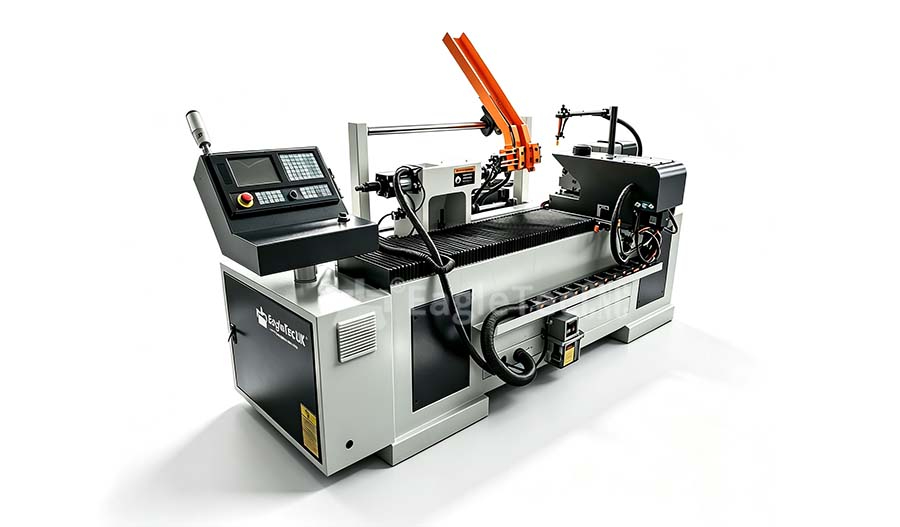

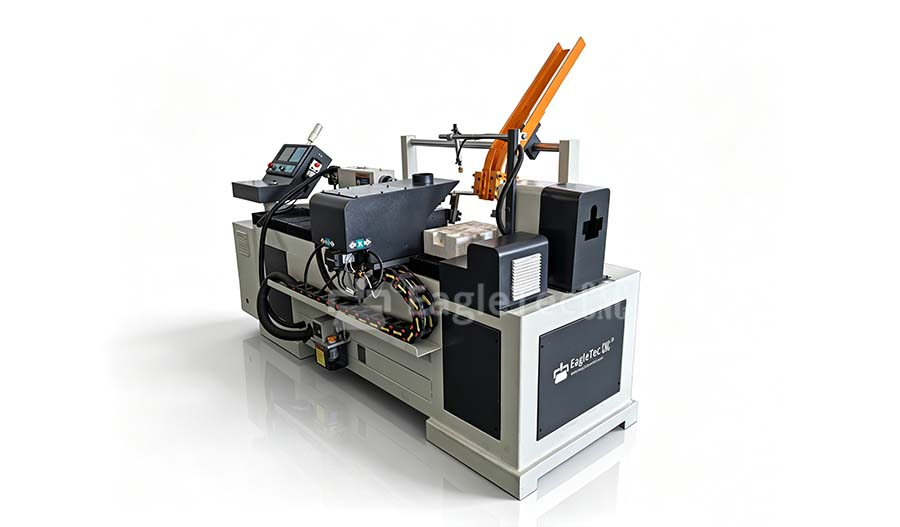

High-Speed CNC Wood Lathe for Furniture Legs

10-Second Furniture Leg Production with a High-Speed CNC Wood Lathe

Watch the ET-7020 complete one cylindrical furniture leg in approximately 10 seconds.

Machining Parameters

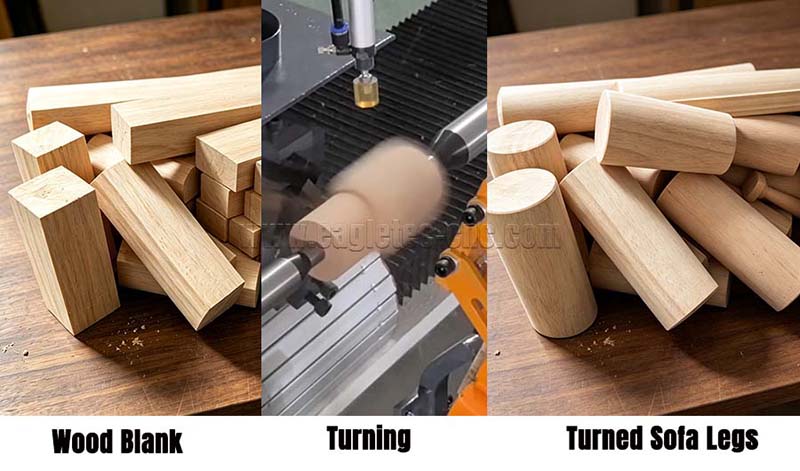

• Wood Blank: 60 × 60 × 145 mm

• Blank Shape: Square

• Finished Shape: Cylindrical Furniture Leg

• Finished Diameter: 57 mm

• Maximum Cutting Depth per Pass: 27.84 mm

• Cutting Feed Rate: 3,000 mm/min

• Spindle Speed: 3,000 rpm

• Machining Time: Approx. 10 seconds/piece

Q: What is the Estimated Monthly Production Output of the ET-7020?

A: The estimated monthly production output of the ET-7020 is 86,400 pieces, based on a 30-day month and 8 hours of operation per day. Actual production output may vary depending on the workpiece size, machining cycle, material, loading conditions and operating schedule.

Q: Is the ET-7020 Suitable for Your Furniture Legs?

Suitable:

✓ Cylindrical furniture legs

✓ Conical furniture legs

✓ Straight turned furniture legs

✓ Sofa legs

✓ Table legs

✓ Chair legs

✓ Other rotationally symmetrical furniture legs

Not the Right Machine For:

× Complex carved furniture legs

× Irregular / non-rotational shapes

× Furniture legs requiring milling or engraving

× Highly decorative 3D profiles

If your furniture legs have a complex profile or require additional milling or carving operations, send us your drawing or sample for evaluation.

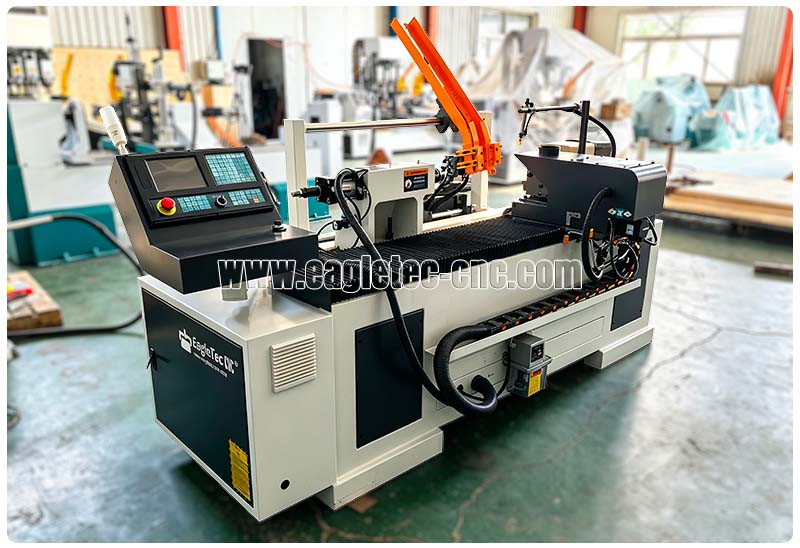

High-Speed CNC Wood Lathe for Faster Production

It brings you advantages like:

Faster Cutting

Designed for high-speed wood turning, the ET-7020 can process furniture legs faster than conventional wood turning machines.

Reduced Machining Time

Faster turning helps shorten the machining time for each workpiece and improves production efficiency.

Higher Production Output

Faster processing combined with automatic loading makes the ET-7020 suitable for repetitive furniture leg production.

CNC Furniture Leg Making Machine Features

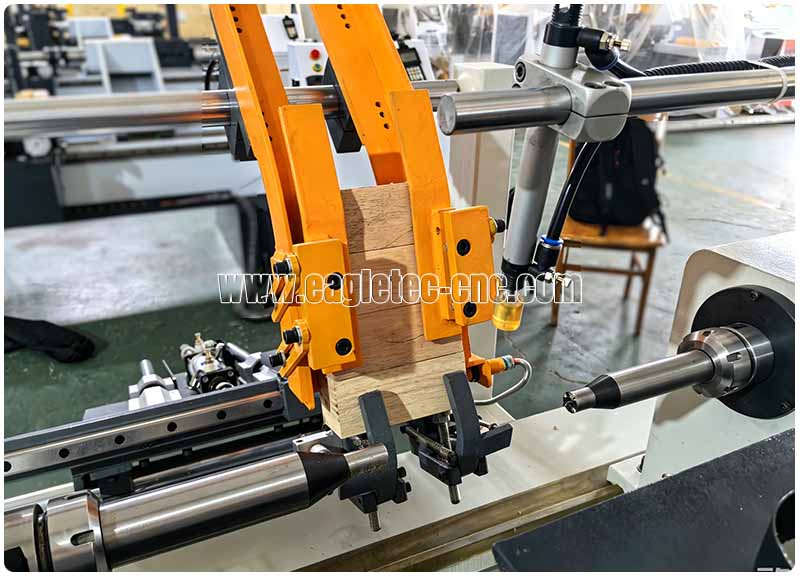

Automatic Loading for Efficient Wood Turning Production

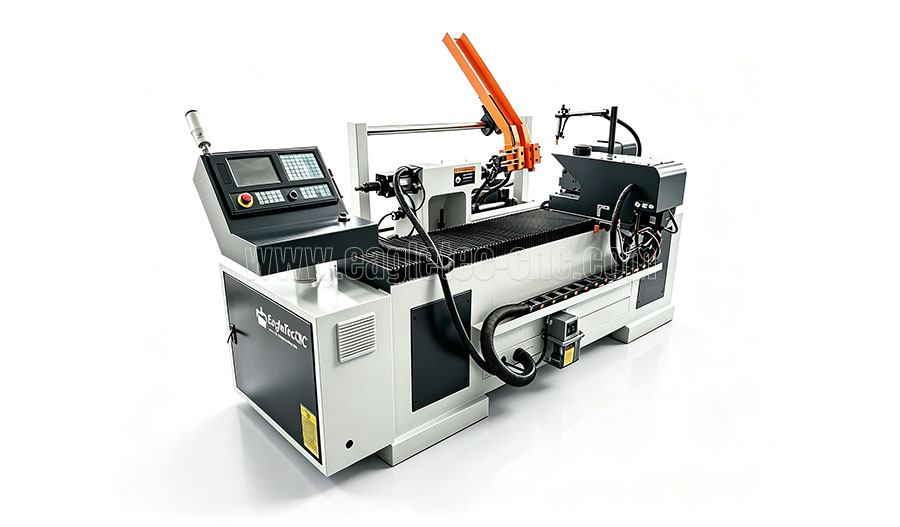

• The ET-7020 features an automatic loading system designed to simplify repetitive wood turning operations. By reducing manual loading and unloading between workpieces, the machine can help improve production efficiency and maintain a more consistent workflow for furniture component manufacturing. This configuration is particularly suitable for manufacturers producing multiple furniture legs and other repeated wooden components.

This brings you 4 benefits:

• Automatic Loading

• Reduced Manual Handling

• Consistent Production Workflow

• Suitable for Repetitive Production

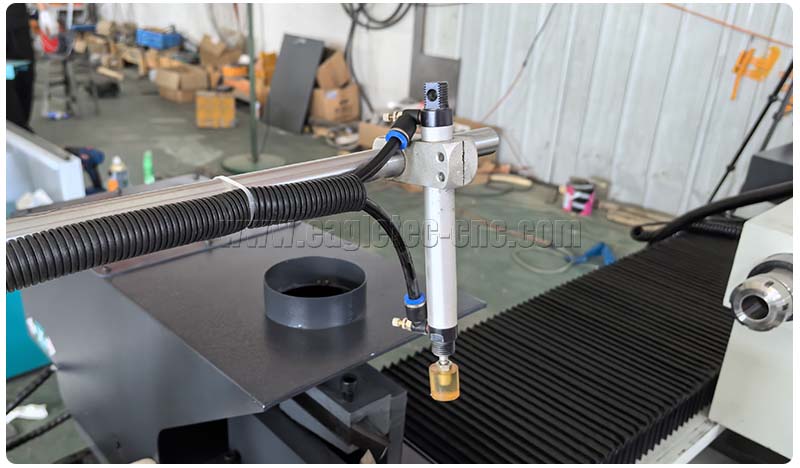

• This small rubber hammer is used in the automatic feeding mechanism to position the wood blank and to knock off the turned workpiece.

• The EA-7020 uses secure center-supported workholding to position the wooden blank during turning. Combined with the automatic loading mechanism, this configuration is designed for stable and repeatable production of rotational wooden components. A drive motor is located at the end of the headstock.

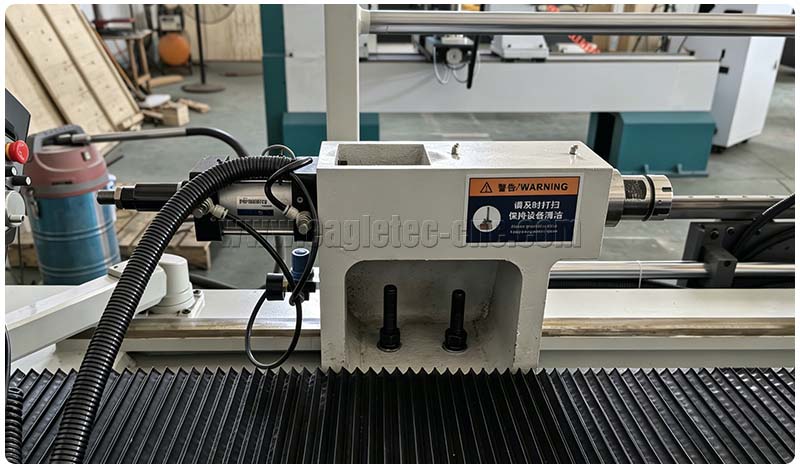

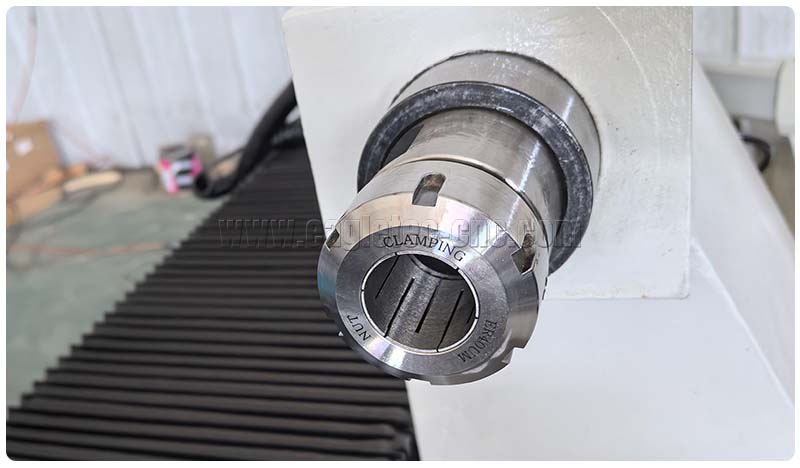

• The dead center on the tailstock is secured using a spindle spring collet mechanism, rather than a standard Morse taper unit.

• A 7.5 kW spindle motor provides the power required for efficient CNC wood turning. High spindle speed up to 3516RPM supports efficient turning of suitable wooden workpieces.

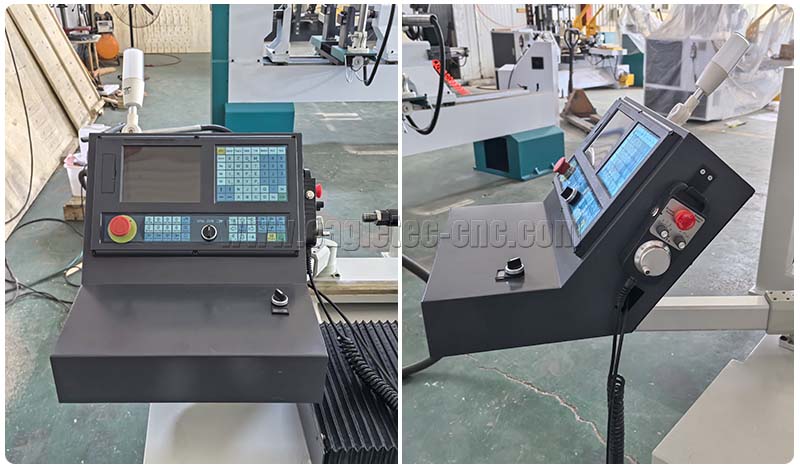

• Its CNC-controlled turning capability allows manufacturers to produce different workpiece profiles while maintaining consistent dimensions across repeated parts.

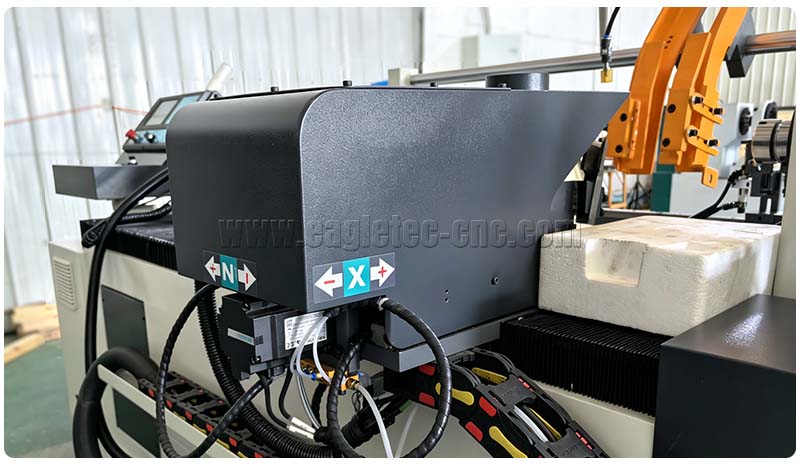

• The profile turning of the workpiece relies on two linear motion axes of the machine: the X-axis moves radially, and the Z-axis moves axially.

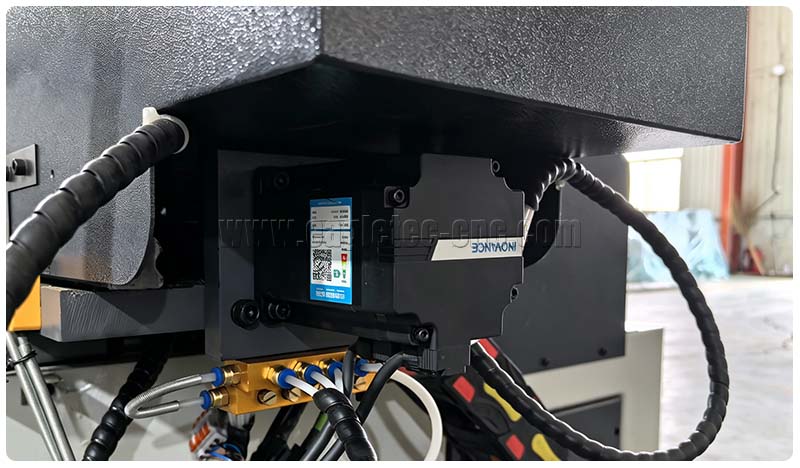

• Two 750 W AC servo motors independently drive the X and Z linear axes, delivering fast, precise and responsive movement for high-speed CNC wood turning.

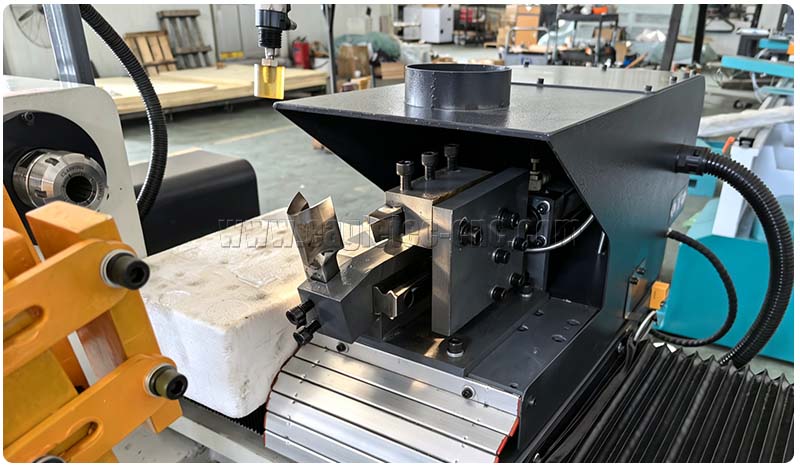

• Equipped with two dedicated cutting tools, the machine automatically switches between them using a pneumatic cylinder, allowing each tool to perform different cutting operations.

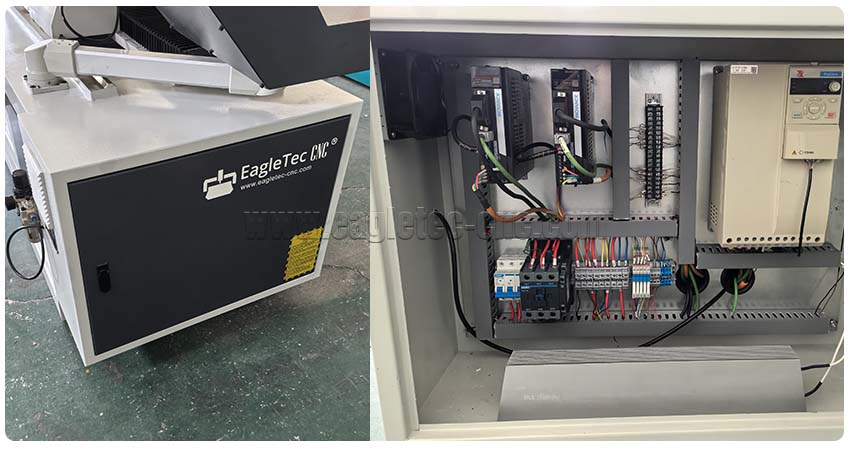

• The electrical cabinet is situated on one side of the lathe and contains the drive units for the linear axes and the spindle. The door seals tightly when closed, preventing chips from entering the cabinet and causing malfunctions in the components.

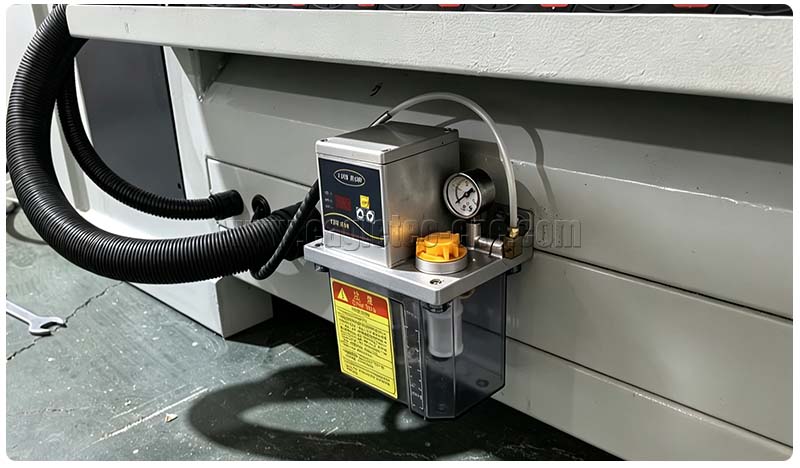

• The automatic lubrication pump provides lubricant to essential moving components, minimizing friction and wear while ensuring smooth, reliable operation of the CNC wood lathe.

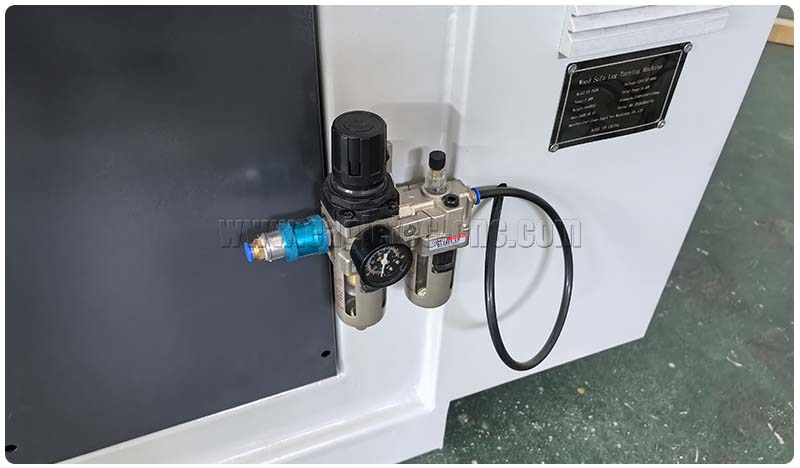

• The compressed-air inlet integrates an oil-water separator and pressure regulator, providing clean, stable air for reliable operation of the machine's pneumatic components.

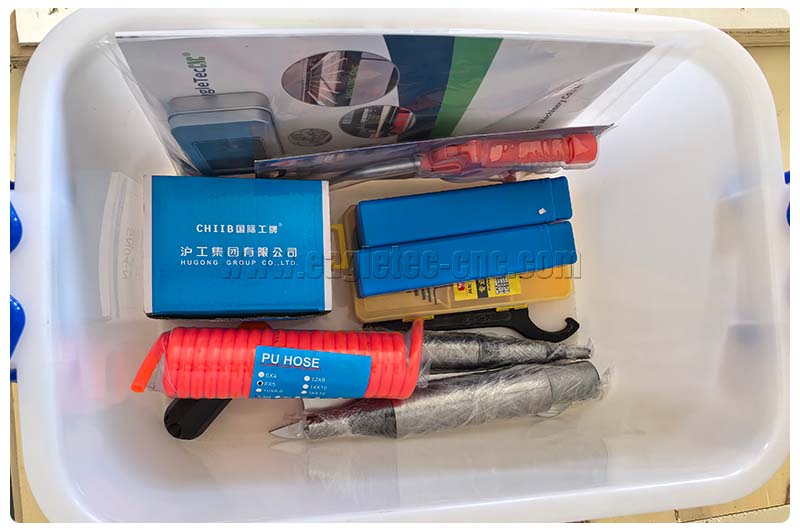

Free Tools & Spare Parts Included with the CNC Wood Lathe

Typically, the free tools and accessories for further maintenance are below:

• Toolbox x1

• USB Drive x1 (Operation Tutorials/Training Courses Saved in it)

• USB Drive x1 (empty one – serving as purpose for file copying from your computer to the CNC)

• One set of knives for sample making

• Allen Wrench Kit

• Spanner Kit

• Relay (spare for further maintenance purposes)

• On/Off Button (spare for further maintenance purposes)

• Limit Sensor (spare for further maintenance purposes)

CNC Wood Lathe Applications for Furniture Legs

The ET-7020 CNC wood lathe is designed for automated production of turned wooden furniture legs, specifically cylindrical and conical legs.

Cylindrical Furniture Legs

• cylindrical sofa legs

• cylindrical chair legs

• cylindrical table legs

• cylindrical wood legs

Conical Furniture Legs

• conical sofa legs

• conical chair legs

• conical table legs

• conical wood legs

Materials Good For:

All types of wood.

Machining Capacity

External turning.

CNC Wood Lathe Packaging & Shipping Details

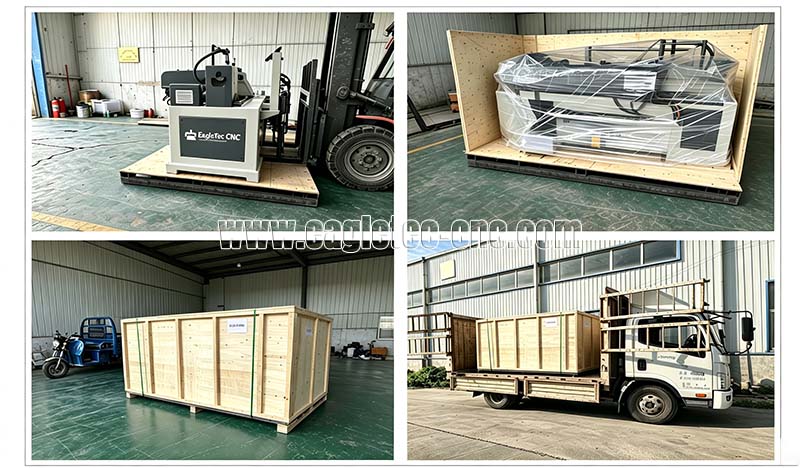

Before shipment, our wood lathe is securely mounted on a plywood pallet. The entire machine is wrapped in waterproof plastic film to protect it from moisture and dust. It is then placed inside a sturdy, export-grade wooden crate. The wooden crate is reinforced with fasteners to provide shock resistance during long-distance sea or land transport. After a thorough inspection, the packaged crate is loaded onto a truck for delivery. This professional export packaging ensures that the machine is well-protected and arrives at the customer's location in perfect condition.

Key Specifications of the High-Speed CNC Wood Lathe

• Max. Dia: 200mm

• Max. Length: 700mm

• High-Speed

• Auto Loading & Unloading

• Center-supported work-holding on headstock & tailstock

• Two-tool pneumatic switching system (serving as pneumatic tool changer)

• Spindle Motor: 7.5KW

• Motion Motor: 750W AC Servo

ET-7020 CNC Wood Lathe Technical Sheet

CNC Wood Lathe for Furniture Legs: Frequently Asked Questions

Q: Can The ET-7020 CNC Wood Lathe Make Sofa Legs?

A: Yes. The machine is designed for turning various wooden furniture components, including sofa legs, table legs, and chair legs.

Q: Can The ET-7020 Wood Furniture Leg Making Machine Produce Cylindrical And Conical Legs?

A: Yes. This is exactly what it is engineered for, so it is a perfect fit for producing cylindrical, tapered, and conical wooden legs. Additionally, it can also handle other cylindrically symmetrical workpieces.

Q: What Makes The ET-7020 Different From A Conventional CNC Wood Lathe?

A: The ET-7020 is designed for high-speed furniture leg production. Its high-speed spindle, AC servo motion, automatic loading system and production-oriented configuration help achieve faster and more efficient processing than conventional wood turning machines.

Q: How Fast is the ET-7020?

A: The ET-7020 is designed for high-speed wood turning and uses full AC servo motion. Actual machining time depends on the furniture leg dimensions, material, profile and cutting parameters.

Q: What Types Of Wood Can Be Processed?

A: It can handle all types of wood, including hardwood, softwood, MDF, and other woods.

Q: What Is The Maximum Workpiece Size?

A: The standard model's capacity is a turning diameter of 200 mm and a turning length of 700 mm; it provides consistent and repeatable wood turning for production applications.

Q: Can EagleTec CNC Recommend A CNC Wood Lathe For My Application?

A: Yes. Send us your workpiece dimensions, drawings, photos, or samples, and our team can recommend a suitable machine configuration for your application.

If you like the CNC wood lathe for furniture legs here, please feel free to reach out today for pricing & specifications!
