Structured Light 3D Scanner for Large Objects

Model: EA- COM16

Category: CNC Accessory Equipment

Brand: EagleTec CNC Structured Light 3D Scanner for Large Objects

Condition: New Condition

Reference Price: USD6800.00 / SET

Price Range: USD4600 to USD9900 / SET in accordance with Different Configuration

Supply Ability: 300 Sets Monthly

Availability: In Stock

Lead Time: within 2 days on receipt of payment

Payment Method: T/T, Western Union, Money Gram, PayPal

H.S. Code: 90318090.90

Recommendation: Structured Light 3D Scanner for Large Objects4.9 based on 5.0



EagleTec EA-COM16, structured light 3D scanner, is a CNC accessory product especially developed for industrial design field including 3D modeling service, statue carving, furniture making, rapid automotive prototyping, reverse engineering and more. The scanning scope can be freely adjusted according to the production needs. From small parts to large object such as big car body, all can be perfectly scanned by EA-COM16 structured light 3D scanner here.

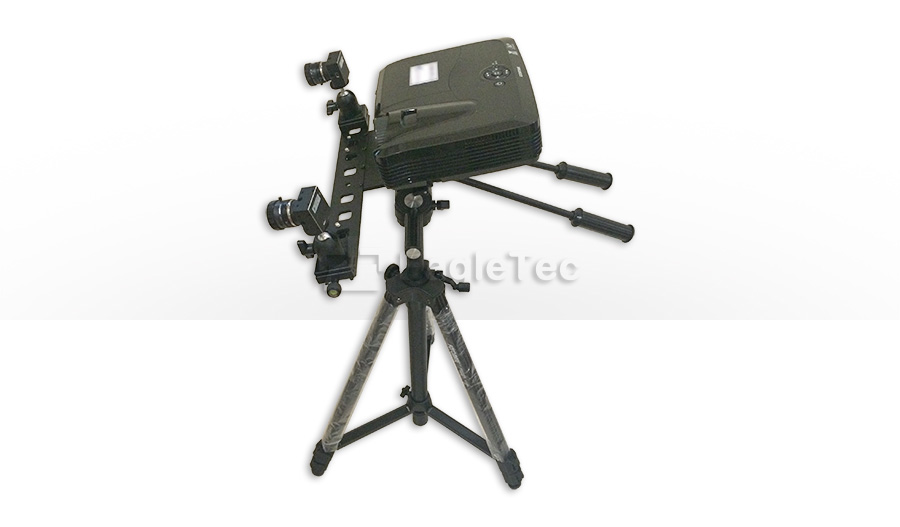

high quality structured light 3d scanner

Video Demo: How Does This Structured Light 3D Scanner Work?

Q&A of EagleTec Structured Light 3-Dimension Scanner

Q: What kind of file extension is the output model that we get from structured light scanning?

A: Based on structured light triangulation, the output scanned model is in the format of ***.stl, which is consisted of thousands of triangles.

Q: How can we check the dimension of the finished model by (structured light) 3D scanning?

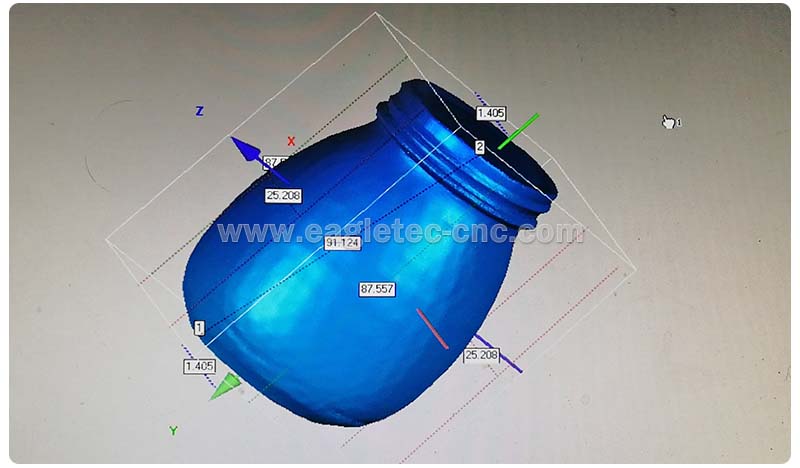

A: We can do it in the Geomagic Studio software. It can be done simply by performing the “distance” order under the “Analysis” column. Please refer to the following picture:

geomatic measures the full dimension of structured light scanned model

Q: Can we take the 3D scanning model to create CNC toolpath in CAM software directly?

A: Before making the toolpath, we need to complete simple patching work. There will be several holes in the scanned model, what we need to do is to patch them in the software Geomagic Studio (we will provide it along with the scanner). And next, the model can be imported into CAM software (ArtCAM, MasterCAM, PowerMill, or JD Paint) to create the CNC machining toolpath (usually known as G code).

Q: What kind of computer should we use for the EagleTec scanner?

A computer with a higher configuration will work better. Following is the suggested configuration:

● CPU should be INTEL CORE-I7 processors or higher

● Memory should be 16G or more

● HD should be 500G or more

● The Graphics card should be NVIDIA GTX series Discrete Graphics Card or a higher level dedicated for 3D design application.

● There should be two pieces of VGA ports: one is for the monitor and the other one for the 3D scanner.

● The computer system should be Windows 7 or 10, both 32-bit and 64-bit are ok.

Q: Can the (structured light) scanned model be edited with AutoCAD?

A: In fact, you can only import the scanned STL model in AutoCAD, but it is not editable there. If you are experienced in reverse engineering, you can convert the STL into an appropriate format that can be edited in AutoCAD. This process requires professional skills to complete.

Q: Who will guide us to start the 3D scanning?

A: Full set of most specific tutorials (in English) from hardware to software will be provided to you along with your scanner. Simply follow the instructions step by step, you will probably start it yourself; and if still have a kind of confusion after check the tutorials, our skilled technicians are ready to answer any questions and guide you out the confusion.

Advanced Technology of EagleTec High Quality Structured Light 3D Scanner

● Based on the most advanced technology of structured light non-contact photography in the world at present, scanning without impacting the surface of the object.

● Phase measurement technique.

● Computer vision technology.

● Non-contact white light technology.

structured light 3d scanner for reverse engineering

Advantage of EagleTec Structured Light 3D Scanner for Reverse Modeling

The non-contact white light technology avoids contact with the surface of the object. During the scanning process, the measured object can be flipped and moved at will, and the object can be measured by multiple angles of view. The scanner system automatically splicing images at various angles to achieve 360-degree high-precision measurement of objects.

portable industrial structured light 3d scanner

● High scanning precision is less than 0.02mm.

● Fully automatic splicing, a variety of splicing options are available: object features & marker points & rotary table.

● The scanning area can be adjusted according to the size of the object, which is suitable for a variety of workpiece requirements.

● Scanning depth up to 1000mm.

● Portable design for taking to any site.

Your Production Flow Should Be Like This Once You Own A Structured Light 3D Scanner

• Using the scanner to measure the object and get the STL scanned model (file extension ***.stl).

• Put the model in Geomagic Studio for hole patching.

• Import the model in CAM software (such as ArtCAM, Power Mill, MasterCAM, and JD Paint) to create the CNC machining toolpath (G code).

• Take the G-code toolpath to your CNC machine for production.

Application Introduction of EagleTec Best Portable Structured Light 3D Scanner


It is ideal to make reverse modeling jobs for CNC machining, product design, education or reverse engineering.

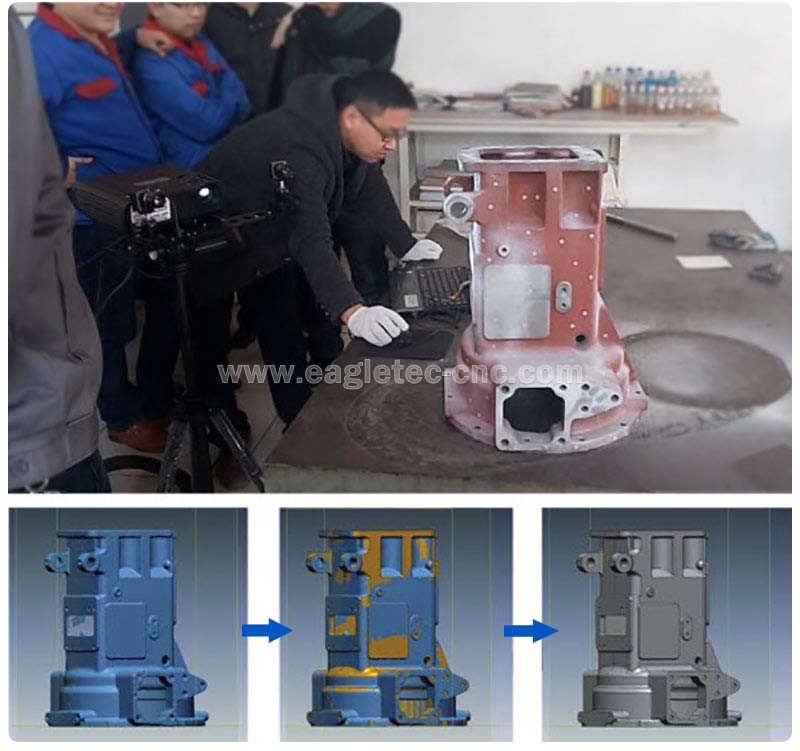

reverse engineering application with structured light 3d scanner

Suitable Machine

CNC router, cnc foam router, cnc woodworking router, 4 axis cnc router, 5 axis cnc router, 3D printer, cnc machining center.

Warranty of EagleTec Reverse Engineering 3D Scanner Based Structured Light

EagleTec provides a 3-year warranty on all 3D scanners sold by us. If there is any problem during the warranty period, our customer enjoys free replacement of new parts. In addition, we provide lifetime technical support for our scanners.

Top Grade Components of EagleTec Structured Light 3D Scanner for Big Object

● Germany 1.3 megapixel industrial vision sensor – 2 Pieces

● Famous brand structured light projector – 1 Piece

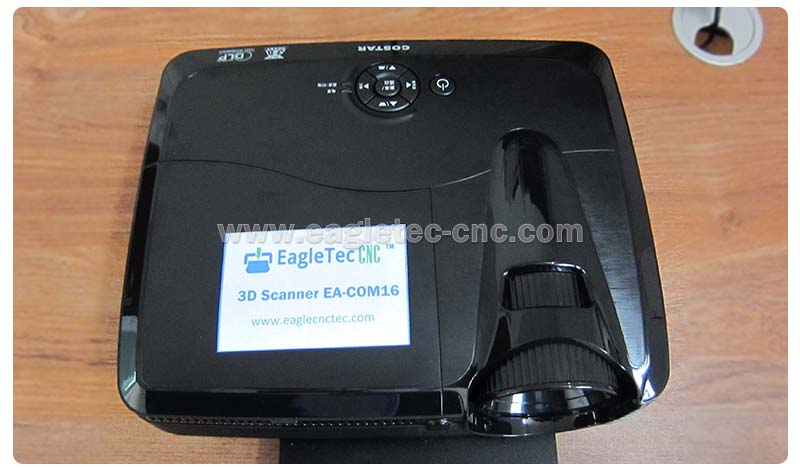

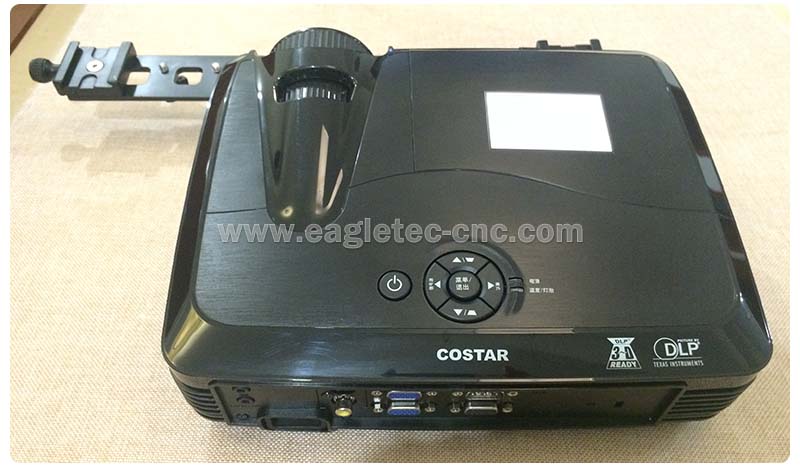

non-contact structured light projector

● PHOTOMATE tripod from Taiwan – 1 Piece

● Genuine Flex Scan3D software, which has been digitally certified by Microsoft's WINDOWS7/10 system and supports both 64-bit and 32-bit versions.

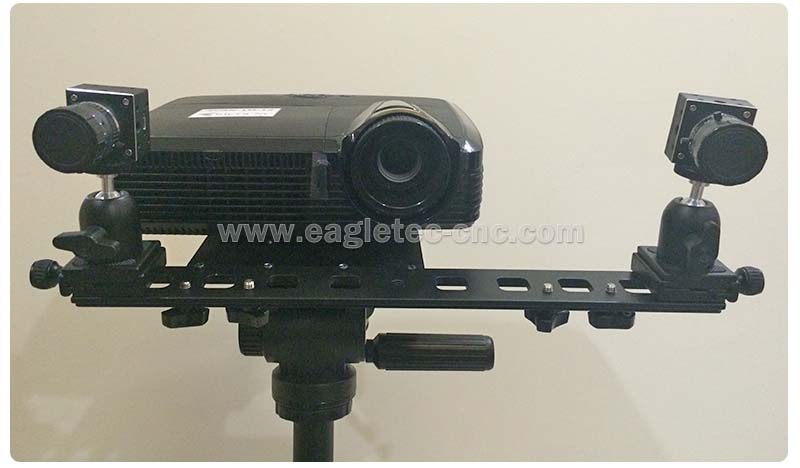

high performance non contact structured light 3d scanner

Package Details & Appropriate Shipping Means of EagleTec High Precision Structured Light 3D Scanner

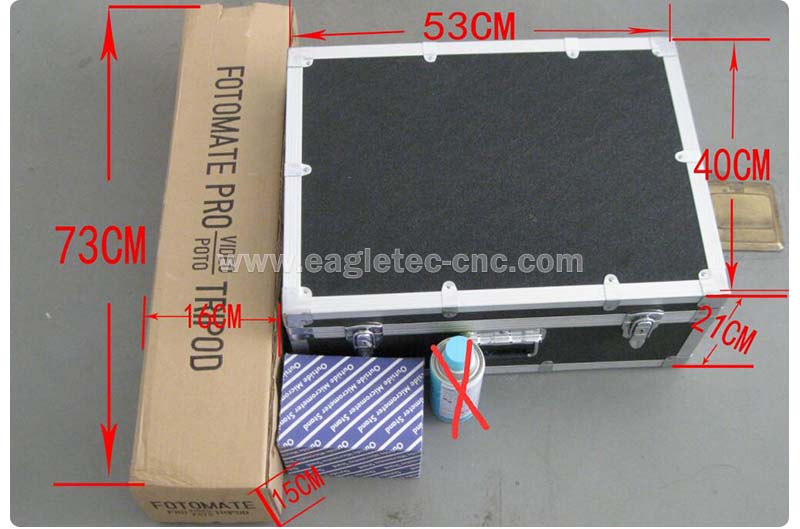

● Three pieces of packages total: the projector and the cameras are placed in an aluminum case; the tripod is in the carton; the calibration board bracket is in the carton. Please refer to the photo below for dimension details.

● If shipping the scanner set alone, Express (DHL, TNT, FedEx) is the appropriate way; while if shipping it together with a cnc machine, the best way is to put it into a machine package and ship by sea.

structured light 3d scanner packing details

Optional Aided Device for EagleTec Structured Light 3D Scanner

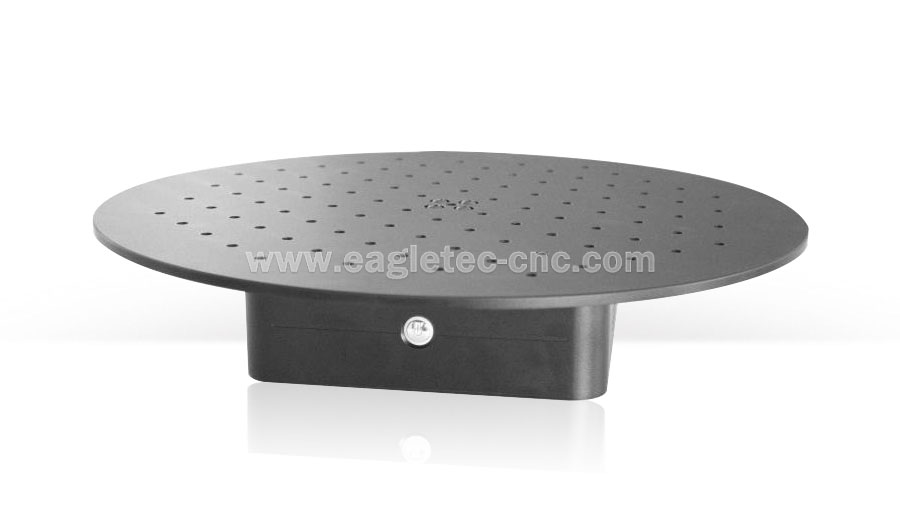

You can get a turntable in combination with the Flex Scan3D software if you like. The table will turn 360° by clicking “capture” one time in software. With the turning platform, we will not need to adjust the angle of the scanned object manually anymore. Instead, the table will turn with a software command.

turntable for eagletec structured light 3d scanner

• Turntable diameter: 420mm (with M6 holes)

• Bearing capacity: 20KGS

• Material: Aluminum alloy, surface anodized

• Pulse: 48000PPR

• Volts: AC 100 ~ 250V

• Communication port: USB2.0/3.0

• USB cable: 3 meters

• Motor: stepping

• Net weight: 4.0KG

Technical Parameter of EagleTec Industrial Structured Light 3D Scanner

Model No.EA-COM16
TypeIndustrial 3D Scanner based structured light
Camera SensorDual - Made in Germany - 1.3 megapixels
LensJapan brand
ProjectorWhite structured light projector from USA or Taiwan
Scanning SoftwareGenuine Flex Scan3D digitally certified by Microsoft's WINDOWS7/10 system
OS CompatibilityWindows 7 & 10 (both 32-bit and 64-bit)
Resolution 1M (1280x1024)
Scanning Precision0.02mm
Suitable Object Size 50mm to 5,000mm
Scanning Distance240mm to 2,000mm
Scanning Point Distance0.07 to 0.1mm; 0.1 to 0.3mm
Scan Depth50mm (Macro); 400mm (Medium shot); 1000mm
Scan Speed1.3 seconds per frame
Scanning Area120x160mm (Macro); 240x300mm(Medium shot); 750x1000mm
File Extension NameSTL, OBJ, PLY, ASC, 3D3
TripodPHOTOMATE from Taiwan
Free AccessoryCalibration board, Data cable, Background cloth, Software dog
Package Aluminum Case especially for camera equipment
Gross Weight20KGS
Volume Weight22KGS
Working PowerAC110V ~230V, 50 or 60Hz, Single Phase
OptionalScanner turntable

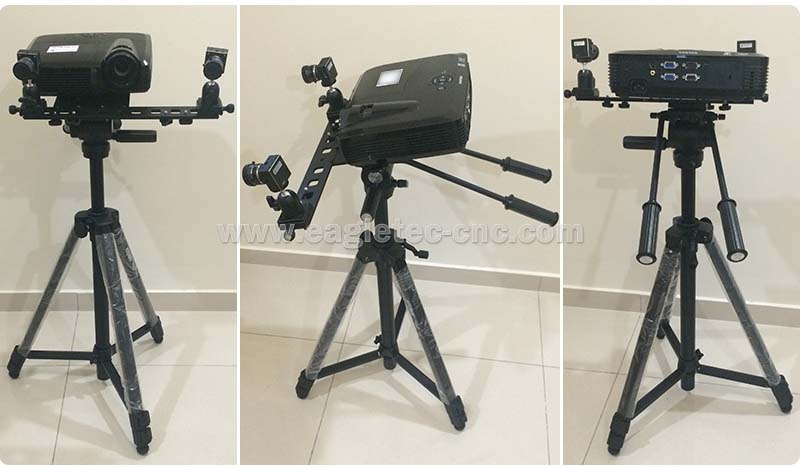

Photo Show of Full Set Portable Structured Light 3D Scanner

If you like the structured light 3D scanner here, please ask for a free quote now.
