4 Axis Rotary CNC Router Machine With 12 Spindles for Mass 3D Carving

Model: EA-3015RMS12

Category: 4 Axis CNC Router

Brand: EagleTec CNC4 Axis Rotary CNC Router With 12 Spindles for Mass 3D Carving

Condition: New Condition

Reference Price: USD23900 / SET

Price Range: USD19800 to USD24500 / SET as per different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Put order into production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 2100KGS

Package Dimension: 3900*2250*2280mm (20.00CBM Approx.)

H.S. Code: 84659900.00

Recommendation: 4 Axis Rotary CNC Router With 12 Spindles for Mass 3D Carving4.7 /5 based on 65 reviews


Equipment Summary

EA-3015RMS12 is a 4 axis cnc router machine for the mass production industry engineered to process 3D and plan relief carving operations of solid wood elements. It is equipped with 12 spindles and rotary operating units, enabling you to get 12 pieces of 3D carving or plane relief jobs in one working-cycle.


You may ask: Can this rotary cnc router do plane carving as well?

Yes, it can do that definitely. Because it is equipped with a removable flat working table also.


The working times are relatively fast thanks to the construction of the multi-head and multiple rotational rotary axis. 4 Axis Rotary CNC Machine With 12 Spindles for Mass 3D Carving for sale at an affordable price now!


The similar machines you might be interested in 3d cnc wood carving machine with rotary axis, 4 axis multi head cnc router

If you are looking for a 4-Axis cnc router with ATC, please check out here: best 4 axis cnc router with ATC.

In search of a machine with flat bed only? Please check the vacuum table cnc router with 4 spindle

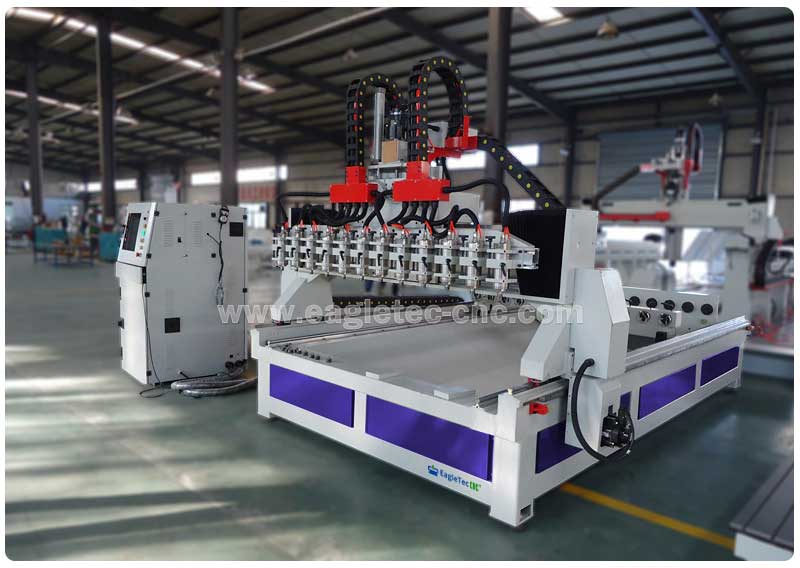

bule 4 axis rotary cnc router with its control cabinet placed on the floor

Solid Wood Sculpture 3D Carving Demo by 4 Axis Rotary CNC Router

In the video, we use the rotary cnc machine to engrave multiple pieces of sculptures in solid wood at a time. The whole process contains two parts. The first part is roughing. The tool used is 12.7mm straight flute cutters. The second part is finishing; the tool used is 6mm V-bits. Here is the demo, please enjoy it!

Application of Multi Head 4 Axis Rotary Router

Application Industry

As we can see from the demo here, statue-making is one of the main applications for this cnc router. Besides, it is often used in the furniture fabrication industry to make Queen legs, carved complex 3-dimensional leg patterns, Cabriole, Carved corbels, curved parallelogram shapes, and more.

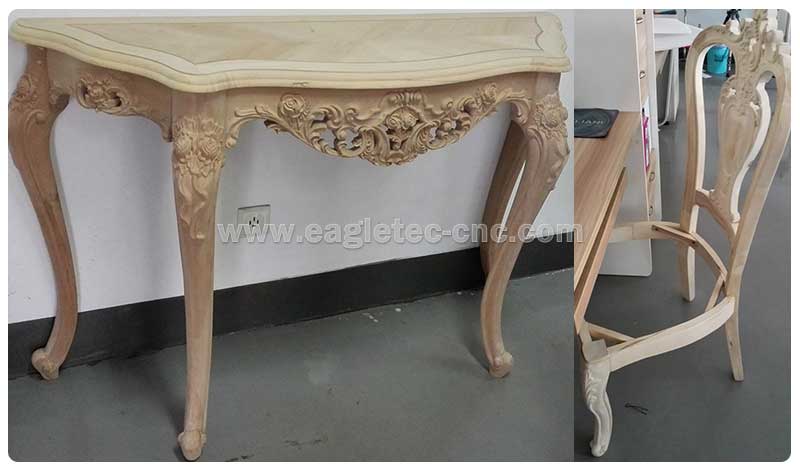

European style table and desk projects by 4 axis cnc router with rotary

Applied Materials for 4 Axis CNC Rotary Machine with 12 Spindles

Rotary-working: Wood elements only.

Flat-working: Solid Wood, MDF, Plywood, Acrylic, ACM, Solid Surface, Melamine, Phenolic, HDPE, PVC, Foam, White expanded PVC, and more.

Specification of 4 Axis Rotary CNC Machine

• Multi operating unit for 3D carving: clamping of the workpieces is through a head and tailstock system. The tailstock is a mobile carriage; the headstock is fixed at the rear of the machine and connected to the motion system. The operating unit can hold a workpiece up to 3 meters long. When processing 12 pieces at the same time, the maximum machining diameter of each unit is 150mm.

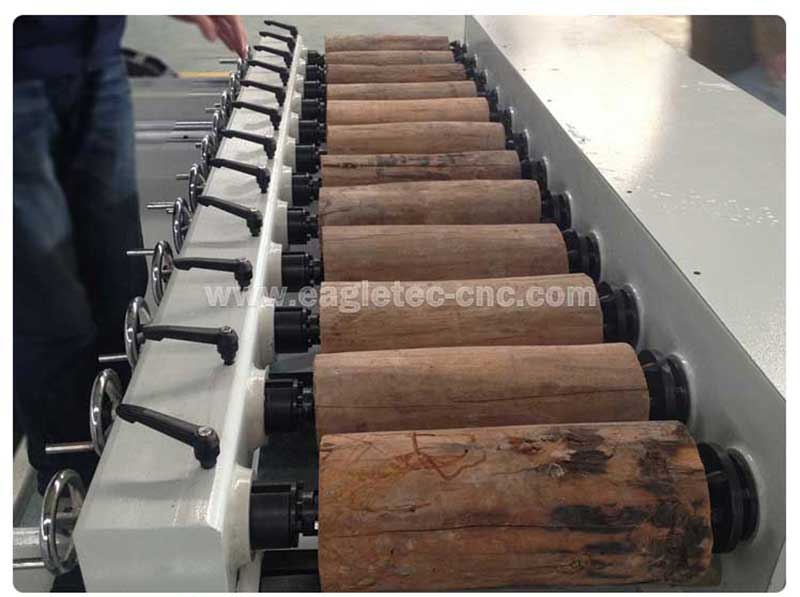

12 pieces of round wood are clamped by the multi operating units of 4 axis rotary cnc router

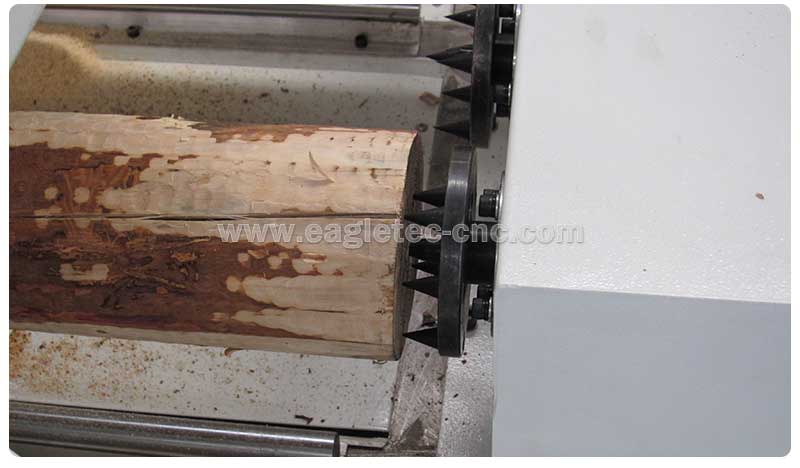

fixtures of headstock of the 4 axis rotary cnc machine operating unit

• Removable flat working table: the rotary cnc router is capable of both 3D carving and flat relief carving thanks to its dual working platform system. When 3D machining is needed, we will remove the flat platform and put it aside; when we want to process the flat-working operation, we will install the flat table. The two can be switched at will according to actual production requirements.

When the flat-working table is removed, it looks like this:

4 axis rotary cnc router with its flat table removed

When you mount it back, it looks like this:

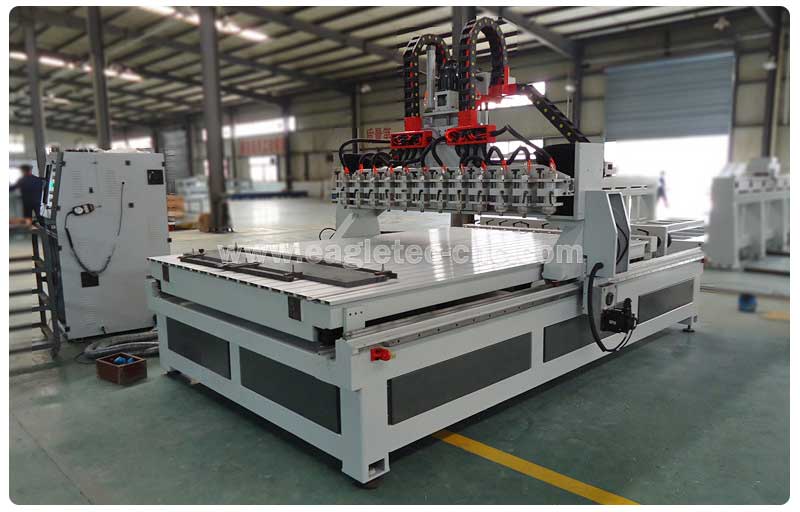

4 axis cnc rotary router with flat working table on it in workshop

• The machine is driven by a full closed-loop AC servo system – the Yaskawa brand. Quiet and precise, it also has excellent acceleration and deceleration performance.

• The electric spindle is vital for a cnc router machine like this. We adopt constant-torque water-cooled spindles that are much more durable than conventional ones. From the actual feedback from customers for many years, this kind of spindle has a meager failure rate and the most extended life.

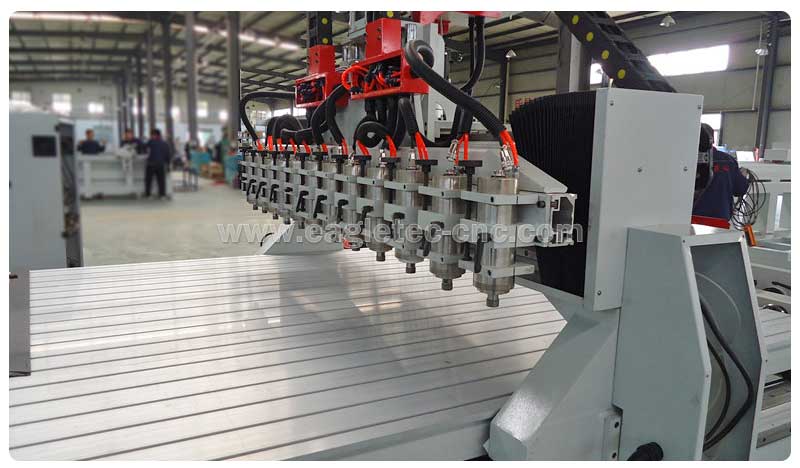

12 spindles mounted on the 4 axis rotary cnc router machine with height-adjustable clamps

• The spindle clamp adopts the sort of adjustable height. With this clamp, you can easily adjust all spindles to the same height, which is very simple.

• The rotary axis cnc router machine is equipped with a WEIHONG 4-axis simultaneous motion controller based on the windows system. Probably you know that the tool path files of 3D carving are often very big; So, a computer is superior to a handheld DSP unit on the performance of both reading and running data.

4 Axis Rotary Axis CNC Router Package

For the whole machine, we usually use wrapping material to wrap it up to protect it from damage and moisture. Then fix the equipment on the steel pallet to facilitate the loading and unloading operations of the forklift. Please refer to the picture below.

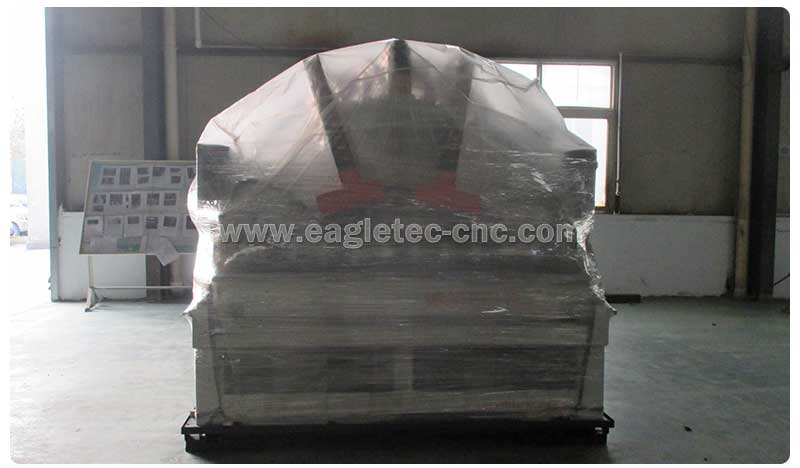

4 axis rotary cnc router on steel pallet with wrapping materials around it

12 Station Carving Router Technical Parameter

Model No.EA-3015RMS12
Type4 Axis CNC Router (Rotary Axis)
Motion Head QtyOne
Max.Simultaneous Axis Qty Four
Spindle Qty12
Machine BaseHeavy-duty, finish by CNC machining center
Rotary Operating UnitSpike style with mobile carriage on the tailstock
Operating Unit Qty12
Rotary Working Size150mm D x 3000mm L (5.9" D   x 118" L) - 12 Pieces Together
Rotational Table ClampingBy head and tail stock system
Flat Working Bed Aluminum Profile with PVC
Flatbed Working Area1800x3000mm
Flatbed ClampingBy T-slot clamps
Electric Spindle Water-cooled, 2.2Kw, 24000rpm - 12PCS (constant torque outpu)
Collet SizeER20
Acceptable Tool Diameter 3.175 ~ 12.7mm (1/8“ ~ 1/2”)
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveYaskawa servo 850watts&1300 watts - 5 SETS
Driver Yaskawa
Fast Travel Speed30,000mm/min
Max. Carving Speed12,000mm/min
CNC ControllerWEIHONG 4 Axis Control (hardware) with MPG
CNC SoftwareNcStudio V8 (Genuine)
X-Axis TransmissionHelical rack and pinion, belt-driven gear case
Y-Axis TransmissionHelical rack and pinion, belt-driven gear case
Z-Axis TransmissionRolling ballscrew, 25mm
X Linear Guides Original PMI, square type, 25mm
Y Linear GuidesOriginal PMI, square type, 25mm
Z Linear GuidesOriginal PMI, square type, 25mm
Inverter 2.2kw - 12PCS
Communication CommandG code (***.nc)
Compatible Programming SoftwareArtCAM, Aspire, PowerMILL
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole machine
Lubrication SystemVolumetric Central lubricating, auto type
Working PowerAC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph)
Max. Power Consumption35KW
Net Weight 1,900KGS
Gross Weight2,000KGS
Package WayWrapping materials and steel pallet
Package Dimension3900*2250*2280mm (20.00CBM Approx.)

FAQs about 4 Axis Rotary CNC Router With 12 Spindles for Mass 3D Carving

Q: Is the 4th Axis Rotary here Simultaneous or Index?

A: It is simultaneous. So, the rotary router here is a real 4 axis cnc machine. What is the difference? If with the index one, you have to disable X instead of making rotary able to work. For EA-3015RMS12, you needn't do that. Actually, you can make X, Y, Z, and A all axes work simultaneously. Read more here.

Q: What Is the Toolpath Programming Software for This 4 Axis Rotary CNC Machine?

A: Let's talk about it in two parts: flat-working and 3D carving. For the plane working, you can use ArtCAM or Aspire software. About the 3D engraving, the software is PowerMILL. EagleTec CNC would like to provide detailed tutorials of ArtCAM and PowerMILL to you if we work together. They are practical guides for beginners with instructions step by step. If you are interested, you can find detailed tutorials on our YOUTUBE channel now.

Q: What Kind of Warranty Do You Offer for This 4 Axis Rotary CNC Router?

A: It's a 12-months warranty since the departure. Under warranty, you'll enjoy free replacement for any broken parts except the Vulnerable parts. After that, we provide you with constant free online support; for spare parts replacement, it will be charged based on raw materials' cost.

Q: What Is the Lead Time for This Rotary Axis CNC Router Machine?

A: We put your order into production on receipt of the down payment, and the lead time is 15 business days.

If you like the 4 axis cnc router with rotary axis for sale here, please contact now for a free quote.
