New 1212 CNC Router Ready for Shipping to Canada

Publish Date: Aug. 17, 2021 Author: Cherry Publisher: EagleTec CNC Modify Date: Aug. 17, 2021

The 1212 cnc router is a standard model among the entry-level wood router cnc machines, which refers to the equipment with the actual working size of 1200x1200mm (X/Y); In imperial, it is also known as 4x4 cnc router. Its common application areas are mainly woodworking and signage. It is perfect for milling, cutting, routing, and engraving with almost all non-metallic materials.

1212 cnc router ready in plant

This new completed cnc 1212 router is built for a customer in Canada. It is equipped with an air-cooled 3.5kw spindle, steppers, YAKO YKA2811MA step drivers, and a vacuum working bed. From a configuration point of view, this is our high package.

blue cnc router 1212 with independent control cabinet

Let's have a look at its performance:

Fast travel rate: 35,000mm/min

Max. cutting rate: 20,000mm/min

Max. engrave rate: 12,000mm/min

• The machine base is welded by thick square steel tubes, and the weight of the whole machine is up to 700KGS. The installation base surface of the linear guide and rack is precision milled by a CNC metal machining center to obtain good machining accuracy.

good accuracy cnc router 1212

• It comes with an air-cooled electric spindle; 3.5kw, 18000rpm, ER25 collet, Chinese brand.

1212 cnc router with 3.5kw air cooled spindle

• The motion drivers are high-end models from YAKO; model: YKA2811MA. There are four sets totally on the machine. They make the machine move at a speed of 35m/min.

cnc router 1212 with yako drivers

• The machine uses an independent handheld CNC system: RichAuto A11E. We no longer need a computer to control the operation of the 4' x 4' cnc router. The whole system consists of a wiring board, data cable, and handheld controller.

handheld cnc controller for cnc router 1212

wiring board of cnc controller in the electronic cabinet

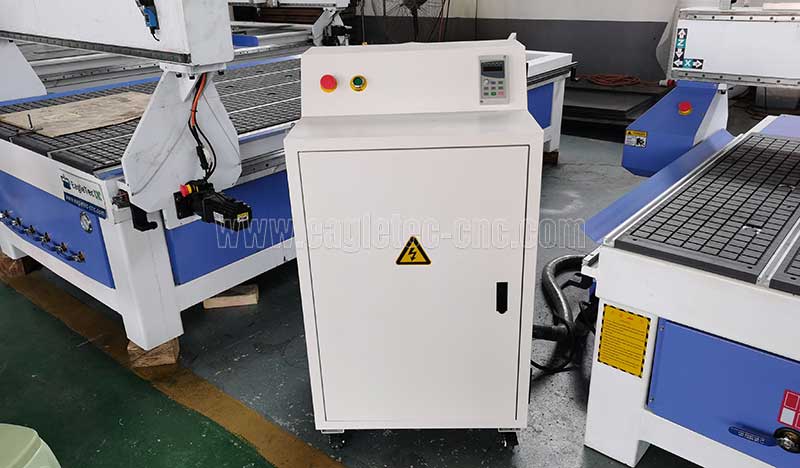

• Independent electric cabinet (electronic house)

electric cabinet for cnc router 4x4

• To stop the machine as quickly as possible in an emergency, we have installed emergency stop buttons on both sides of the gantry. In this way, no matter which side of the machine the operator is standing on, he can quickly snap the emergency stop switch.

cnc 1212 router with emergency stop on both sides of the gantry

• It has a four-zone vacuum working bed.

control valve of vacuum bed for 1212 cnc router

• Other small electrical components use brand products, such as Schneider, CHNT, etc.

small electronic components for cnc router 1212

• Central lubricating for linear bearings and guides.

lubricator on cnc router 1212

Top-sale entry-level CNC Wood Routing Machines

5x10 cnc router

4x8 cnc router

48x48 cnc router with rotary axis


If you are interested in this machine, please contact us for more details.
