48 x 48 CNC Router With 4th Axis Rotary Attachment

Model: EA-1212R3

Category: 4 Axis CNC Machine

Brand: EagleTec CNC 48 X 48 CNC Router With 4th Axis Rotary Attachment

Condition: New Condition

Reference Price: USD5470 / SET

Price Range: USD5400 to USD6800 / SET as per different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Put order into production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 850KGS

Package Dimension: 2300*2250*2100mm (10.86CBM Approx.)

H.S. Code: 84659900.00

Recommendation: 48 X 48 CNC Router With 4th Axis Rotary Attachment 4.9 /5 based on 61 reviews


Brief Description

EA-1212R3 is a dual-purpose cnc machine; it is essentially a router machine with a 48 x 48 aluminum profile worktable and a 4th rotary axis. The rotation axis is located to the right of the flatbed. The flat table is for sheet materials working; the fourth axis is used to process cylindrical workpieces. It should be noted that the 4th axis is indexed in the default configuration, not 4-axis simultaneous. However, it can be upgraded to the simultaneous type if you need it.

48 x 48 CNC Router With 4th Axis Rotary Attachment is for sale at a favorable price now.


One similar machine you may be interested in 1325 cnc router with rotary axis

If you are looking for a machine with same working area but without the rotary, please check out our 4x4 CNC Router EA-1212SV

blue and white 48 x 48 cnc router with 4th axis ready for shipping

Operation and Working Demo of CNC Router 1200 x 1200 with 4th Axis Rotary Table

Features of 48x48 CNC Router with 4th Axis

• The fourth rotary attachment is situated to the right of the plan-working bed with a permanent location. Its headstock is a three-jaw chuck equipped with a worm gear case; the tailstock is a spike on a carriage to hold the cylindrical blocks of different lengths.

3-jaw chuck headstock of the 4th axis on the 48 x 48 cnc router machine

• The machine base is welded by thick-walled square steel tubes and undergoes vibration aging treatment to eliminate welding stress. The flatbed is made of aluminum profile and rigid PVC.

48x48 cnc router with aluminum profile bed and rotary table in the workshop

• The 48x48 cnc router machine comes with a 3.2kw water cooling spindle.

• The independent electronic house stands on the left side of the cnc router with 4th axis.

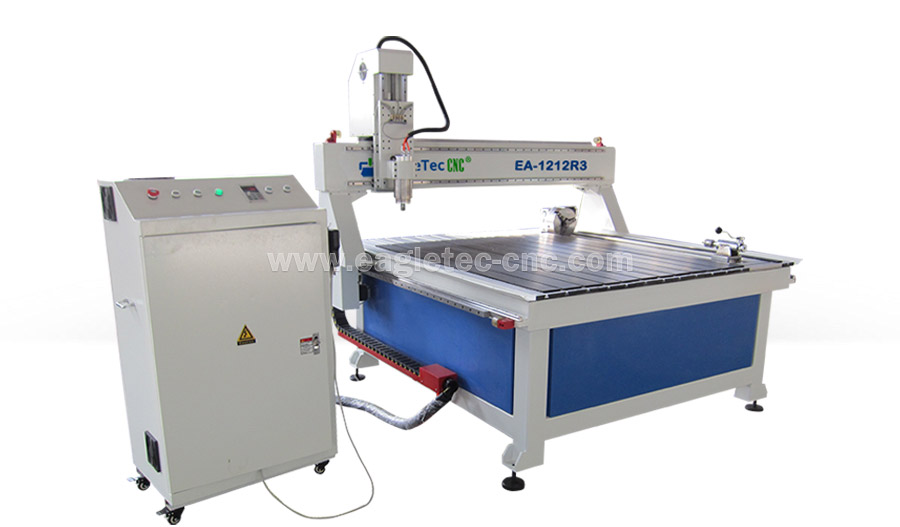

48 x 48 cnc router with independent electronic cabinet on the side

• The electrical components are all brand-name products, and most of them are installed inside the house. The electrical cabinet has excellent airtightness to provide a dust-free environment for the parts.

Application of 1200 x 1200 CNC Router with 4th Axis

Applicable Field

It is very suitable for projects like embossment, carved artworks, signs, and other woodworking jobs.

Applied Materials

Solid Wood, MDF, Plywood, Solid Surface, White expanded PVC, HDPE, PVC, Foam, and more.

Packing Demonstration of 48x48 Wood Router Machine

• The machine is packaged as a whole without disassembly. We put the electric cabinet and other accessories on the table.

• We wrap it in a thick waterproof stretch film

• We put the 48x48 wood router on the wooden box's pallet and fix it to avoid the device from sliding in the wooden box.

• Finally, we sealed the wooden box. Put it in a container and ship it to overseas buyers.

48x48 cnc router with rotary attachment under packing in our workshop

Quick Details of 48 x 48 CNC Router with Rotary Attachment

• Flatbed working size 48" x 48" (1200x1200mm)

• 4th Axis machining size 7.87" D x 39" L (200 x 1000mm)

• Permanent location rotary axis

• 3.2kw water cooled spindle

• Stepper motors & drivers

• Precise square linear guideways

• Helical rack and pinion transmission on X/Y

• Rolling ballscrew on Z-axis

• RichAuto A11 controller – it can be upgraded to A18 system according to your requirement

Technical Parameter of 48 x 48 CNC Router for Sale

Model No.EA-1212R3
TypeCNC 4th Axis Router
Max. Simultaneous Axis Qty Three
Machine BaseHeavy-load
Rotary Table 7.87"D x 39"L (200mm x 1000mm), located on the right side of the machine
Rotary ClampingBy head and tail stock
Rotary TransmissionWorm gear
Flat Working BedAluminum profile with rigid PVC
Bed Size48" x 48" (1200 x 1200mm) - actual working size
Flatbed ClampingBy T-slot fixtures
X-Axis Stroke48 in [1200mm]
Y-Axis Stroke48 in [1200mm]
Z-Axis Stroke11.8 in [300mm]
Electric Spindle Water-cooled 3.2Kw, 24000rpm
Collet SizeER20
Acceptable Tool Diameter Range3.175 ~ 12.7mm (1/8" ~ 1/2")
Electronic CabinetIndividual type
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveNEMA34 stepper motor
Driver Leadshine
Fast Travel Speed25,000mm/min
Max. Cutting Speed12,000mm/min
CNC ControllerRichAuto A11 handheld controller
X-Axis TransmissionHelical rack and pinion, planetary gearcase
Y-Axis TransmissionHelical rack and pinion, planetary gearcase
Z-Axis TransmissionRolling ballscrew, 25mm, pitch 10mm
X Linear Guides Square type, 20mm
Y Linear GuidesSquare type, 20mm
Z Linear GuidesSquare type, 20mm
Communication CommandG code (***.nc)
Compatible Programming SoftwareArtCAM, Aspire, PowerMILL
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole 48 x 48 cnc router machine
Lubrication SystemManual type
ElectricityAC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph), or made to order
Max. Power Consumption6KW
Net Weight 850KGS
Gross Weight950KGS
Packing WayPlywood Case
Package Dimension2300*2250*2100mm  (10.86CBM Approx.)
Dust ExtractorOptional

FAQs about 48 x 48 CNC Router with 4th Axis

Q: Is it possible getting a tool length sensor on this model?

A: For your information, the tool length sensor has been already involved in the standard package of EA-1212R3.

Q: Is the 4th axis here fixed or movable?

A: It has a permanent location on the right side of the machine base.

Q: Is the cnc 4th axis simultaneous or indexed?

A: It is indexed in our default configuration. But it can be upgraded to the simultaneous option to make the machine be a real cnc 4 axis router as you requested. To view full models of this category, please click 4 axis cnc machine for sale

If you like the 48 x 48 cnc router for sale here, please contact us for pricing now.
