Home >> Products >> CNC Router >> CNC Wood Router >> 3 Axis CNC Router Engraver Machine with 4x8 Table

3 Axis CNC Router Engraver Machine with 4x8 Table

Model: EA-1325VA

Category: CNC Wood Routing Machine

Brand: EagleTec CNC 3 Axis CNC Router Engraver Machine with 4x8 Table

Condition: New Condition

Reference Price: U.S.$5900 / SET

Price Range: USD4500 to USD7500 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: production started after order confirmation (PreOrder)

Lead Time: 10 to 15 days

Warranty: 12 months

Payment Method: T/T, Western Union, Money Gram, Paypal

Recommendation: 3 Axis CNC Router Engraver Machine with 4x8 Table4.9 /5 based on 145 reviews


PRODUCT DESCRIPTION

Brief

3 axis cnc router for sale. It generally refers to a machine with (X Y Z) three axes total. EA-1325VA is a single head 3 axis cnc router machine with Italian air-cooled 3.0kw spindle (made in Italy). Router table is perfect combine architecture of PVC vacuum and aluminum t-slot, two in one design; it is not only vacuum adsorption table but also a clamp type table which is an ideal solution to meet the clamping requirements of different router working projects; the actual working size of the table is 4x8 feet (1300x2500mm). The driving unit is adopted high torque Nema34 stepper motor 450B. The motion controller is user-friendly Richauto A11, which is an easy controller even for a newbie. EagleTec 3 axis cnc router engraver for sale with the best price now!


You might be interested: cnc wood router 4x8 with china spindle or 4' x 4' cnc router

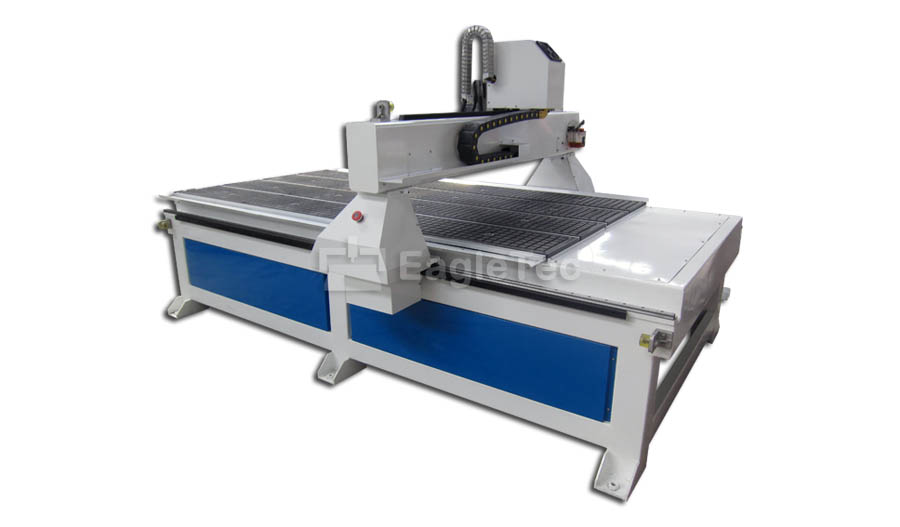

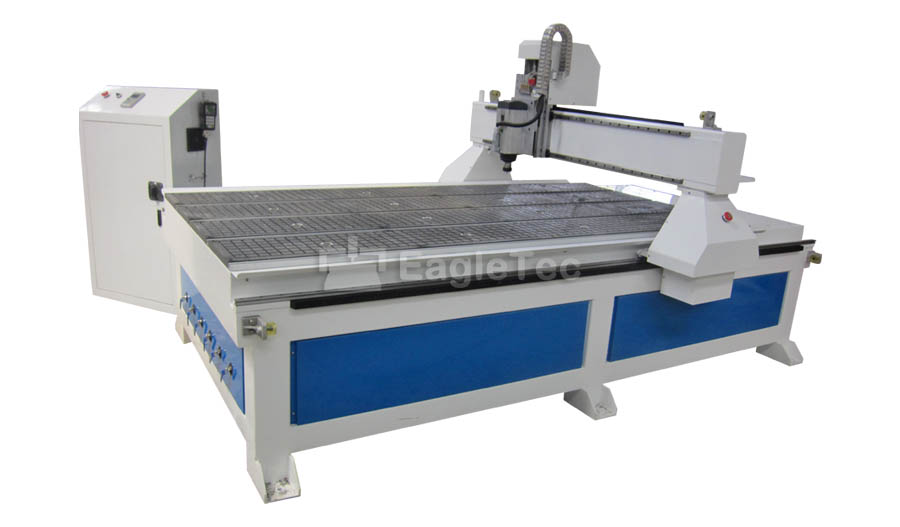

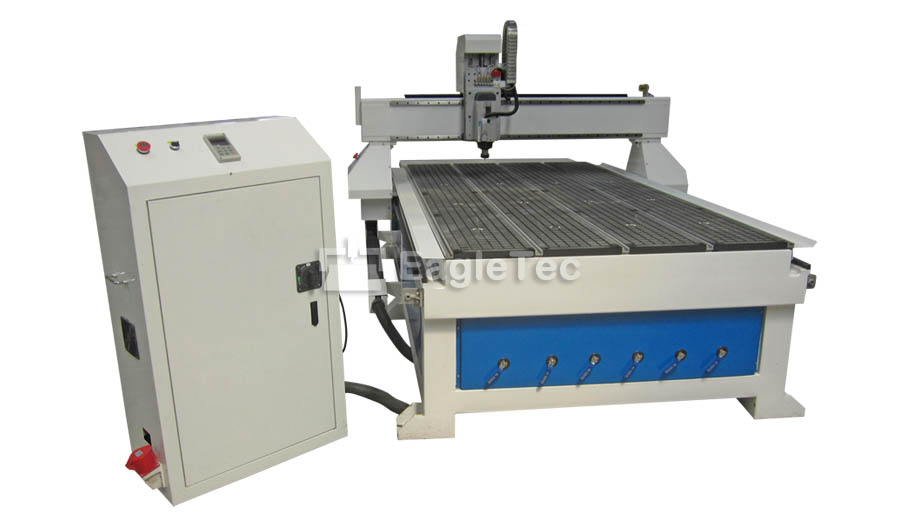

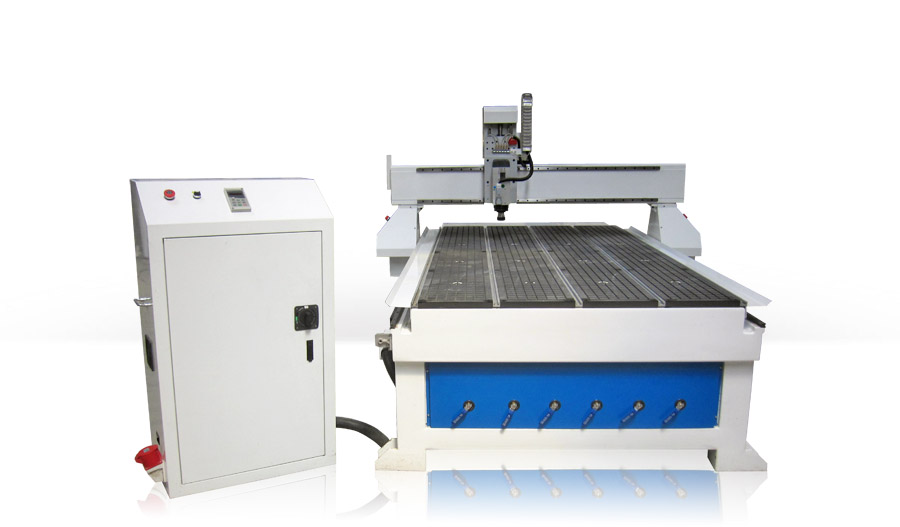

3 axis cnc router kit photo


Technic Advantage of EagleTec 3 Axis Router Table

Every detail is strictly controlled, from raw material selection to production and then to final inspection. Please check the excellent fine details of our machine via the photos below.

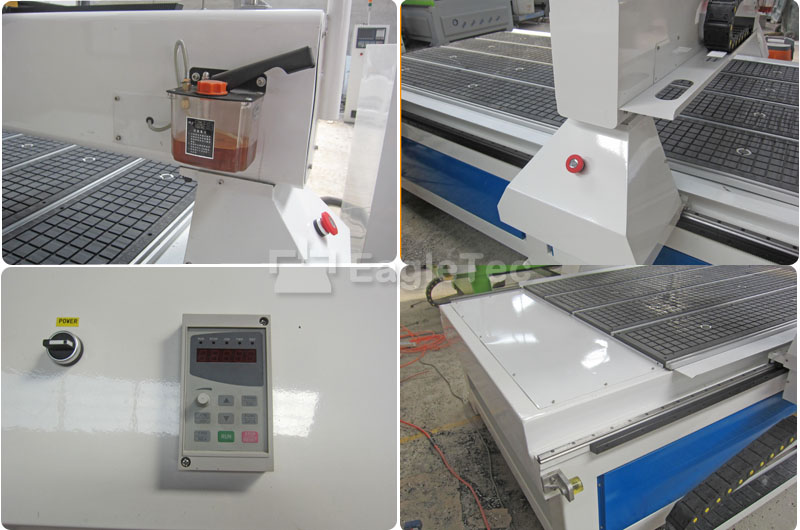

3 axis cnc router excellent fine details photo

• 100% original Italian HSD spindle is adopted to make the machine much more durable. Its lifespan is from 8 to 10 years.

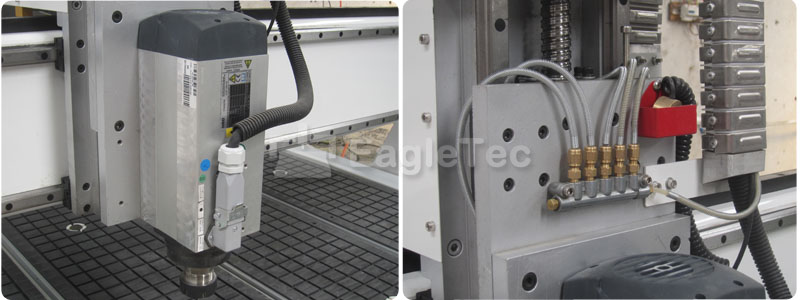

original Italian hsd spindle on 3 axis cnc router photo

• Multiple protection is designed in electronic production, including open door power-off design, fuse protection design, and AC contactor.

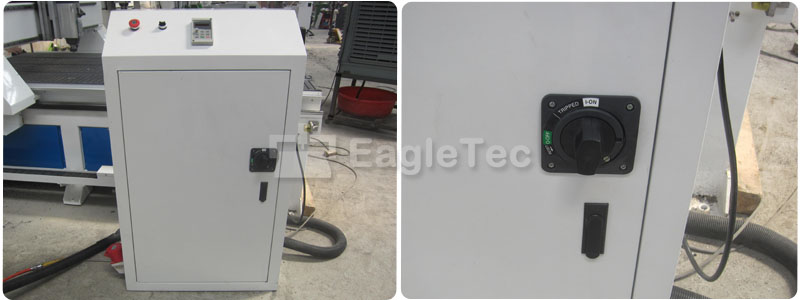

open door power off design on 3 axis cnc router photo

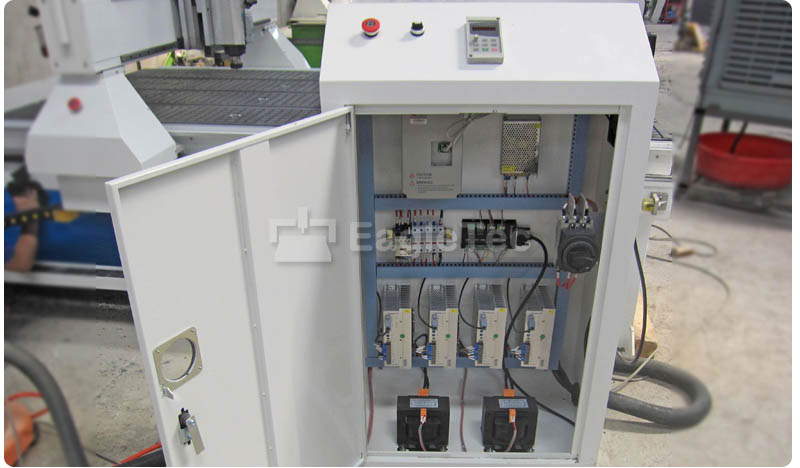

electronic cabinet inside details photo

Quick Details of EagleTec EA-1325VA 3-Axis Router Table

• 1300x2500mm working size (4' x 8')

• Single head, original Italy HSD air cooling spindle, 3.0kw, ER25, 18000RPM. With a lifespan of 8 or 10 years.

• Fuling VFD inverter 3.7kw - the best converter brand here

• Stepper 450B motor with high torque of 6.0 N.M

• 100% original YAKO YKA2811MA stepper driver with running volts of DC90V to 110V, the most powerful driver among all stepping drivers

• RichAuto Auto-Now A11 CNC controller (3 axes)

• High soft shield cables for all machine to guarantee stable operation

• Schneider and Omron electronics

Make to order for electricity by transformer like this computerized router table with AC480V electricity

Application of 3 Axis CNC Wood Router

Applicable Industry

EagleTec 3 axis cnc router machine is good for woodworking, sign making, Slatwall panel grooving, artworks carving, non-metallic materials cutting, and more.

Machining Materials Good for Three Axis CNC Machine

Materials good for this router are all kinds of non-metallic materials.

Features of Wood CNC Router 3 Axis

• It is a basic 3 axis cnc router table with a single head.

• Router table is two in one architecture, which is not only a vacuum adsorption table but also a clamp type table to meet different clamping requirements.

• Router construction is welded with seamless steel structure; processed vibrating stress relief (VSR) to reduce residual stress, and it is supported by 6 legs with adjustable leveling feet.

• Router table size is 4x8 feet. (1300x2500mm) Interested in a bigger size? Please check cnc router 2040 out.

• The X and Y axis motion is via helical type rack and pinion, which is hardened for extremely long life and ground for a very good accuracy; The Z-axis of the 3 axis cnc wood router is driven by a hardened rolling antibacklash ball screw.

• Linear guides of all three axes are Taiwan HIWIN or PMI which allow for good accuracy under high feeding speed.

• Y-axis is driven by dual motors, one on each side.

• Matched CAM software: ArtCAM, UcanCAM, Type 3 and etc.

Technical Parameter of Best Woodworking 3 Axis CNC Router for Sale

Model  EagleTec EA-1325VA
Construction TypeSingle head 3 axis
Working Size1300x2500mm (48"x96")
Feeding Height200mm (7.87")
Other FunctionRe-carving after breakpoint or power failure
LubricationCentral lubricator
Machining Accuracy0.1mm/300mm
Max. Idle Speed35,000mm/min
SpindleItalian HSD spindle, 3.0kw, air-cooled, ER25, 18000rpm (or Chinese air cooled)
CNC ControllerRichauto DSP A11 - 3 axes cnc controller
Vacuum PumpOptional
Driving MotorStepping - 6.0N.M big torque
XY TransmissionHelical rack and pinion - 1.25 modulus
Z TransmissionRolling ball screw with 25mm size
Linear GuideHIWIN or PMI original products
Working Power380VAC/50-60Hz, 3Ph 4 Wires (or AC220V/60Hz, 3Ph)
Package Dimension3100x2060x2100mm (About 13.5CBM)
Gross Weight1200KGS


If you like this 3 axis router table for sale, please get a quote today.
