CNC Router Table 4x8 with Single Italy HSD Spindle

Model: EA-1325C

Category: Woodworking CNC Router

Brand: EagleTec CNC CNC Router Table 4x8 with Single Italy HSD Spindle

Condition: New Condition

Reference Price: U.S.$5850 / SET

Price Range: USD4500 to USD7100 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: production started after order confirmation (PreOrder)

Lead Time: 10 to 15 days

Warranty: 12 months

Payment Method: T/T, Western Union, Money Gram, Paypal

H.S. Code: 84659900.00

Recommendation: CNC Router Table 4x8 with Single Italy HSD Spindle4.7 /5 Based on 45 reviews


Brief Description of CNC Machine for 4x8 Plywood

CNC router table 4x8 has three-axis totally which are X, Y, and Z-axis. So it is also called three axes cnc router. It is equipped with a single Italian HSD spindle (origin: made in Italy). Machining size is 4' x 8' (48"x96"). Max. The machining capacity of this type of router machine is to make 2.5D relief carving or milling. In the CNC machining field, 2.5D means a surface which is a layout of the plane into the 3rd dimension. This is to say, it is a 3d dimension object based on a regular plane. In accordance with this criterion, relief or embossment is 2.5D. 4x8 CNC router table for sale with Italian spindle at an affordable price and best support now!

EagleTec launch the 2020 new design, check on cnc wood router table 48x96

cnc router table 4x8 with italy spindle for sale

Package Details of 4x8 CNC Router Table with Single Italy Spindle

All EagleTec cnc router tables are packed carefully and well before delivery. Guideway and rack will be greased first, then complete machine set is fully wrapped with plastic film, last step it is packed into strong plywood case (Fumigation free). From the feedback of our customers, it is safe for sea shipping to pack machines in this way. Because our packaging is anti-rust, waterproof, and anti-collision.

cnc router table tightly packing first step photo

cnc router table tightly wrapped with plastic film photo

Advantage of EagleTec CNC Router Table 4x8 Kit

• To make the machine more durable, the spindle is adopted 100% original Italy HSD electronic spindle. The designed service life of this spindle is 8 years, the actual lifespan is 5 to 8 years, and some can reach 10 years. Several customers told us that their HSD spindle still works perfectly after 10 years.

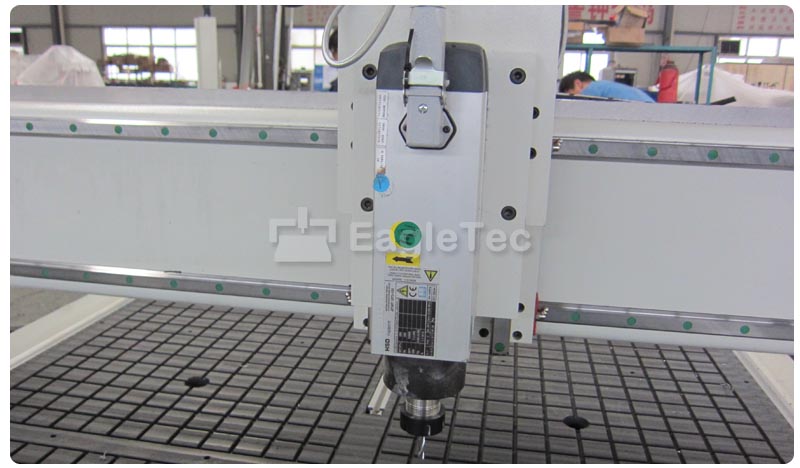

original Italy spindle on cnc router table 4x8 photo

• Considering from user-friendly aspect, the VFD display is mounted on the operation panel of the electronic cabinet, instead of putting it inside. In this way, the operator can easily monitor the running status of the spindle motor through it at any time.

cnc router table 4x8 vfd display on cabinet operation panel photo

• In order to make the machine faster and more durable, we have adopted the best stepper drive in China. YAKO brand, Model. YKA2811MA. With it, the 4x8 cnc router table can acquire an outstanding cutting speed of 25,000mm/min with a stepdown of 12mm on the MDF sheet. And it is nearly impossible for any stepping machine to get a bigger rate than this. If you have an interest, please check out the demo video on this page: 5x10 cnc router cutting MDF with 25m/min speed

cnc router table 4x8 stepper driver yka2811ma photo


Applicable Materials

CNC router table 4x8 machine is ideal for materials such as acrylic, MDF, melamine, phenolic, plywood, HDPE, PVC, foam, and solid wood. (sheet materials not over 4x8 size)

CNC 4X8 Router Table Applicable Industry

General-purpose carving, cutting, or milling.

Quick Details of Plywood CNC Router Table 4x8

• 1300x2500x200mm actual working size (4x8 feet) | smart machine cnc router 4x4 is available as well.

• 100% original HSD spindle from Italy, made in Italy, ER25 collet, 18,000rpm. The average lifespan is 8 years, some even reach 10 years.

• Folin VFD 3.7kw inverter, best and most durable brand in China

• YAKO YKA2811MA stepper driver, YAKO is the best stepper driver brand and YKA2811MA is the most durable model in all YAKO driver models. Run voltage ranges from DC 90V to 110V. Most powerful stepping driver. It is safe for the router to get a high cutting rate of 25,000mm/min.

• High torque 450B stepper motors - 6.0N.M

RichAuto Auto-Now A11 hand-held cnc controller

• Taiwan HIWIN linear guides, original items from Taiwan. The lifespan is 5 to 8 years.

Features of Single Spindle CNC Router Table Kit 4x8 for Sale

• Whole construction is welded with thick-wall steel tubes; processed by vibrating stress relief (VSR) to reduce residual stress, and it is supported by 6legs with adjustable leveling feet.

• Working table is aluminum profile, and the material sheet only can be fixed by clamps. Looking for a vacuum table? Please check out here: 4' x 8' cnc wood router system with vacuum bed

• Independent free-standing electronic control cabinet.

• The X and Y-axis transmission is via helical rack and pinion which gives cnc router table 4×8 kit a long life and good accuracy.

• The Z transmission is via rolling ballscrew.

• Y uses a dual drive, one stepping motor on each side of the gantry.

• Programming Software: Type 3/Artcam/UcanCAM

Technical Parameter of CNC Router Table 4x8

TypeSingle Spindle Wood Router Machine
XY Working Size4’x8’   (1300x2500mm) (4x8 feet, 48x96 inch)
Z Stroke200mm (7.87")
Gantry Height200mm (7.87")
Table TypeAluminum profile with a hard PVC layer
Clamping WayBy T-slot clamps
SpindleHSD, 4HP, air-cooled, RPM range 0-18,000, Made in Italy; 8 years lifespan in average
Inverter Fuling 3.7KW - The best brand in China
Drive MotorStepping motor with big torque, 6.0N.M
TransmissionModule 1.25 helical rack and pinion (X Y); TBI rolling ballscrew 25mm (Z)
Stepping Driver YAKO YKA2811MA with big power, DC90V to 110V, The best model of stepping driver
Max. Fly Speed35,000mm/min
Max. Machining Speed25,000mm/min
CNC ControllerRichAuto DSP A11, hand-held controller, not occupy computer resource
Linear GuidewayTaiwan HIWIN 20mm, 5 to 8 years lifespan
Available Bits Shank Diameter3.175-16mm
Working PowerAC380V/50Hz, 3Ph or customized
Max. Power Consumption7KW
PackageFumigation-free plywood case with strong steel pallet
Net Weight1100KGS
Gross Weight1200KGS
Packing Size3050x2000x2050mm   (12.5CBM)
Optional ConfigurationDust collecting system (includes dust extractor, bracket, and hose)

FAQs Regarding EagleTec 4 x 8 CNC Router Table EA-1325C

Q: What is the maximum thickness of material that can be set on the router table?

A: The feeding height of the machine is 200mm. In theory, as long as the material's thickness doesn't exceed 200mm, it can be set on the router table. In practice, few boards, including plywood and acrylic, are thicker than 50mm. Therefore, it is adequate for various common thicknesses.

Q: What is the warranty for this cnc router table for sale?

A: The warranty for all EagleTec cnc routers is 12 months since the departure date. During warranty, you will enjoy free replacement for all broken parts. When the warranty expires, the replacement part will be charged on the basis of material cost. For more details, please check out here: EagleTec Warranty Term

Q: Can this machine run off 110 volt AC power?

A: It cannot. The machine runs off 220 volts, single-phase power. It's a big watts cnc machine, 110-volt power is not sufficient for it.

Q: What is the lifespan of this CNC Router Table 4x8 for Sale?

A: It is safe to say that, the lifespan of EagleTec cnc machine for 4x8 plywood is 5 to 8 years on average because it is well built in this way:

• All crucial parts and components are using top-quality ones with outstanding durability.

The technic applied to manufacturer and assembly is advanced, scientific, and qualified. What we are really trying to say here is that good technic is essential in the build process of cnc router machines. And usually, this part is what you can not see on a quotation proposal. Kindly pay more attention to that.

Q: Are the instructions in clear, well-written English?

A: Sure. We have focused on this field since 2007. A complete set of user tutorials that are clear and well-written in English would be provided to you along with the machine.

Q: If we need support, what can we do?

A: We are always here to assist you. No matter you need a guide, support, or troubleshooting, just feel free to contact us. Our team will offer you the solution in 24 hours as a maximum. And the solution can be complete by means of PDF, video instruction, desktop remote, or online live chat. For your information, the full set of specific tutorials in English will be shipped along with the machine set. You will learn the tutorials first, and then we will guide you the rest if you still have any questions, whatever from software to hardware. The cnc router table for sale here is an entry-level machine, it is possible to guide you everything out online even you are new to the cnc field.

Q: Are there parts on this machine that have to be replaced after some use? That is, if there are one or more parts that frequently have to be replaced, what are they?

A: The bits are consumables; you'll need to get some more pieces in stock. We will provide spare parts for the vulnerable parts (button, switch, sensor, timing belt) of the machine. Please do not worry. You can get 1 or 2 pieces of linear bearings as spare parts for further maintenance purposes if you want.
