Indexable Triangle Carbide Inserts for Inner Hole Turning

Work Demo of The Tungsten Indexable Carbide Inserts for Turning

Triangle Turning Inserts Applications

Application Field

This tool is ideal for cutting internal holes in different types of wooden materials.

Materials good for

Rubberwood, Chinese toon, cypress, wax wood, birch, ebony, and more.

Applicable Equipment

A majority of woodworking lathes, both CNC and non-CNC.

Features of Triangle Carbide Indexable Inserts

• The free forging process is an exciting technique where we use impact force to shape metal freely between the upper and lower anvil surfaces. This innovative method helps get rid of pesky defects like shrinkage and air holes, ultimately leading to a tool blank with improved mechanical properties.

• Our cnc indexable carbide inserts are super sharp and designed to prevent any chips from sticking, all while giving you a fantastic finish!

• The triangle insert is designed for easy, one-time use, so there's no need to worry about sharpening it for another round!

• Quenching and hardening processes significantly enhance wear resistance through a high-temperature heat treatment. First, we cool the material quickly using water, oil, or other materials, and then we apply high-temperature tempering. This not only makes the carbide inserts turning tool much stronger and harder but also enhances its wear resistance, fatigue strength, and toughness. Plus, the surface ends up looking bright and polished!

• The tool shank's surface is polished with imported diamond composite, making it delicate and shiny.

• The indexable carbide turning inserts are attached to the shank using screws.

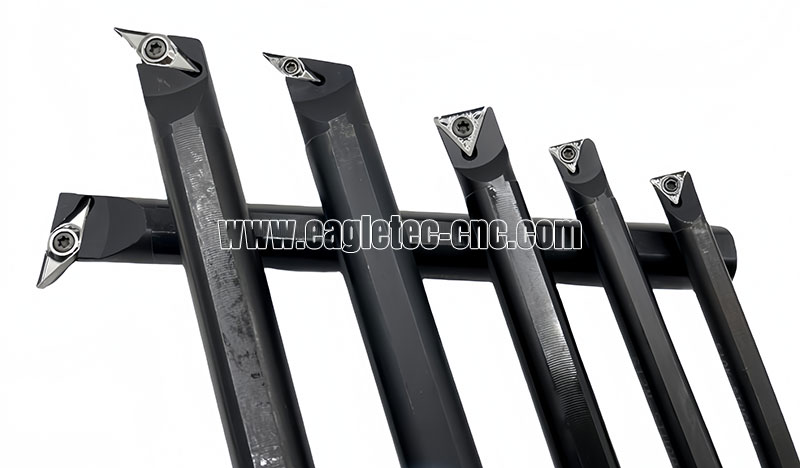

How Many Types of Shanks for Triangle Tungsten Carbide Inserts Are There?

There are two types of tool holders you should know about: one for triangular inserts and another for rhombus inserts. Triangle blades are great for cutting holes, and we've already covered that in detail earlier.

Rhombus inserts are great for boring processes! Most tool holders are designed to fit 20mm blades, but some can also work with 30mm rhombus inserts. The rhombus blade can create holes with a minimum diameter of 27 mm in wooden elements. Feel free to choose the option that best suits your production needs!

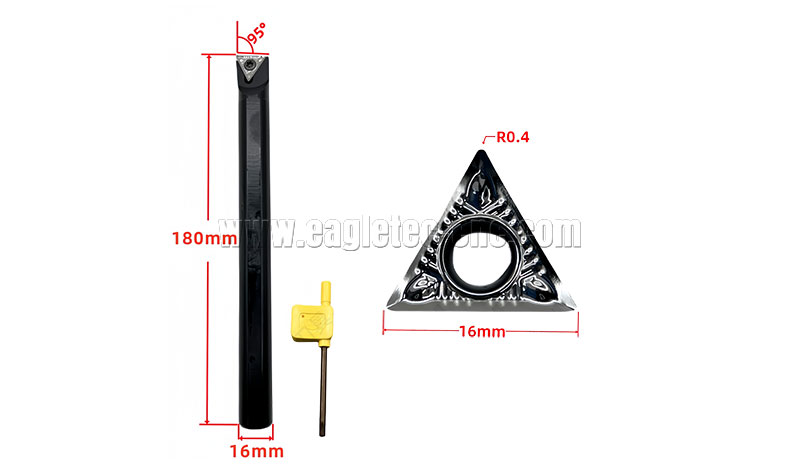

Technical Parameter of Carbide Triangle Inserts for Wood

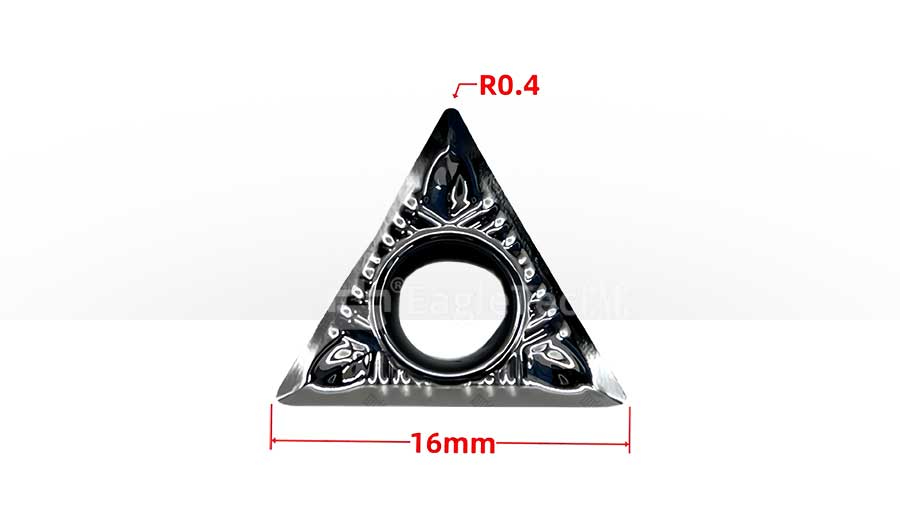

• R: 0.4

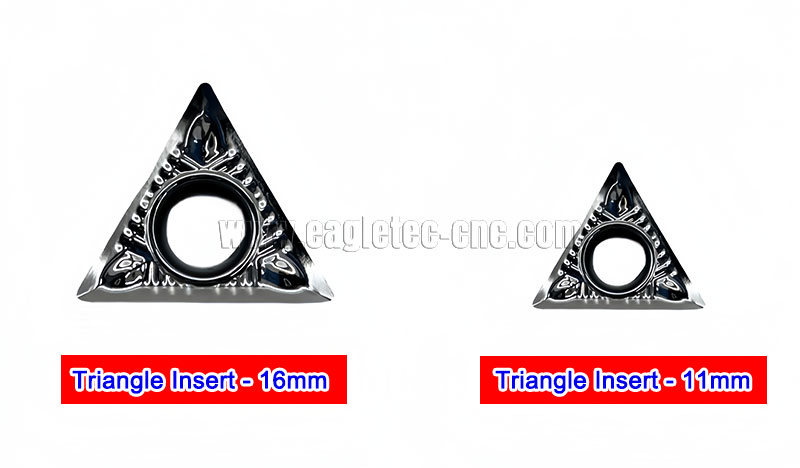

• Insert length: 16mm (best seller)

• Blade Material: carbide (tungsten steel)

• Shank Material: tool steel (sold separately)

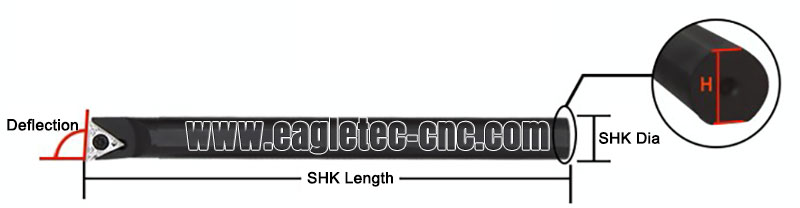

• Tool Shank Dimension: 16x16x180mm

• Minimum hole diameter: 10mm

• Compatible screws: M2.5*6

• Compatible wrench: T8

How To Choose The Right Shank For Your Indexable Carbide Turning Inserts

Delivery Time of Carbide Indexable Turning Inserts

Our inserts and shanks are in stock and eager to find a new home! We're excited to get your order shipped out within 24 hours of your purchase. Thanks for choosing us!

How to Order the Triangle Carbide Turning Inserts?

• Contact Us - For accurate pricing, feel free to reach out using the options available on our website. Please provide the item model you are interested in, the quantity needed, and your location.

• Price Quote - We'd be happy to provide you with a quote! It will include shipping costs based on your location, along with the available payment options.

• Payment - If you decide to go ahead and purchase our triangle carbide inserts, we'd be happy to send you a proforma invoice with our business account details. You can use this invoice to make your payment easily.

• Package Shipment - Your parcel will be shipped within 24 hours via DHL or FedEx! We will make sure to send you a tracking number so you can easily track your package's journey.

If you like the china triangle carbide inserts for sale here, please feel free to contact us.
