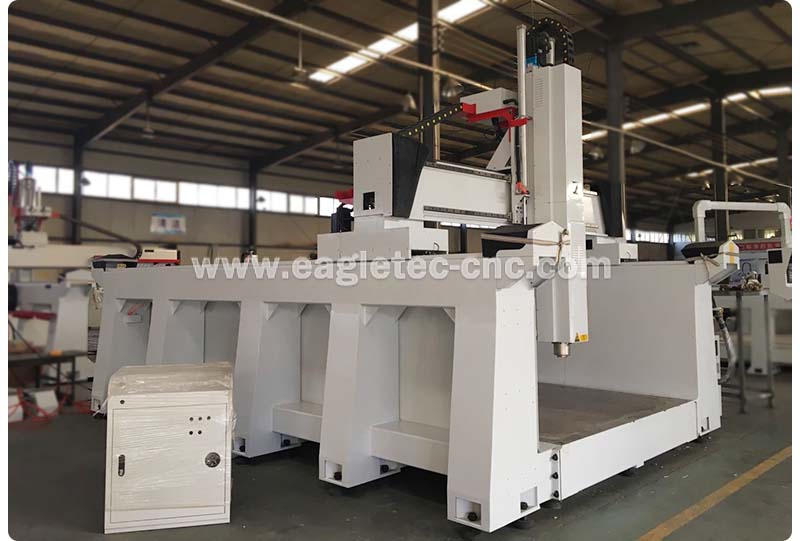

Gantry Miller for Light Material Epoxy Polystyrene

Demo Video - Milling of Aluminum for Pipeline Valve Casting Mold Making with CNC Mill Machine EA-GM2030-3S

For your information, the whole machining process is divided into two stages, roughing and finishing.

Machining parameter details:

Roughing: step down 2.5mm, feeding rate 3,000mm/min

Finishing: step down 1.5mm, feeding rate 2,000mm/min

Advanced Manufacture Technics of EagleTec Gantry Mill for Light Materials

• Every model of EagleTec Mill is designed by our engineers' team with CAD software. Perform force analysis first, then perform construction or structural optimization. The columns, beams, Z-axis, and machine base are all designed in this way. After repeated argumentation, it is ensured that there is no problem before entering the production phase.

• Large parts such as beams, columns, and bases on the machine are machined from a 5-axis CNC machining center (Brand-AWEA) made in Taiwan. A top-quality machine tool can produce high-quality parts.

• Unique working plat design; double ribbed structure; welded with steel and via VSR treatment; It solves the problem that the large workbench is prone to deformation such as the central depression after long-term use, which greatly improves the load-bearing capacity of the workbench.

• Professional assembly platform is applied to assemble the Z-axis; the dial gauge is applied to test the machine's verticality and levelness, and the laser interferometer is applied to correct the linear guideways mounting accuracy.

Top Level Configuration of our Gantry Mills for Polystyrene Epoxy Wood Materials

• The outstanding feature of the gantry mill is that the spindle is a mechanical type instead of an electronic one; This is more suitable for the mold manufacturing industry. The matching spindle motor is a 7.5kw super synchronous AC servo motor.

• The absolute value AC servo system is used as the driving unit of the three motion axes. The combination of servo and SYNTEC cnc system makes the motion drive system a precise closed-loop control that ensures diagnostics of technical parameters of operation of the drive assemblies and units during machine operation for the purpose of no-failure operation of machine under the predetermined process conditions.

• Taiwan's SYNTEC CNC system is used as the gantry miller machine controller, and it is equipped with a cantilever cabinet for the operator to operate the machine. Control program input and output from the system panel, USB flash disk, and computer.

• It’s an industrial class system with programming options needed for processing and creating the controllers of linear-circular and other types of interpolations and the possibility to operate in the manual, automatic and interactive mode of operation.

• Steel plate table and magnet clamping method; The clamping method is various and the clamping is powerful.

Application of Mold Making CNC Gantry Mill Machine

Industry

This CNC gantry miller is perfect for light material casting moldings fabrication.

Materials

Good for light materials such as aluminum, epoxy, resin, Styrofoam, Polystyrene, wood, EPS, EVA, Dense foam, and more.

Quick Details of Styrofoam Working Gantry Mill for Sale

• 3 Axis Gantry Mill

• 2,000x3,000x1,000mm Machining Size

• BT40 mechanical spindle, with 7.5kw super synchronous AC servo motor

• Absolute value servo system as a driving unit for X Y Z

• Taiwan SYNTEC numerical controller

• 35mm linear guides

• Steel working table

• Automatic central lubrication

• Good for light materials

Technical Parameter of Epoxy Working Gantry Miller

If you like our gantry miller, please contact for free proposal now.
