Small CNC Gantry Drilling Machine for Steel Flanges Making

Small Gantry Type CNC Drilling Machine in Action

Features of China CNC Gantry Drilling Machine for Flanges Making

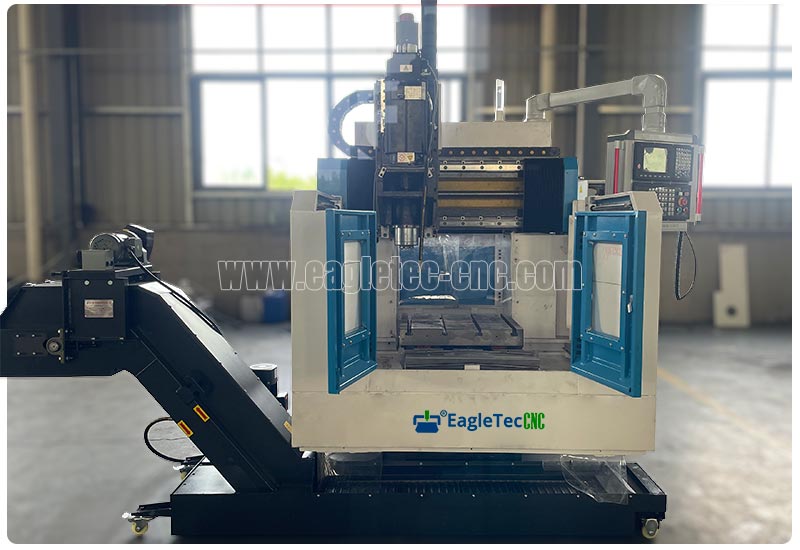

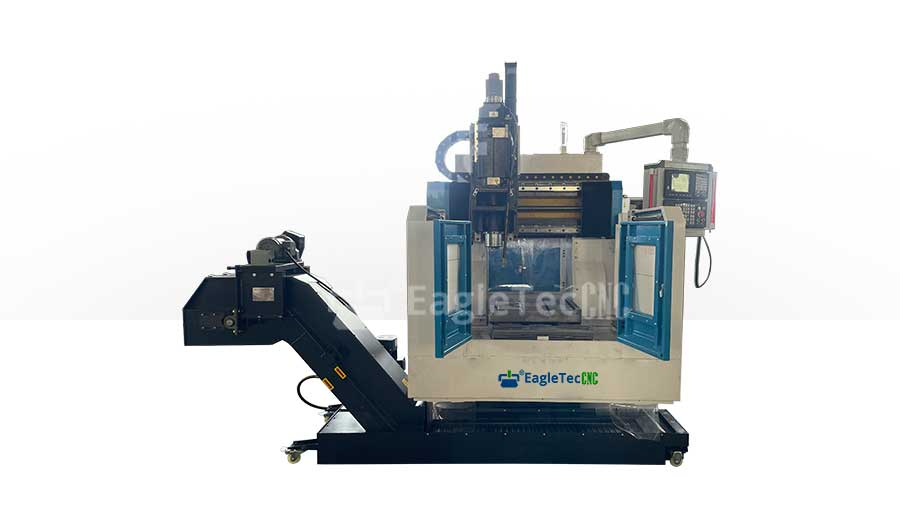

• The EGT-0606MD is a compact CNC gantry drilling and milling machine. It takes up a small footprint while still being capable of handling all your production needs for standard-sized flanges.

• To effectively tackle the machining needs of standard-sized flanges, our machine comes equipped with a BT40-120 long-nose mechanical spindle. It's designed to ensure smooth and efficient operation!

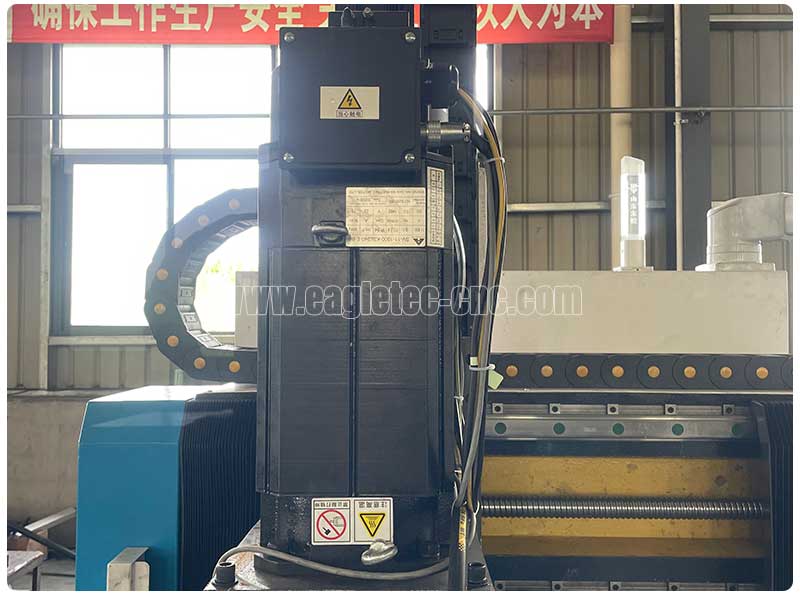

• The mechanical spindle is powered by a robust 11 kW AC servo motor that delivers high torque. You can easily adjust its speed from 30RPM all the way up to 3000 RPM, giving you plenty of flexibility for your projects!

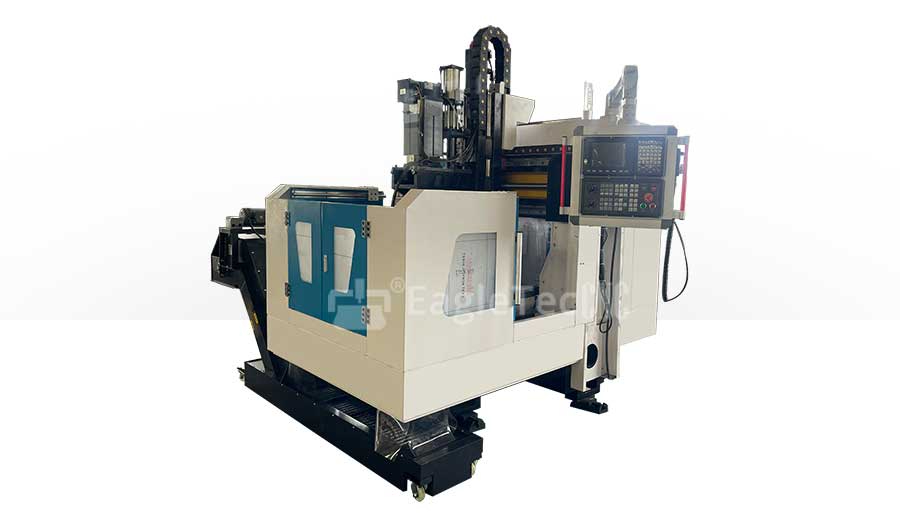

• This CNC gantry drilling machine has a sturdy fixed beam paired with a moving table, which makes it really stable and strong. This friendly design not only enhances its reliability but also helps ensure that drilling and milling operations are precise and accurate!

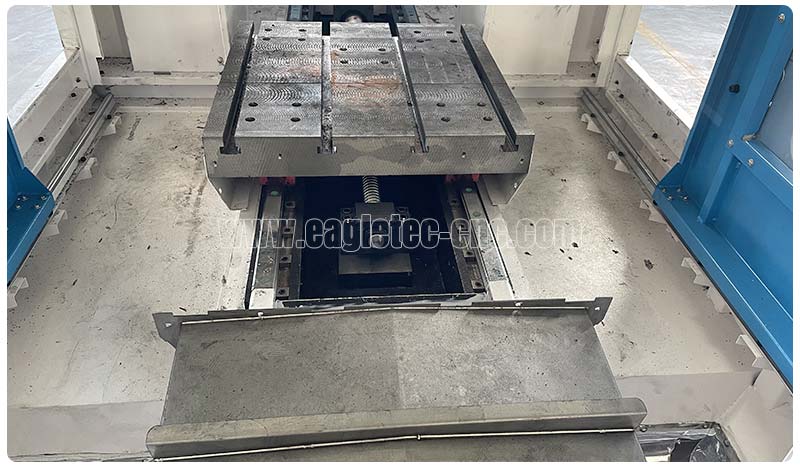

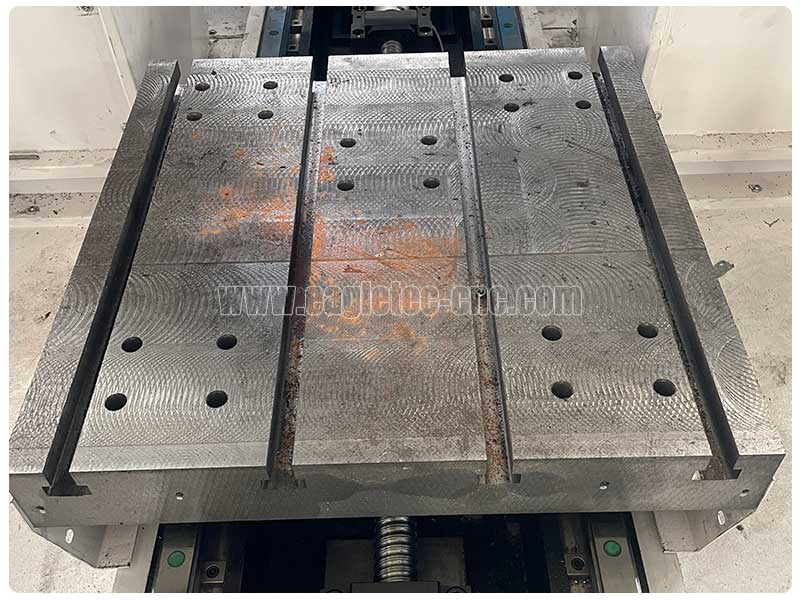

• This workbed is built from cast iron and includes convenient milled T-slots and holes for easily attaching fixtures.

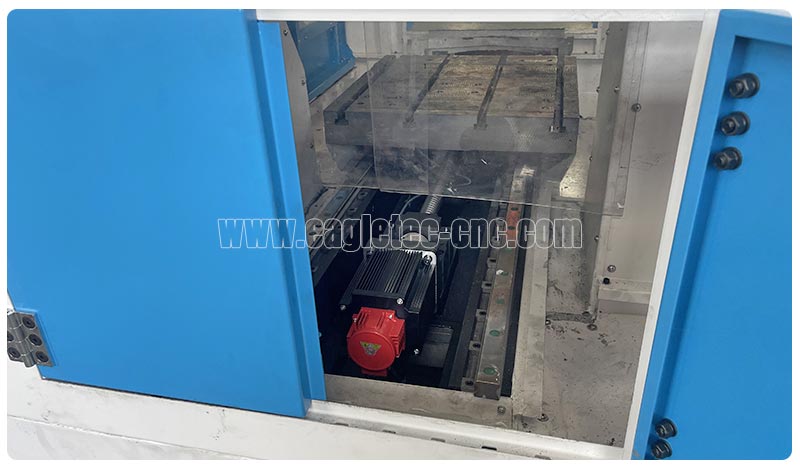

• The bed is powered by a reliable AC servo motor, and the transmission is handled by a smooth 40 mm ball screw. This combination makes it both versatile and durable for all your jobs!

• Our operating system is a reliable industrial controller tailored for CNC drilling machines. It comes with a user-friendly keyboard panel, a clear screen, and a handy handheld pulse generator. For our international customers, we'll make sure to include an English control panel and set the system language to English ahead of time, so you'll feel right at home operating it!

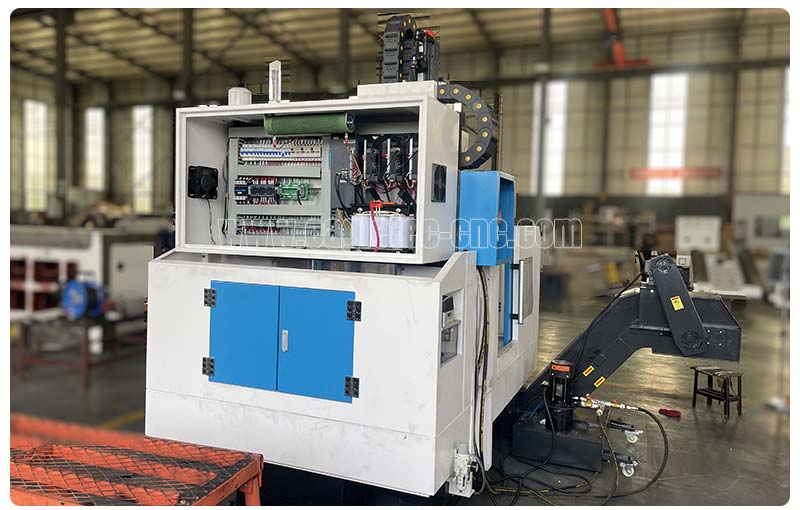

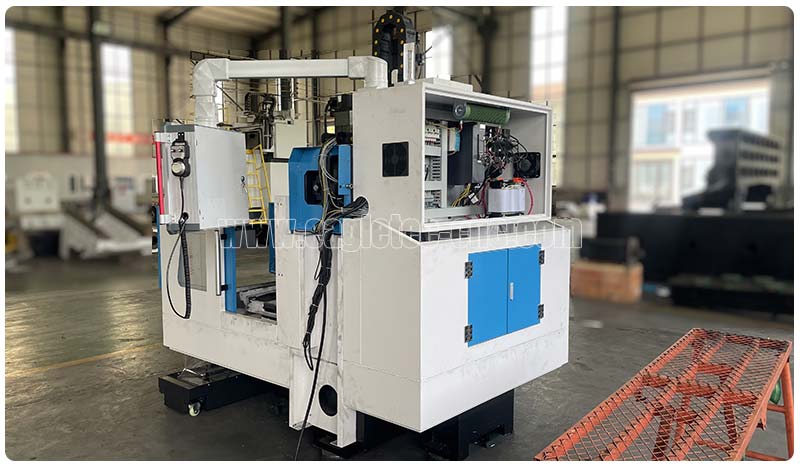

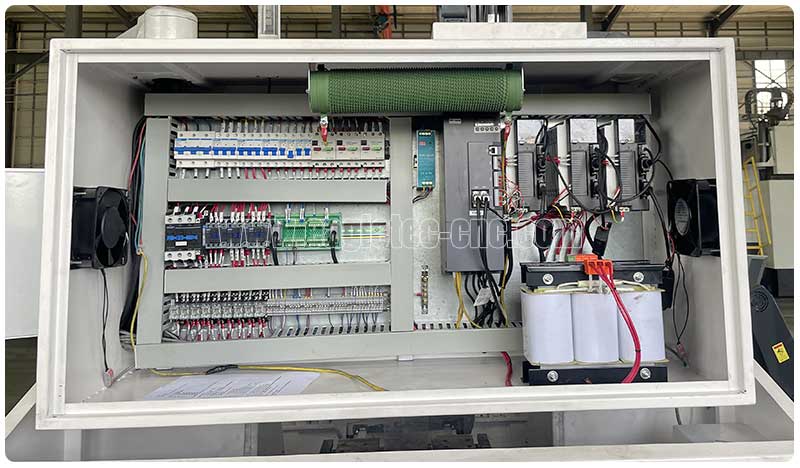

• All the important electrical components are safely stored in a well-sealed electrical cabinet. To keep everything clean and in good shape, please make sure to keep the cabinet door closed while the machine is running. This helps protect the components from any cutting fluid or debris.

• The Small cnc machine for metal is surrounded by protective doors, which help keep everyone safe by preventing any broken chips from flying out of the processing area. This thoughtful design ensures that operators are well-protected from potential injuries.

Small CNC Gantry Type Drilling Machine Application

Applicable Field

This machine is ideal for fabricating standard-sized flanges and small metal parts.

Client Groups:

CNC milling machine shops, CNC machining service suppliers, and flange manufacturing plants.

Applicable Materials for Gantry Type High Speed Drilling Machine

Steel, Stainless steel (304 / 316), Carbon steel, Alloy steel, Copper-nickel, Inconel, Duplex, Iron, Bronze, brass, and other metal materials.

Quick Details of Best Small CNC Machine for Metal

• Work Envelope: 600mm x 600mm

• Gantry Height: 600mm

• Gantry Width: 600mm

• Spindle Nose to Table: 200mm ~ 600mm

• H250 Casting Construction

• Mechanical Spindle: BT40-120

• Internal Cooling: Yes

• Spindle Motor: AC Servo 11KW/3000RPM (Brand: KEYUAN)

• XYZ Drive: AC Servo

• CNC Operating System: KEYUAN

• XYZ Transmission: Ballscrew

• Drilling Capacity: φ3-φ30

• Tapping Capacity: M3~M16

• Chip Removal Machine: included – in the front of the gantry type cnc drilling machine

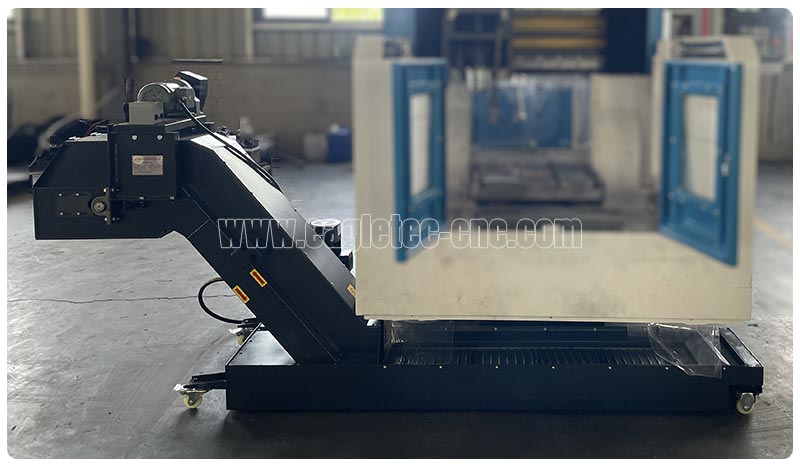

Chip Removing Machine Coming Along with the CNC Gantry Drilling Machine

Our machine comes with a handy chip removal device right on the front!

Packing List of CNC Machine For Small Metal Parts

• Gantry type high-speed drilling machine – 1 Set

• Chip Removal Machine – 1 Piece

• USB drive with a complete set of user manuals and instructions – 1 Piece

• Standard Accessories (M20 T-block, Press Plate, Air Gun, Tool Taper, Adjusting Shim, BT40 Knife Lock Seat, Structural Adhesive,  Pull Studs, Cutterhead, High-pressure Water Gun, U drill / hard alloy inner cooling drill bit , Blade, Collets, BT40 Tool Finger, and Relay.)

Technical Parameters of Best Metal CNC Machine For Small Business

Q & A Regarding China Gantry Plate Drilling Machine

If you like the China gantry plate drilling machine for sale here, feel free to reach out today for a free proposal!
