Model: EGT-2020D
Category: CNC Drill Mill
Working Envelope: 2000x2000mm
Applications: Drilling, Face Milling, Tapping
N.W.: 10 Tons
Brand: EagleTec CNC
Condition: Brand New
Reference Price: USD 69,800 / SET
Price Range: USD55000 to USD79000 / SET by Different Configuration
Supply Ability: 60 Sets Monthly
Availability: PreOrder - Put into production on receipt of down payment
Payment Method: T/T
1-Year Limited Warranty for the Whole Machine Set
Recommendation:
4.9/5 based on 11 reviews

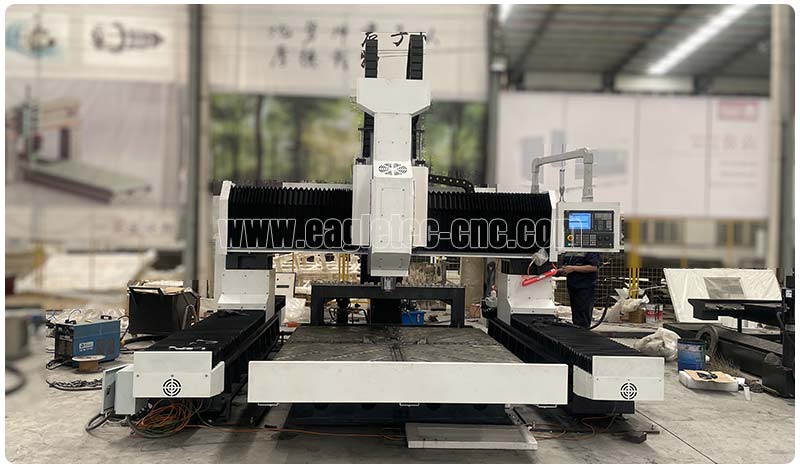

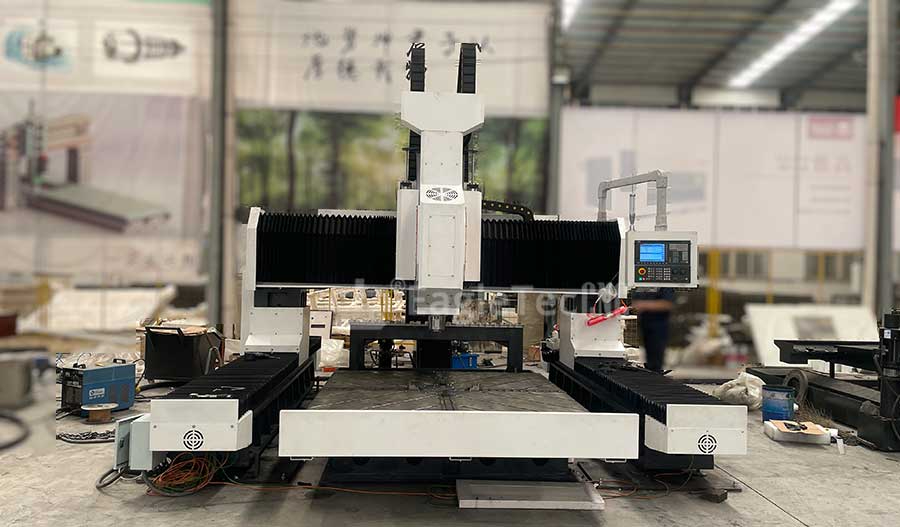

Let's start by explaining the design inspiration behind this CNC milling machine. Typically, the width and height of this type of machine exceed the dimensions of a standard container. As a result, we often opt for a flat rack for transportation. Did you know that transporting a flat rack can cost three to four times more than a standard container? Given this significant difference, instead of spending so much on transportation, why not save those costs and use that money to upgrade the machine's configuration level? That is, spend money where it counts. Our team came up with a clever detachable design so the metal cnc machine can easily fit into a standard shipping container. By saving on shipping costs, we were able to invest in some fantastic upgrades! That's why you'll notice that the control system, power milling head, and motion system all feature top-quality cnc milling machine components from Siemens.

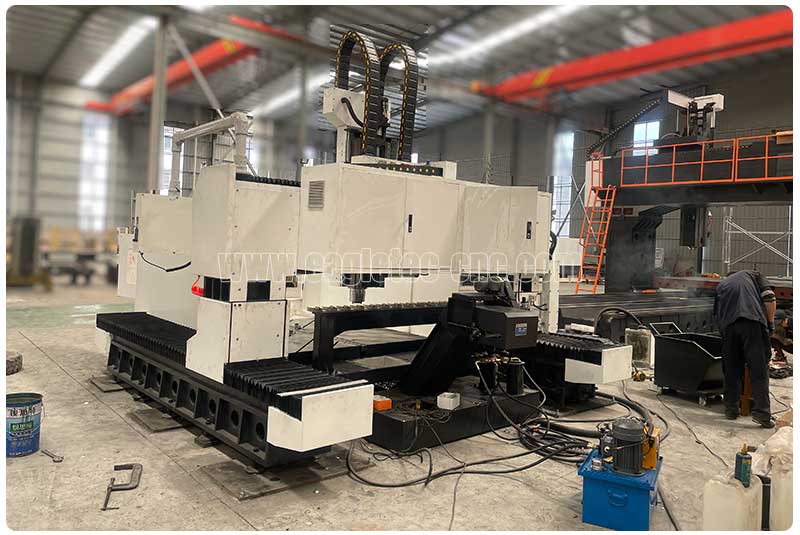

The workbench can be detached from the gantry, and the crossbeam can be separated from the two side columns. This means we can break the machine down into three parts! We'll carefully pack each of these parts into its own wooden box, making it possible to load the machine into a standard container.
A: Yes, we will. We are happy to assist with the installation. We will provide detailed installation instructions, technical drawings, videos, pictures, and other helpful materials. Additionally, we offer paid on-site installation services if you prefer hands-on assistance. Just pick the option that works best for you!
• The mechanical spindle comes from a fantastic Taiwanese brand called Volis, and it's equipped with internal angular contact bearings for great performance! The spindle taper we're working with is a BT50, and it has a rated torque of 190 N·m.
• This CNC mill comes with a milling power head, and it's powered by a reliable Siemens 22 kW absolute value servo motor.

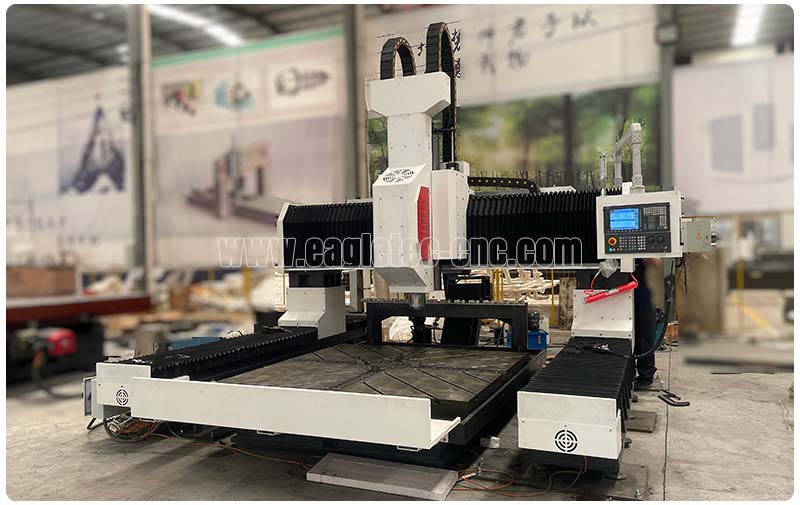

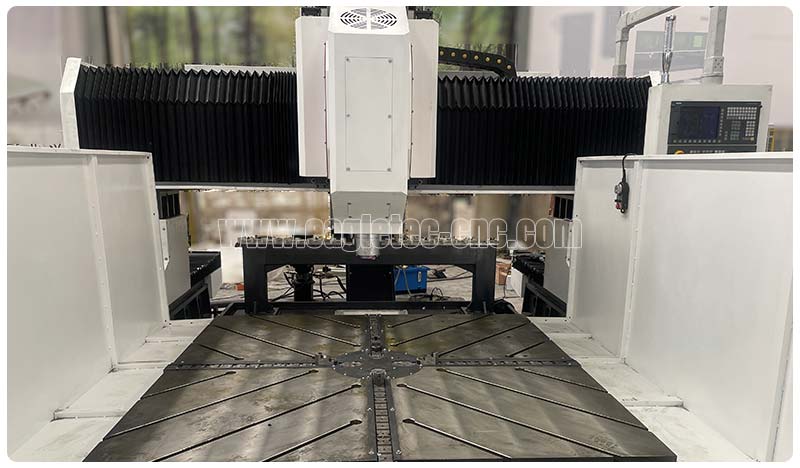

• The machine features a fixed workbed and a movable gantry design. The frame, column, worktable, and gantry are all made from HT250 casting, which gives them their sturdy structure. Before processing, we heat-anneal the materials to make them just right. After the rough processing, we carry out a secondary annealing to help relieve any stress. Finally, we finish with fine processing to make sure the machine tools stay accurate and reliable. The machine base is equipped with a sturdy cast iron worktable that comes with nicely milled T-slots. Plus, the tabletop is CNC processed to guarantee precision and accuracy.
• This equipment comes with both internal and external cooling systems to keep your tools in top shape! When you're drilling at high speeds, it uses internal water cooling to keep things running smoothly. For light milling, we rely on external cooling to help out.

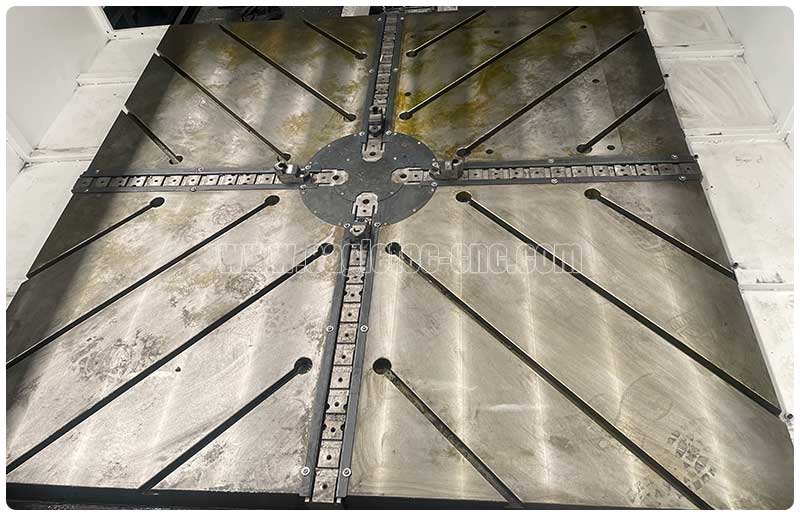

• The milling cnc machine is particularly designed for drilling and milling tasks on flanges, heat exchangers, and tube sheet components. So, it features a user-friendly self-centering hydraulic chuck that makes it easy to clamp round workpieces right on the table. It's designed with your needs in mind!
• The EagleTec CNC milling machine for metal is pretty impressive, featuring a total of 3 CNC axes! The sturdy base is designed with heavy-duty linear guides, which let the gantry move smoothly along the y-axis. Plus, the crossbeam comes with its own set of linear guides, allowing for easy lateral movement on the x-axis. The sliding plate has linear bearings, and the vertical ram milling power head is equipped with guiding rails that help it move up and down along the z-axis. Best of all, all three axes—x, y, and z—are driven by servo motors and ball screws, ensuring precise and reliable operation.
• The CNC operation system utilizes the German Siemens 828D, along with high-precision servo motors from the same brand, ensuring top-notch performance. You'll love the easy-to-use RS232 interface and vibrant color display, which comes with an English operation option. You can conveniently input workpiece files on-site or through an external USB. Plus, it includes a full digital high-speed handwheel to make your operations smoother and more efficient.
• This cnc 3 axis milling machine comes with a fantastic Taiwan-made automatic lubrication system that keeps everything running smoothly! It automatically lubricates the guide rails, ball screws, racks, and other moving parts without missing any spots, helping to extend the machine's lifespan. Plus, the X-axis and Y-axis are protected with dustproof covers, and you'll find waterproof splash shields around the workbench to keep everything nice and clean.
• This industrial CNC mill features a filtration system designed for its internal cooling system, which does a great job of keeping impurities out of the cutting coolant. The internal water spray system helps prevent iron chips from getting tangled with the tool during processing. This not only reduces wear on the tool but also helps it last longer and gives the workpiece a nice finish! Using high-pressure water for chip removal at the tool tip is a great way to keep your workpiece surface safe and sound! It also helps protect the high-speed rotary joint from impurities, ensuring everything runs smoothly. This not only improves the quality of your workpiece but also boosts your overall efficiency.

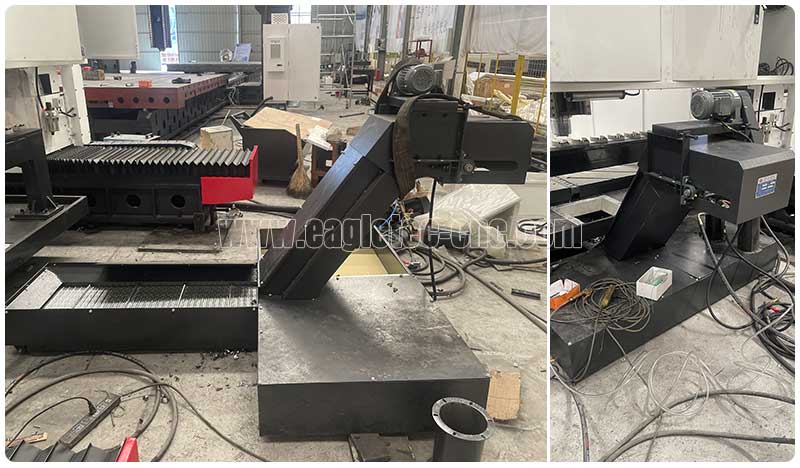

• This cnc mill for sale comes with a handy automatic chip conveyor that has a flat chain design, making it super efficient. At the back, you'll find a filter to keep things clean. There's also a cooling pump located on one side, and it connects to the inner cooling filtration system with a hose. The coolant makes its way into the chip conveyor, where a helpful lifting pump moves it to the inner cooling filtration system. From there, a high-pressure cooling pump gets to work, circulating the filtered coolant to keep things cool during the cutting process. The chip conveyor system includes a convenient trolley for transporting iron chips.
This machine is perfect for tackling drilling, light milling, facing, and tapping tasks on flanges, heat exchangers, and tube sheet components.
CNC milling machine shops, CNC milling service suppliers, and manufacturing plant.
Steel, SS, Duplex, Iron, and other metal materials.
• Work Envelope: 2,000mm x 2,000mm
• Gantry Height: 1,000mm
• Gantry Width: 2,200mm
• Spindle Nose to Table: 400mm ~ 1,000mm
• H250 Casting Construction
• Mechanical Spindle: Volis BT50-150
• Spindle Motor: Siemens AC Servo 22KW/3000RPM
• XYZ Drive: Siemens AC Servo 2.9KW
• CNC Operating System: Siemens 828D
• XYZ Transmission: Ballscrew
• Drilling Capacity: φ1-φ60
• Tapping Capacity: M3~M28
• Metal CNC milling machine x1
• Chip Removal Machine x1
• Standard Accessories (Press Plate, Air Gun, M20 T-block, Adjusting Shim, High-pressure Water Gun, BT50 Knife Lock Seat, Structural Adhesive, Tool Taper, Cutterhead, Pull Studs, Blade, U drill / hard alloy inner cooling drill bit , Collets, BT50 Tool Finger, and Relay.)
• USB drive with a complete set of user manuals and instructions x1

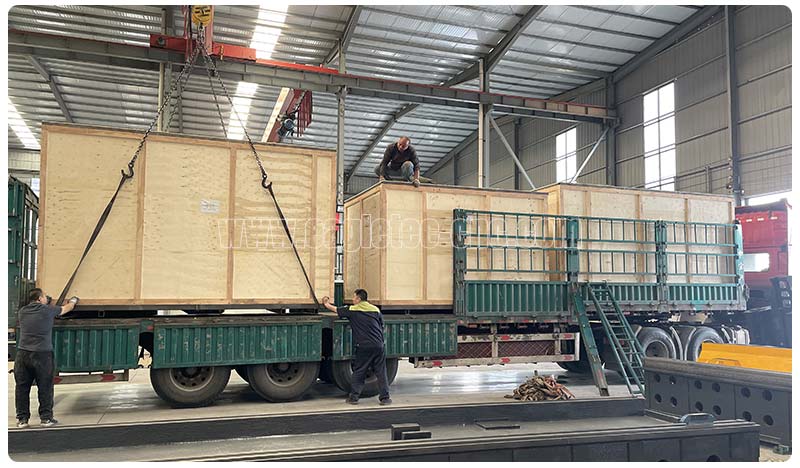

Your machine will be shipped in a semi-disassembled state! It will be carefully divided into three large pieces and packed into three sturdy crates. Once everything is ready, we'll load all the wooden boxes into a standard 40-foot container for its journey overseas. We'll make sure it arrives safely!
| Model No. | EGT-2020D |
| Type | CNC Mill |
| Working Envelope | 2,000mm x 2,000mm |
| Gantry Height | 1,000mm |
| Gantry Width | 1,500mm |
| Working Table Size | 2,000mm x 2,000mm |
| Drilling Capacity | 1mm ~ 60mm (Diameter) |
| Tapping Capacity | M3-M28 |
| Max. Load Capacity for Bed | 8,000kg/m2 |
| Vertical Ram Mill Power Head | 1 |
| Spindle nose to the worktable distance | 400mm ~ 1,000mm |
| Tool Taper | BT50 |
| Spindle Torque (Rated/MAX) | 190N.m/235N.m |
| Spindle RPM | 30 ~ 3,000 |
| Spindle Motor | Absolute value AC Servo 22Kw (Siemens) |
| Spindle | Mechanical BT50-150 (Vilos) |
| Z Stroke | 600mm |
| XYZ Motion | Absolute value AC Servo 2.9Kw (Siemens) |
| Machining Rate | 1,000mm/min ~ 9,000mm/min |
| Base | Cast Iron HT250 |
| Beam/Column | Cast Iron HT250 |
| Machine Head | Cast Iron HT250 |
| Worktable | Cast Iron HT250, with T20 t-slots |
| XYZ Linear Guides | Roller linear guides - 45mm |
| XYZ Transmission | Ball screw Dia 50mm Pitch 10mm |
| Numerical Controller | Siemens (in English) |
| High Pressure Pump | 2.3Mpa |
| Driver | Siemens |
| Inner Cooling | Yes |
| Communication Command | G code |
| Compatible Programming Software | MasterCAM, PowerMILL, UG |
| Lubrication System | Automatic type |
| Chip Removal Machine | Included, chain type |
| Footprint | 4,300mm x 3,500mm x 3,000mm |
| Net Weight | 10,000KGS (about) |
| Package Way | SKD on Pallet (Semi Knocked-down) |
| Package | Plywood Case with robust pallet for long term sea shipping |
| Applications | Drilling, Milling Facing, Countersinking, Threading |
A: A CNC milling machine is a milling machine that operates using electronic digital signals. It's basically a high-tech upgrade of a traditional milling machine. Both types share similar processing technology and structure. CNC milling machines come in two main types: those without a tool magazine and those that do. The ones with a tool magazine are often called machining centers.
A: CNC milling machines come in all shapes and sizes! While the mechanical frame is generally quite similar, the real variety comes from the electrical parts. Because of this, you can usually find cnc milling machine price between USD 35,000 and USD 270,000, depending on their unique features.
A: Here's a friendly guide on how to operate a CNC milling machine:
Step 01. Please create the tool path program following the production requirements, and don't forget to save your work!
Step 02. Turn on the equipment.
Step 03. Set your workpiece on the workbench and give it a friendly squeeze with a clamp to hold it in place!
Step 04. Go ahead and pick the right tool for your machining task, then just install it!
Step 05. First, import the processing program into the machine's control system. Then, set the processing parameters, and you're all set to start the automatic processing. Enjoy a smooth operation!
A: As a reliable cnc milling machine manufactures or suppliers, we are pleased to offer a 12-month warranty on our machines! If you encounter any issues with damaged parts caused by production or quality defects during the warranty period, we will happily provide replacements at no charge. Additionally, our friendly online technical support team is always available to assist you whenever you need help!
A: To order your milling machines cnc, we kindly ask for a 40% down payment. Once we have that, we'll purchase materials and put your order into production right away! When your machines are ready, we'll share some exciting photos and testing videos with you. Then, you can settle the remaining balance, and we'll take care of the shipment. That's the process for you to buy cnc milling machine from EagleTec CNC.
If you like the affordable CNC milling machine for sale here, feel free to reach out today for a free proposal!
