The four-jaw self-centering hydraulic chuck is a fantastic clamping tool for CNC drilling and milling machines! You might be wondering if you should add one to your machines. Well, it really depends on what you're working with. Not every machine needs this chuck, so it's all about the specific projects/parts you are manufacturing.
In the world of manufacturing, especially when it comes to essential components like flanges, valves, and tube sheets, there are a few key ingredients that really matter: precision, efficiency, and stability. These parts all have something in common—they're disc-shaped! Drilling and milling are standard processes used in their production.

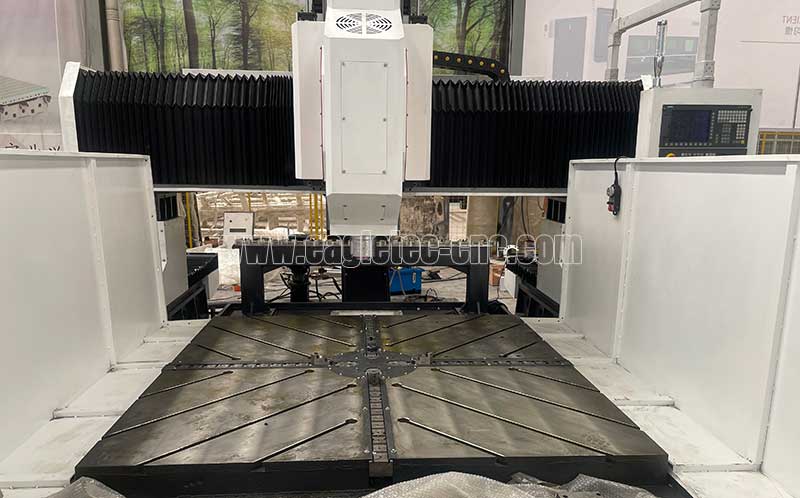

Using a CNC drilling and milling machine equipped with a hydraulic four-jaw self-centering chuck, we can process our workpieces with amazing precision and efficiency. This not only boosts the overall quality but also helps us improve our pass rate. It's a fantastic way to get great results!
Flanges are essential components in pipeline connections, and they require a high level of precision in the flatness of their sealing surfaces as well as the accurate placement of bolt holes. That's where the hydraulic four-jaw self-centering chuck comes in! It's super versatile and can easily adjust to fit flange blanks of all shapes and materials. Whether you're working with standard carbon steel or corrosion-resistant stainless steel, this chuck will securely hold your flanges in place.
The self-centering feature of the chuck makes alignment super easy! It completes the process in just a few seconds, which really helps to cut down on clamping time. When using a CNC drilling machine for flange fabrication, it's important to have a stable clamping force while milling the flange surface. This helps keep flatness errors really small! When we drill, precise positioning ensures that each hole is almost perfectly placed, which means we meet all those strict industrial standards. This process allows us to produce quickly and accurately in large quantities, ultimately lowering costs and boosting profits. It's a great way to stay competitive!
The valve structure has various intricate parts that all work together, including the valve body, valve cover, and valve core. When working with irregularly shaped parts like valve bodies, clamping them using traditional methods can be tricky and often leads to positioning errors. Luckily, the hydraulic four-jaw chuck comes to the rescue! It can be adjusted to fit the unique contours of the valve body, making the clamping process much easier and more reliable.
When milling the valve sealing groove, it's important to keep a steady and uniform clamping force from the chuck. This helps prevent any vibrations from the cutting process, ensuring that the groove walls are nice and smooth, and the dimensions are spot on. As a result, you'll get a much better sealing performance for the valve! Plus, during drilling and tapping, the self-centering feature makes sure the valve core fits snugly with the valve seat.
The tube sheet is an important part of the heat exchanger, filled with lots of holes for installing heat exchange tubes. How precisely it's made really matters because it directly impacts how well the heat exchanger works and how long it lasts!
The hydraulic four-jaw self-centering chuck is great for holding the tube sheet blank securely! When we start multi-hole processing on the CNC drilling and milling machine, the strong clamping really helps keep everything stable. With our advanced CNC system and accurate chuck centering, we can follow the drilling sequence, hole size, and hole spacing exactly as designed. This means we can avoid any pesky quality issues like tube hole deflection or variations in hole size.
Additionally, using rapid clamping makes the turnover process for the tube sheet much more efficient during mass production. This means that heat exchangers can be produced more quickly, which helps reduce the pressure on manufacturers in the refrigeration, chemical, and other industries when it comes to delivery times.
Looking at how disc-shaped workpieces are processed in the three industries, it's clear that CNC drilling and milling machines with hydraulic four-jaw self-centering chucks can really make a difference. These CNC drill machines tackle the efficiency and precision challenges that often come with older processing methods. By using them, companies can boost their production efficiency and improve product quality, which ultimately helps them stay competitive. It's an exciting way to enhance operations and keep up with industry demands!
