CNC Wood Milling Machine for MDF Cutting & Carving for Sale

Model: EA-1325SV

Category: Wood Router Machine

Brand: EagleTec CNC

Condition: New Condition

Reference Price: U.S.$5900 / SET

Price Range: USD4800 to USD9500 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: Put into production after order confirmation (PreOrder)

Lead Time: 10 to 15 days

Warranty: 12 months

Payment Method: T/T, Western Union, Money Gram, Paypal

H.S. Code: 84659900.00

Recommendation: 4.8 /5 based on 86 reviews



The 4x8 CNC wood milling machine with Italian HSD air-cooling spindle here commands a good market in the Middle East, including Kuwait, Bahrain, UAE, Qatar, etc. It is engineered to the fast and accurate process of cutting, milling, and carving operations in MDF or solid wood boards. So, it is always applicable to fabrication of wooden doors, MDF door panels, and cabinet. In addition to woodworking utilization, a 4x8 router is also a good option for the sign-making or crafts field. EagleTec wood CNC milling machine for MDF for sale at affordable prices and best support now!

If 4'x8' bed size is okay for you, let's go to next part; if not, you may have an interest in 5x10 cnc router table or 4x4 cnc router with vacuum bed

4x8 cnc router from EagleTec – photo

Advantages of EagleTec Wood CNC Mill for MDF Cutting & Carving Application

• The 4x8 CNC Router for sale here is equipped with original Italian HSD air-cooling spindle, model is AT/MT 1073-120 3.0KW, ER25 collet, 18000rpm.

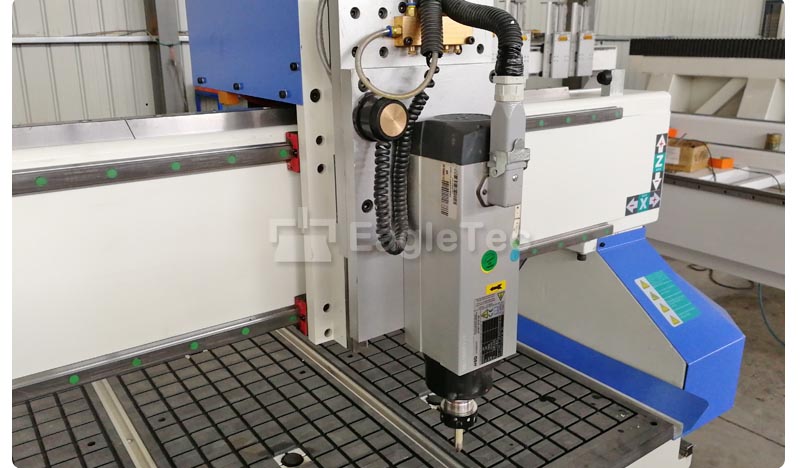

Italy hsd spindle on 4x8 cnc router machine – photo

Q: What are the pros and cons of using Italy HSD spindle on a wood milling cnc machine?

A: There are two benefits: first, using HSD air-cooled spindle will not get water circulation cooling system involved; so, from an operation perspective, it is simple in comparison with a liquid cooling one; second, original Italy HSD spindle is outstanding on durability, it can work perfectly for 5 to 10 years. And this lifespan is nearly impossible for a Chinese air spindle.

Coming to the cons, it costs much more money than a Chinese one. That's it.

If the Italian spindle is not necessary for you, please check another machine out: 4x8 cnc router for sale with water-cooling spindle

• User-friendly design, to monitor the running state of the spindle easily, we adopt the external inverter display and installed it on the control cabinet operation panel; A vacuum pressure gauge is designed on the 4x8 cnc machine front cover for purpose of checking vacuum work condition easily.

external inverter display and vacuum pressure gauge on 4x8 cnc router – photo

• To make machine durable, Z-axis adopts the original TBI rolling ballscrew from Taiwan. As every woodworker knows, when to do carving jobs, z-axis will go up and down very frequently, a good quality rolling ballscrew is essential and necessary for a durable machine. Otherwise, it will be worn severely very soon.

TBI rolling ballscrew on 4x8 cnc router z axis – photo

• Our 4x8 cnc milling wood machine has a central lubrication system for the lubrication of all linear bearings; Regular lubrication can effectively extend the service life of the linear guideways and bearing. This is a useful tip we should keep in mind.

• With tool calibration sensor.

• CNC controller is RichAuto Auto Now A11, which is an independent hand-held controller. The machine is directly controlled by the handle and does not require a computer.

• The proximity switch adopts the Omron brand with excellent durability.

central lubricator tool sensor richauto controller proximity switch on 4x8 cnc router – photo

Diligent Package Details of EagleTec CNC Wood Milling Machine for MDF

• In order to avoid rust, put anti-rust oil on the rack and rail, and then cover it with wrapping materials.

EagleTec 4x8 cnc router rack and rail are tightly covered by plastic wrap – photo

• The whole 4x8 cnc machine set including all accessories is put on a strong steel pallet.

EagleTec cnc router on pallet – photo

• Complete cnc mill for wood is packed in plywood case.

EagleTec 4x8 cnc router packed into plywood case – photo

Quick Details of 4ft x 8ft CNC Wood Mill Machine

• 4ft by 8ft working size (4x8 feet, 48x96 inch)

• Original Italy HSD Spindle, air cooling, 3.0KW, 18000RPM, ER25. Model. AT/MT1073-120. It works perfectly for 5 to 10 years.

• Fuling 3.7KW inverter - the best one inverter in China

• NEMA34 86BYGH450B stepping motor - big torque of 6.0N.M

• YAKO YKA2811MA stepper driver - Running power is DC90V to 110V, strong enough to acquire a cutting rate like 25m/min

• RichAuto A11 independent hand-held cnc controller, no occupy computer resource.

• T-slot vacuum holding table

Application of 4x8 Wood CNC Milling Machine for Sale

Applicable Materials

All kinds of wood, MDF, PVC, acrylic, foam, and more.

Applicable Field

Custom wood cnc milling, woodworking, sign making, etc.

Features of CNC Milling Wood Machine

• Machine base is welded with thick-wall square tube, then via VSR (vibrating stress relief) treatment the excess stress of the base is released, thereby increasing the rigidity of it.

• The beam is made of steel. Steel beams are superior to aluminum because they inhibit and absorb the forces generated during the cutting process.

• Y-axis is dual-motor drive, more powerful.

• XY axis transmission adopts helical rack gear transmission.

• Applicable software for this machine: ArtCAM, Aspire, UcanCAM, Type 3 and more.

• The machine has power-off and breakpoint continuation.

Technical Parameter of EagleTec Wood Milling Machine CNC

Model No.EA-1325SV
TypeWood CNC Router
XY Working Size4x8 feet (1300x2500mm)
Z Feeding Height200mm (7.87")
Z Stroke200mm (7.87")
Electric SpindleItaly original HSD spindle, 3.0kw, air cooling, ER25
Variable Frequency   DriveFuling 3.7kw - best inverter in China
XYZ Motion MotorNEMA34 Stepping, 86BYGH450B, big torque - 6.0N.M
Stepper DriverYAKO YKA2811MA - run off DC90V to 110V
CNC ControllerRichAuto Auto Now A11 (in English)
Working TablePVC vacuum with embedded T-slot
XY TransmissionHelical rack and pinion - 1.25 modulus
Z TransmissionTaiwan TBI rolling ball screw 25mm
Linear GuidesHIWIN brand 20mm
Small ElectronicsOmron, Schneider
Power Consumption6KW (no include dust collector and vacuum pump)
Working PowerAC380V/50Hz, 3Ph (others can be customized)
Net Weight1200KGS
Gross Weight1270KGS
Packing Dimension (plywood case)3170x2180x1770 (12.23   CBM)

FAQs About EagleTec CNC Mill for Wood

Q: How long is the lifespan of the EagleTec Wood Milling Machine for Sale?

A: Based on its outstanding configuration, it is safe to say this mill router will work perfectly for 7 to 10 years. As we told by several customers, some machines still work well after 10 years.

Q: The power requirement is AC480V/60Hz/3Ph; can that be achieved?

A: Yes, we can make that by equipping the machine with a transformer, just like what we did on the computerized routers for wood. It is a machine we made for a customer in the U.S.

Q: Is this CNC Milling for Wood delivered ready to use?

A: Yes, it is. All assembly and debugging works are well done in our factory before delivery. And there is nothing need to be taken down for packing purpose. So, once it received, simple plug and play. No additional assembly is required from your side.

Q: What can we do if it goes wrong?

A: Our support team is always here for you. Please contact us whenever you need it. The solution will be offered to you within 24 hours maximum.

Q: What Kind of Warranty is This CNC Milling Machine for Wood Covered?

A: 12-month warranty since departure date. During that, you will enjoy free replacement of any broken parts; and when the warranty expires, ongoing support is always provided to you, just there will be a small cost on basis of material charge. For more details, kindly check out here: EagleTec Warranty Clause

If you like the cnc milling machine for wood and MDF here, please contact us now.
