Router CNC 2000 x 3000 mm for Wooden Working Jobs

Model: EA-2030V

Category: CNC Wood Router

Brand: EagleTec CNC Router CNC 2000 x 3000 mm for Wooden Working Jobs

Condition: New Condition

Reference Price: U.S.$7200 / SET

Price Range: USD6200 to USD9100 / SET according to different configuration

Supply Ability: 100 Sets Monthly

Availability: production started after order confirmation (PreOrder)

Lead Time: 10 to 15 days

Warranty: 12 months

Payment Method: T/T, Western Union, Money Gram, Paypal

H.S. Code: 84659900.00

Recommendation: Router CNC 2000 x 3000 mm for Wooden Working Jobs 4.6 based on 5.0



Router CNC 2000 x 3000 mm, also known as 2030 router machine, is used for engraving or cutting full sheet material with Max. Size 2000×3000mm. In English unit, is 6.5 feet by 10 feet. In order to improve work efficiency, such large-sized router machines generally need to be equipped with a vacuum adsorption clamping system. It is commonly used in production of wood doors, artworks, wall art decorator panel, cabinet and so on. Router CNC 2000 x 3000 is a popular wood router for customers from Russia, Brazil, Tunisia and more.

Need size of 2000x4000mm? Please check the cnc router 2040 machine; if 2000x3000mm is sufficient for your works, let's move on.

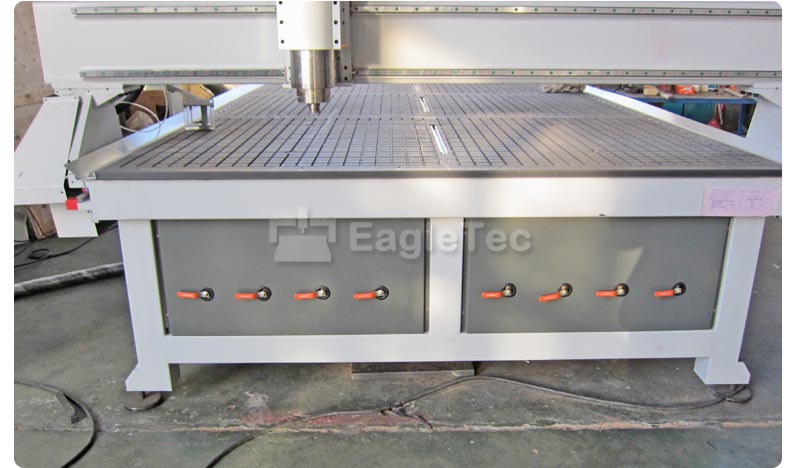

2030 cnc router machine front view – photo

Advantage of EagleTec Router CNC 2000 x 3000

Rigorous and sophisticated production process since raw material selection until production complete.

• Based on machine size and container width limits, the machine has to be packaged in SKD mode (semi-knocked-down). The electrical connection on gantry is designed with plug and play style, in that way customer can do cable connection easily in their site.

plug and play design on router cnc 2000 x 3000 gantry – photo

• The machine spindle is equipped with a 4.5kw water-cooled electric spindle, which is suitable for all kinds of wood working jobs.

4.5kw water cooled spindle on 2030 router machine - photo

• Vacuum adsorption clamping table, 2000 x 3000mm working table is divided into 8 small independent adsorption zones. Each cell can be on/off controlled separately.

8 small zones of router 2000 x 3000 vacuum table - photo

• All the linear guides are centrally lubricated from a central system.

Quick Details of Wooden Working 2030 Router Machine

• Working size 2000 x 3000 mm

• 4.5kw liquid cooling electronic spindle, 18000RPM, ER25

• Fuling 5.5kw inverter

• Stepper Motor Model.450B

• YAKO YKA2811MA driver

• RichAuto Auto Now A11 cnc controller

• Vacuum holding clamp table, 8 small zones

Application of CNC 3020 Wood Carving Engraving Router


These materials are good for router cnc 2000 x 3000, solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.


Wood door, cabinet, office furniture etc.

Machining Capacity

Engraving, routing, cutting and boring.

Optional Configuration for EagleTec Router CNC 3000 x 2000

• Spindle:water cooled 3.0kw or 5.5 kw, air cooling 3.5kw, 6.0kw, 7.0kw

• Controller: Mach3, Weihong NK105G2 and NC studio

• Driving motor: Servo or Hybrid Servo

Features of Router CNC 2000 x 3000

• PVC Vacuum table is divided into 8 vacuum zones, multi function table design, which can hold the work piece by vaccum-adsorption as well as by clamp.

• Machine frame is welded with seamless steel structure; processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by six legs with adjustable leveling feet.

• Beam is made of steel. A steel beam is superior to a aluminum in it’s ability to suppress

and absorb the forces created during cutting. It is internally ribbed in order to stiffen the

assembly; this design is minimizing the vibration while increasing accuracy and repeatability.

• Each axis of motion is supported on high precision grade linear guide ways. HIWIN linear guides allow for higher feed speeds and a better quality of cut.

• The Y-axis uses a dual drive, one for each side of the gantry.

• Software: Type 3, ArtCAM,UcanCAM, Aspire etc.

• Has the function of re-carving after break point and power failure.

Technical Parameter

TypeRouter CNC 2000 x 3000
Working Size (XYZ)2000×3000×200mm
Max. Flying Speed35,000mm/min
Max. Cutting Speed18,000mm/min
Spindle4.5kw, water cooling,   adjustable speed 0-18,000RPM, ER25
Engraving Tools   Diameter Range3.175-16mm
Controlling SystemRichAuto Auto Now A11
CommandG code
MotorStepper, big torque
Work-holdingVac-sorb and clamp
Transmission (XY)Helical rack and   pinion drive
Transmission (Z)Rolling balls crew   drive
Linear GuidesHIWIN 20mm
Max. Power Consumption14KW
Power SupplyAC380V/50-60Hz, 3Ph 4   Wires
Net Weight1600 KGS
Packing Dimension3700 x 2280 x 2200 mm   (18.6CBM around)

If you like this router cnc 2000 x 3000 here, please ask for a FREE quote now !
