Home >> Products >> CNC Plasma Table >> 5ft x 10ft Portable CNC Flame Plasma Cutting Machine for Sale

5ft x 10ft Portable CNC Flame Plasma Cutting Machine for Sale

Model: EA-P1530PL; EA-N1530PL (New Model)

Category: CNC Plasma Cutting Machine

Brand Name: EagleTec CNC Portable Design Mini CNC Plasma Cutter for Sale

Condition: New Condition

Plasma Generator: 63A, 120A, 160A, 200A

Price Range: USD2500 to USD4000 / SET Depending on Configuration

Supply Ability: 200 Sets Monthly

Availability: In Stock

Delivery Time: In 3 days

Payment Method: T/T, Western Union, Money Gram

Recommendation: Portable Design Mini CNC Plasma Cutter for Sale4.5 based on 5.0

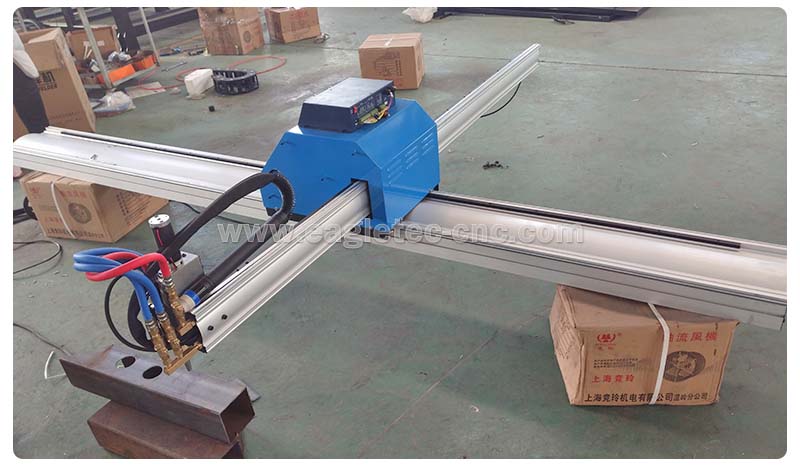

A new portable design man carried construction is applied to the mini CNC plasma cutter machine here. Although it is small in volume, it can still cut 5ft x 10ft metal sheets as the stroke for X & Y axis is 1500x3000mm. The portable design enables us to put the plasma cnc in any location as the production needs. Let us give an example to interpret this point here. Suppose we want to cut a 12-meter-long steel plate, and such a large steel plate is not easy to move. So how do we put it on the machine to cut it? Taking the portable cnc plasma cutter here, we put it on the metal plate, and then we start the equipment to cut. Therefore, it is the right solution for the giant metal materials cut. Except for the plasma torch, it has a flame cutting torch also. 5ft x 10ft Portable cnc flame plasma cutting machine for sale with unmatched service now!

To meet diverse customer needs, EagleTec CNC has launched a new portable model - EA-N1530PL designed to save transportation costs for our users. It is not equipped with a working bed and will be shipped semi-disassembled; the volume after packaging is only 4 cubic meters.

Also interested in table type machine? Please check this model - 5ft x 10ft cnc plasma table plasma cutting machine

low cost mini cnc plasma cutter machine

Here is the New Model – EA-N1530PL

new portable cnc plasma cutter for sale

The new model - EA-N1530PL, adopts a portable design without a workbench, but at the same time, it keeps the same gantry mechanism of the typical cnc plasma machine. You can benefit from the following aspects:

• Compared to the model EA-P1530PL, its solid gantry mechanism offers us upgrades in durability and precision.

• This model is very suitable for semi-disassembled transportation; the completed packaging volume is only 4 cubic meters. It can be seen that this machine improves performance while minimizing packaging size to reduce transportation costs for users as much as possible.

green portable cnc plasma cutting machine with 5ft x 10ft cutting size

Demo Video - Cutting Carbon Steel Plate with The Mini CNC Plasma Cutter

How do Set Up or Install it Once We Received it?

Features of Portable CNC Flame/Plasma Cutting Machine

● Mini portable design, Man-carried construction; Two options available on stroke: 1500x3000mm (5ft x 10ft) and 1500x2500mm (5ft x 8ft).

mini cnc plasma cutter with portable design

● The default configuration coming with two torches, one plasma cut torch, and one Oxy-fuel flame cutting torch.

plasma torch of mini cnc plasma cutter

● The portable cnc plasma cutter is equipped with an automatic torque height controller (THC controller).

auto torch height control of mini cnc plasma cutter

● Professional plasma cutting controller dedicated for portable plasma cnc - STARFIRE control system with LED display in English.

mini cnc plasma cutter control system

● A cut drawing library with rich resources is built into the cnc system. Production cuts can be executed by simply setting the size parameters.

drawing library in the mini plasma cutter system

● Plug and Play design.

mini cnc plasma cutter with plug and play design

● X & Y axis is adopting rack and pinion transmission.

rack on mini cnc plasma cutter

Production Application of Portable CNC Plasma Cutter for Sale


The mini cnc plasma cutting machine is ideal for both big factories and small metalwork shops.

Materials Good for The Portable Mini CNC Plasma Cutter

Good for cutting steel, aluminum, stainless steel, sheet metal, iron, copper, brass, etc.

mini cnc plasma cutter for iron cutting

Free Accessories/Consumables Coming with The Mini Portable Plasma CNC

Plasma cutting nozzle – 20PCS

Plasma cutting electrode – 20PCS

CNC plasma programming software FASTCAM – 1 SET (English Language)

mini cnc plasma cutting machine

Package Details of EagleTec Portable Mini CNC Plasma Cutter

The whole set of portable cnc flame/plasma cutting machines is dismantled into three pieces and packed into three plywood cases. The three package dimensions are 3600x300x300mm, 900x850x450mm, and 500x500x600mm.

eagletec mini cnc plasma cutter in package

To get a better understanding on the whole packing process, please watch the below video.

Technical Parameter of 5ft x 10ft Mini Design Portable CNC Flame and Plasma Cutting Machine

Machine TypePortable Mini CNC Plasma Cutter
Torch Type and Quantity1 Plasma cut torch + 1 Flame cut torch (oxy-fuel)
Actual Cutting Size5ft x 10ft (1500x3000mm)
Control ModeCNC
Plasma Cut ControllerSTARFIRE controller with the LED monitor, in English
Communication CodeInternational Standard G-code
No-load Speed6,000mm/min
Communication InterfaceUSB
Arc Voltage T.H.CIncluded
Linear GuidewayRound type
Driving MotorStepper
TransmissionRack and pinion
Nesting SoftwareFASTCAM in English (provided free with plasma machine)
Electricity RequirementAC220V, single-phase (plasma machine) | AC380V, 3Ph (plasma cutter)
Free Consumables20 nozzles and 20 electrodes for plasma cutting torch
Air Pressure Requirement0.4 ~ 0.5 MPa (4~5 kg/cm2)
Plasma Generator/Cutter63A, 100A, 120A, 160A, and 200A (Please select as per your needs)

FAQs about 5ft x 10ft CNC Plasma Table Economic Plasma Cutting Machine

Q: Our initial request was for the portable CNC platform without a Plasma cutter. Can you please only quote this?

A: Yes, we can quote it like that also.

Q: Do you have a table-type small size model?

A: Yes, we do. Please check our 4x4 plasma table.

If you like the portable cnc plasma cutter for sale here, please call for quote now.
