CNC Router Foam Cutter for Custom EPS EVA Molding

Model: EA-F1530-3S

Category: CNC Foam Router

Brand: EagleTec CNC CNC Router Foam Cutter for Custom EPS EVA Molding

Condition: New Condition

Reference Price: U.S.$23,500 / SET

Price Range: USD21000 to USD27000 / SET as per the different configuration

Supply Ability: 100 Sets Monthly

Availability: Production after order (Preorder)

Payment Method: T/T, Western Union, Money Gram, PayPal

H.S. Code: 84659900.00

Recommendation:CNC Router Foam Cutter for Custom EPS EVA Molding4.9 /5 based on 82 reviews



This cnc router foam cutter is designed especially for custom EPS expanded polystyrene foam moldings. The molded foam is usually used for casting & founding. Three-axis construction with 1500x3000mm machining size (5x10 in English); (need 4th rotary? please check out foam milling machine with rotary axis) Dirt guard is designed on X Y Z axes particular for cnc foam machining, which keeps the precise transmission parts away from the machining debris. The table is made of aluminum profiles. It is ideal for EPS EVA foam machining as well as wood machining. CNC router foam cutter for custom EPS EVA molding for sale at a reasonable price now!

cnc router foam cutting machine for eps expanded polystyrene moldings - photo

CNC Router Foam Cutting Demo

In the video, we are using the CNC Mill to make a one-off mold in the EPS foam block. Please enjoy it!

Unique Technics of EagleTec CNC Router Foam Cutter for EPS Expanded Polystyrene Moldings

• Strict quality control is implemented from the beginning. All the precision parts used on the cnc router foam cutter are strictly tested by the three-coordinate detector, and only the qualified items will go to the production process. Please refer to the picture below.

precise parts is tested by three-coordinate detector - photo

• In the design stage, we use computer-aided design software to optimize the whole machine construction design. Every detail is taken care of by us.

eps foam cnc router cutter with optimal structural design - photo

Advantages of Our CNC Router Foam Cutting Machine for EVA and XPS Foam Machining

• The machine base is welded by a high-rigidity steel structure, thick-walled and multi-ribbed, through multiple stress-relief processes. EagleTec cnc router foam cutting machine owns significant inflexibility.

cnc router for foam cutting with good inflexibility - photo

• Adopting the new generation of the latest absolute value servo drive system from SYNTEC, with the bus control CNC system from the same company, it is prior to ordinary servo on the performance of machining accuracy. It is a real closed-loop system, which ensures diagnostics of technical parameters of operation of the drive assemblies and units during machine operation for the purpose of no-failure operation of machine under the predetermined process conditions.

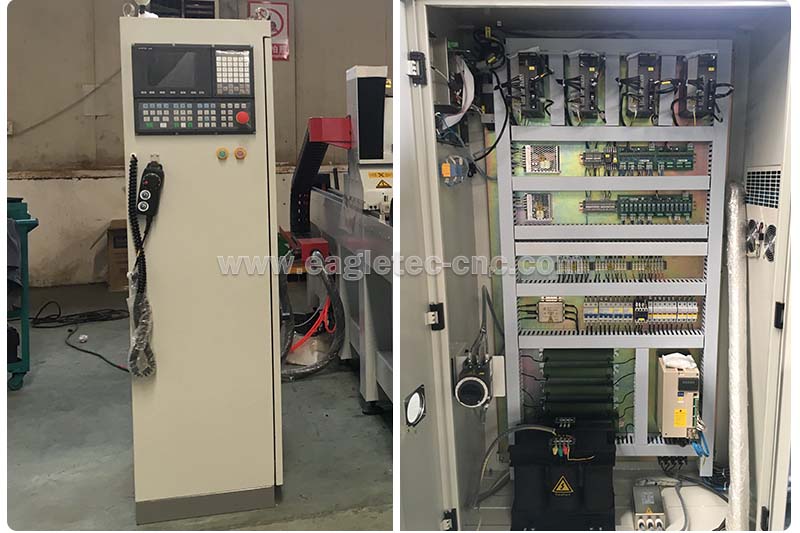

cnc router foam cutting machine control cabinet and syntec controller - photo

• The wiring of electronics is neat, standardized under European CE standards. Designed with many protection components including EMI filter, brake resistance, thermal reply, leakage protector, protection earth, etc. When packing, drying agents will be placed into the control cabinet to prevent the electrical components from getting wet and not working correctly. Details highlight the quality.

neat and CE standard wiring on cnc router foam cutter machine - photo

• Equipment actuators have overload protection function for the machine actuating element to prevent from machine equipment failure or worker's injury.

• The SYNTEC CNC system is embedded in the separate floor-standing cabinet, bus master control; with a handwheel (also known as manual pulse generator).

foam cutting cnc router with independent control cabinet at side - photo

Application of EVA EPS CNC Router Custom Foam Cutter

Applicable Field of CNC Router for Foam Cutting

They are usually used in commercial foundry for custom foam moldings, like the automotive one-off foam molds in the picture below:

automotive foam molds made by cnc router foam cutter

Applicable Materials

Wood & Foams include EPS, EVA, XPS, PS, White foam, and white expanded PVC.

Quick Details of 3D Custom Foam Molding CNC Router Machine

• Machining Size 1500x3000mm ( 5'x10' ). If you are interested in 4' x 8' size, please check out mold making cnc router EA-FW1325-3S

• 7.5KW water cooling ATC spindle with BT40 tool holders, a spindle especially for molds machining

• 30mm Taiwan precise linear guides, square type

• SYNTEC bus master CNC controller

• SYNTEC absolute AC servo drive system

• Aluminum profile table

• Dual pneumatic counter-balance cylinder on Z-axis

• Auto grease lubricating system

Technical Parameter of 5x10 3 Axis CNC Router EVA Foam Cutter Machine

Model No.EA-F1530-3S
TypeCNC Foam Router
Axis Quantity Three (X Y Z)
Simultaneous Axis Quantity3 Axes
Mechanical ConstructionWelded with steel tube, VSR treatment, milled by CNC machining center
Working TableAluminum profile
Workpiece Clamping WayBy clamps
Control Cabinet Independent, console
Safeguard Door Optional
Counter Balance CylinderDual on Z-axis ( Air as the medium )
X-Axis Fast Travel Speed45,000mm/min
Y-Axis Fast Travel Speed45,000mm/min
Z-Axis Fast Travel Speed10,000mm/min
X-Axis Max. Feeding Rate15,000mm/min
Y-Axis Max. Feeding Rate15,000mm/min
Z-Axis Max. Feeding Rate8,000mm/min
X-Axis Stroke 1,500mm
Y-Axis Stroke3,000mm
Z-Axis Stroke1,000mm
X-Axis Machining Size1,500mm
Y-Axis Machining Size3,000mm
Z-Axis Machining Size1,000mm
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
X Motion DriveSYNTEC AC absolute servo (From Taiwan)
Y Motion DriveSYNTEC AC absolute servo (From Taiwan), dual drive
Z Motion DriveSYNTEC AC absolute servo (From Taiwan), with holding brake
X-Axis TransmissionHelical rack & pinion, modulus 2.0
Y-Axis TransmissionHelical rack & pinion, modulus 2.0
Z-Axis TransmissionRolling ballscrew 32mm, pitch 10mm
X Reducing MechanismPlanetary reduction gear ( Brand Li-Ming From Taiwan )
Y Reducing MechanismPlanetary reduction gear ( Brand Li-Ming From Taiwan )
X Linear Guides Square type, 30mm (From Taiwan)
Y Linear GuidesSquare type, 30mm (From Taiwan)
Z Linear GuidesSquare type, 30mm (From Taiwan)
Electric Spindle ATC spindle 7.5kw, water cooling, BT40 tool holders
Cooling Device Chiller, CW5200
Collet SizeER40
Tool Diameter Range 3.175 ~ 26mm
Inverter 11kw, Fuling brand
Numerical System SYNTEC Bus-organization CNC machining controller (in English)
Communication CommandG code
Compatible SoftwareArtCAM, Aspire, UcanCAM, Type 3, JD Paint, UG, MasterCAM
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole machine
Lubrication SystemCentral lubricating, auto grease lubrication system
Electronics Protection EMI filter, Thermal relay, fuses, earth leakage circuit breaker, protection earth, brake resistance
Working PowerAC380V/50Hz, 3Ph (or made to order)
Max. Power Consumption20KW
Net Weight 6,000KGS
Gross Weight6,100KGS
Package WaySKD (SemiKnocked Down)
Shipping Way1 x 20GP' container

FAQs about CNC Router Foam Cutter Machine EA-F1530-3S

Q: What Spare Parts Is the CNC Router Foam Cutting Machine Involved?

A: Conventional accessories mainly include some accessories necessary for equipment operation (i.e. machine leveling feet, USB-flash, spanners, spindle nut, collets, regular cutter, etc.) and some spare parts for wearing parts (sensors, on/off buttons, switch, etc.).

Q: What Warranty and Support Comes with The CNC Router for Custom Foam Molding?

A: The machine comes with a 12-month limited warranty since the departure date. Under warranty, you will enjoy free replacement for any broken parts. In terms of support, once the machine arrived, we will guide you the whole thing, from wiring to programming, to machine starts, and more, until you put it into production. Of course, full set tutorials in English (necessary documentation for installation, operation, maintenance, list, and frequency of routine activities for the machine maintenance ) would come together with the machine; it's a practical guide for beginners with instructions step by step. Further, we are ready to offer online assistance in our factory.

Q: Can You Do Installing and Onsite Training?

A: We can send technicians to do the installation, pre-commissioning, and training work at the customers' sites, and this is also the most effective way since they can guide you everything out face to face. The charges for sending technicians would be at your expense; it mainly includes visa charges, transportation (air ticket/train ticket/bus ticket) cost, room, and food on your side; there is also an allowance for the technician.

If you like the cnc router foam cutter machine here, please contact for pricing now.
