4 Axis 1325 CNC Router with Rotary Axis

Model: EA-1325R4 Pro

Category: 4 Axis Simultaneous CNC Router

Brand: EagleTec CNC 4 Axis 1325 CNC Router with Rotary Axis

Condition: New Condition

Reference Price: USD6270 / SET

Price Range: USD6000 to USD11800 / SET as per different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Put order into production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 1450KGS

Package Dimension: 3400*2250*2200mm (16.83CBM Approx.)

H.S. Code: 84659900.00

Recommendation: 4 Axis 1325 CNC Router with Rotary Axis4.9 /5 based on 95 reviews


Machine Summary

EA-1325R4 Pro is a medium-grade cnc router 4 axis machine. Mechanically it is an ordinary 1325 cnc router with a rotational axis (the 4th axis). About the electronics, the rotary is equipped with an individual drive system, and the router machine is equipped with a 4-axis simultaneous CNC controller – RichAuto A18; undoubtedly, this is a real 4-axis cnc machine. In addition to conventional plane projects, it can also complete 3D works, such as statues, Queen Anne legs, etc. 4 Axis 1325 CNC Router with Rotary Axis for sale at a favorable price now.

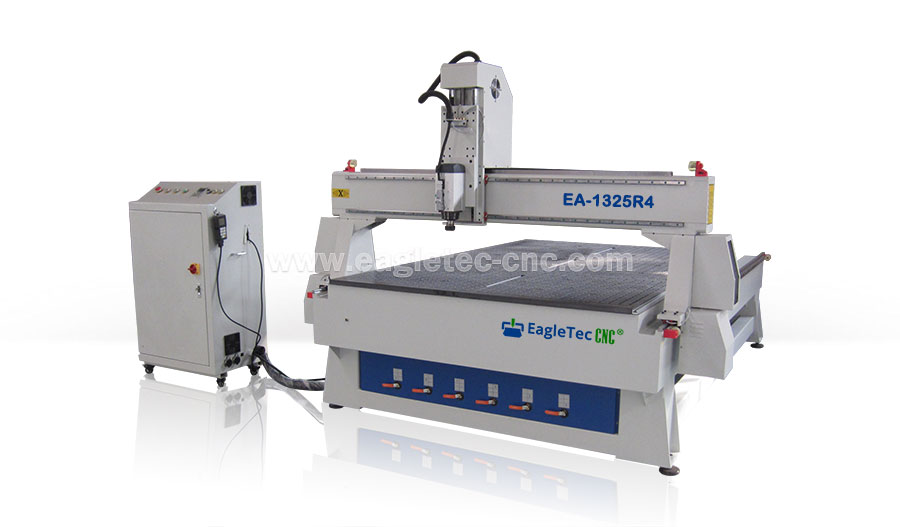

blue and white 1325 cnc router with the 4th rotary axis at the back

Demo - Carving Baluster and Queen Leg on CNC Router Rotary Axis

For your information, to complete a carving job like project 1 shows, it would take about 8 hours.

1325 4 Axis CNC Router with Rotary Device Features

• T-style heavy-load machine base is weld with thick steel tubes and milled by metalworking cnc machining center, not a simple hand-finished work! The individual electrical cabinet is located next to the machine base.

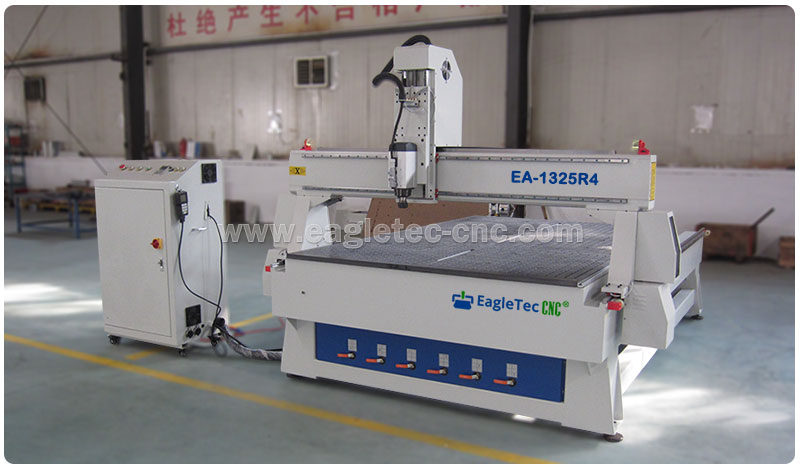

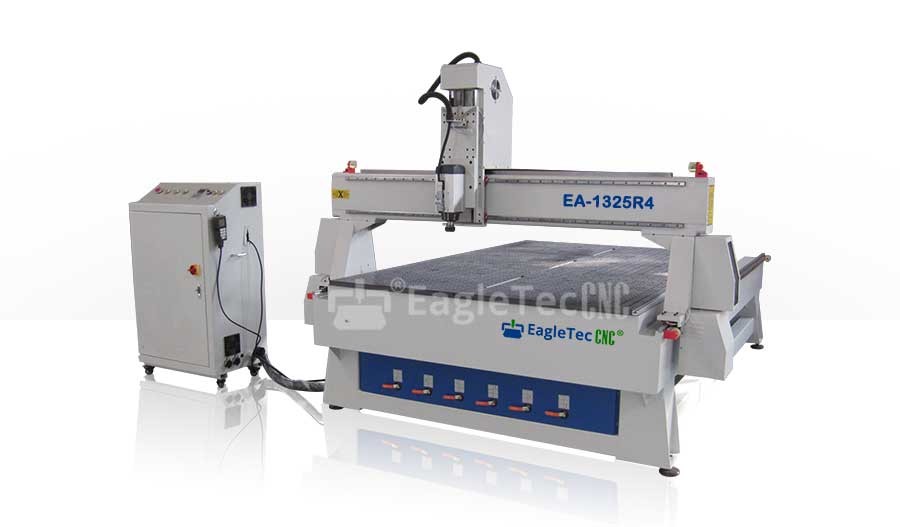

cnc router 4 axis machine EA-1325R4 in EagleTec plant

• The rotary device is fixed at the back of the base and does not occupy the flat working bed space. The two do not affect each other.

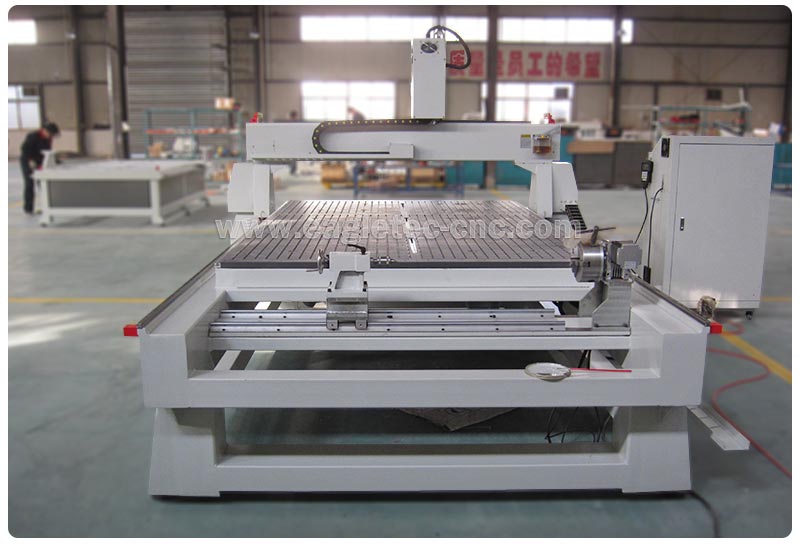

1325 cnc router with 4 axis rotary device ready in the workshop

• The headstock is a 3-jaw chuck driven by stepping, and the tailstock is a spike on a carriage. So, it can be moved to facilitate the clamping of cylindrical workpieces of different lengths.

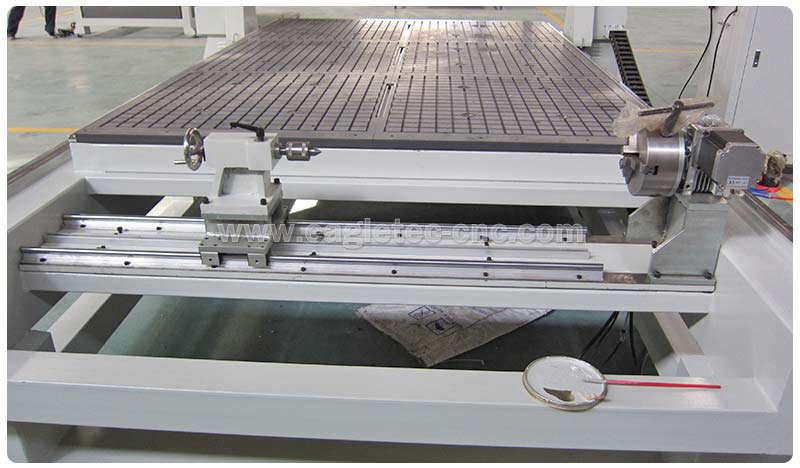

rotary axis for cnc router is installed on the machine

• PVC vacuum table with aluminum T-slots embedded.

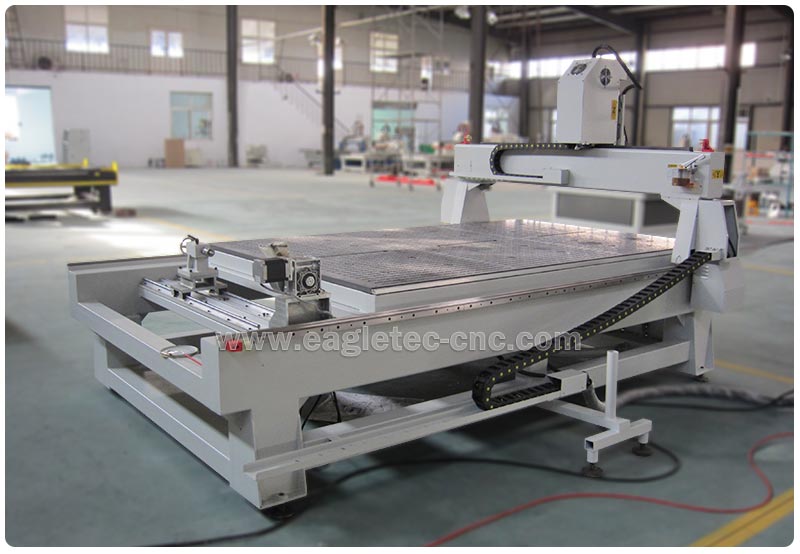

4 axis rotary axis cnc router with vacuum table

• The machine comes with one 3.5kw air cooled spindle.

• As a true 4 axis cnc router, EA-1325R4 is equipped with a 4-axis simultaneous CNC control system, which is an A18E handheld controller from RichAuto.

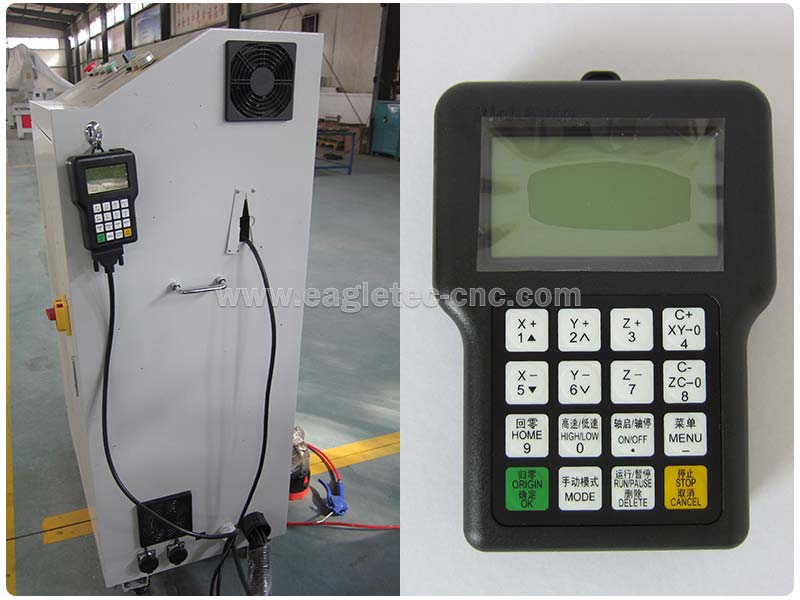

the richauto a18e cnc controller is hung on the side of the control cabinet

• The electrical components are all brand-name products, and most of them are installed inside the house. The electrical cabinet has excellent airtightness to provide a dust-free environment for the parts.

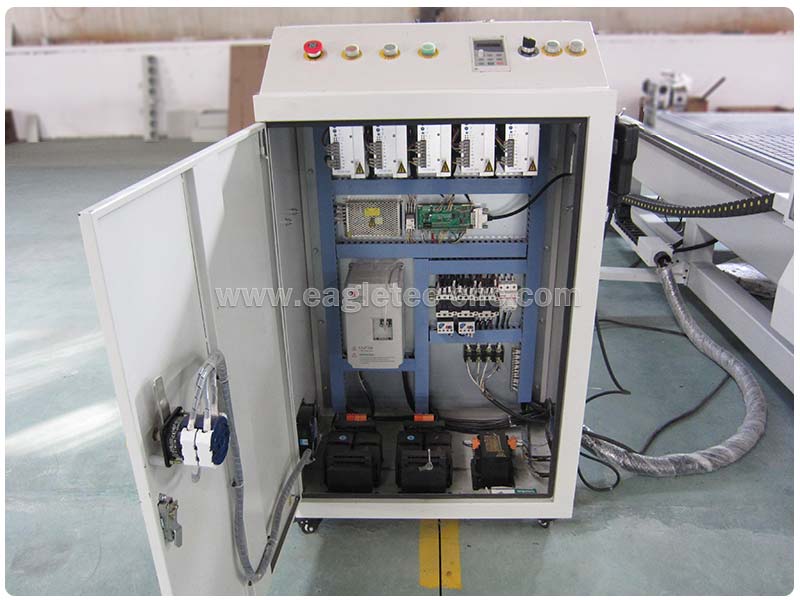

electrical components are neatly installed inside the electric control cabinet

Application of CNC Router with 4-Axis Rotary

Applicable Field

It is very suitable for making reliefs, panel furniture, carved artworks, and Queen legs for furniture.

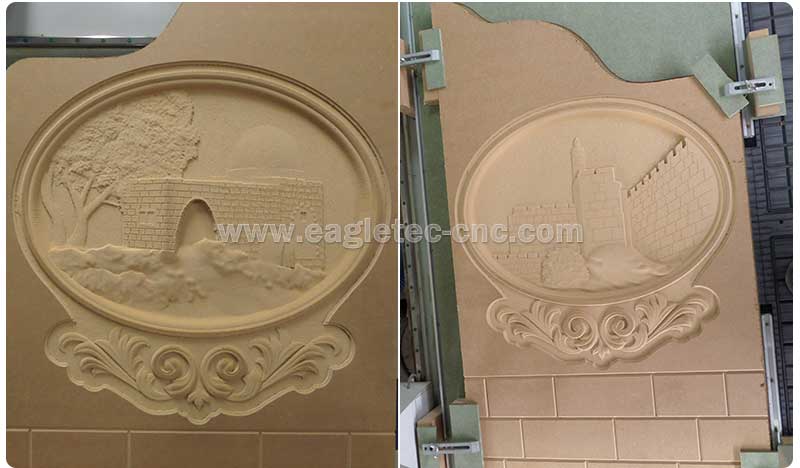

carved artworks projects by the 1325 cnc router with rotary

Applied Materials

Solid Wood, MDF, Plywood, Solid Surface, White expanded PVC, HDPE, PVC, Foam, and more.

Packing Demonstration of 1325 CNC Router 4 Axis Machine

• The machine is packaged as a whole without disassembly. There are no additional assembly works once you received it.

• For the whole machine, we usually use wrapping material to wrap it up as inner packing. Finally, we packed the cnc equipment in a strong case made of plywood, which is a safe and seaworthy packaging.

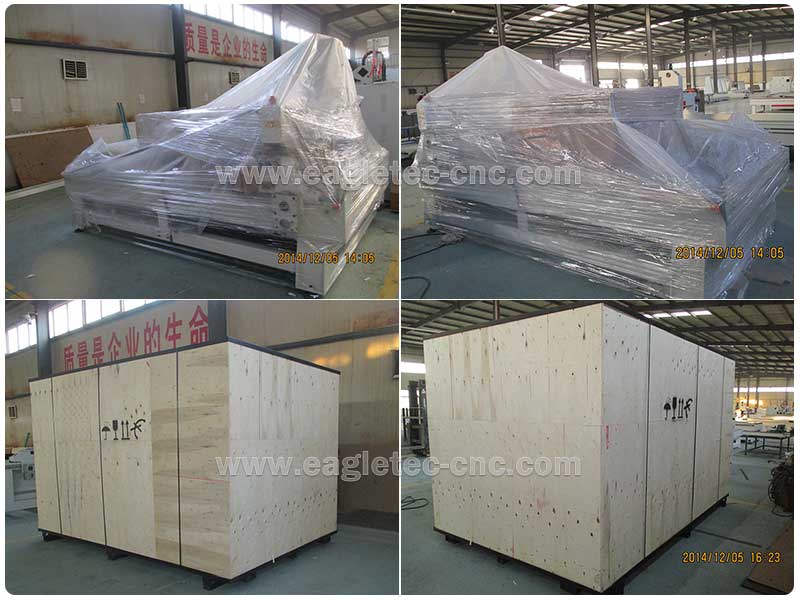

the real shot of 4 axis cnc router 1325 with rotary table packing

Technical Parameter for 4 Axis CNC Router 1325 with Rotary Table

Model No.EA-1325R4 Pro
Type4 Axis CNC Router
Max.Simultaneous Axis Qty Four
Machine BaseHeavy-load, finish by CNC machining center, not a simple hand job
Rotary Table 7.87" D x 31.4" L (200mm x 800mm), fixed at the back of the machine
Rotary ClampingBy head and tail stock
Flat Working TablePVC Vacuum with embedded T-slot
Bed Size1300x2500mm (4'x8') - actual working size
Flatbed ClampingBy vac-sorb or clamps
X-Axis Stroke4 foot [1300mm]
Y-Axis Stroke8 foot [2500mm]
Z-Axis Stroke11.8 inches [300mm]
Electric Spindle Air-cooled 3.5Kw, 18000rpm
Collet SizeER25
Acceptable Tool Diameter 3.175 ~ 16mm (1/8“ ~ 5/8”)
Electronic CabinetIndividual type
Tool Length SensorIncluded
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Motion DriveNEMA34 stepper motor
Driver Leadshine
Fast Travel Speed30,000mm/min
Max. Cutting Speed15,000mm/min
CNC ControllerRichAuto A18 handheld controller
X-Axis TransmissionHelical rack and pinion, planetary gearcase
Y-Axis TransmissionHelical rack and pinion, planetary gearcase
Z-Axis TransmissionRolling ballscrew, 25mm, pitch 10mm
Rotary TransmissionWorm gear
X Linear Guides Square type, 20mm
Y Linear GuidesSquare type, 20mm
Z Linear GuidesSquare type, 20mm
Communication CommandG code (***.nc)
Compatible Programming SoftwareArtCAM, Aspire, PowerMILL
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole machine
Lubrication SystemVolumetric Central lubricating, manual type
Working PowerAC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph)
Max. Power Consumption9KW
Net Weight 1,400KGS
Gross Weight1,450KGS
Package WayPlywood Case
Package Dimension3400*2250*2200mm (16.83CBM Approx.)
Vacuum PumpOptional
Dust CollectorOptional

FAQs about 1325 CNC Router with Rotary Axis

Q: Is the rotary axis here fixed or movable?

A: It has a permanent location on the machine base as it doesn't take up space on the flat table.

Q: The power requirement is 480 3ph 60hz, can that be achieved?

A: Yes, we can make that by equipping the machine with a transformer. Of course, this option will have extra costs, which is the transformer's raw material cost.

Q: Is the cnc rotary table simultaneous or indexed?

A: It is simultaneous for sure, not index one. For your information, with the indexing rotary, you'll have to disable Y-axis instead of making the rotary axis be able to work.

Q: What Is the Software for This 1325 CNC Router with 4 Axis Rotary Table?

A: As the 4-axis models are all in STL format (***.stl), we use PowerMILL as the toolpath programming software. Also, any other software can be used as the 4 axis cnc router program as long as it can edit STL files. We would provide a full set programming tutorial, 4-axis CAM software, and the post-processor along with the machine.

Here is a demo for your reference: how to program a 4-axis project in PoweMill

Q: What is the Warranty Do You Offer for the 1325 CNC Router with Rotary EA-1325R4?

A: It comes with a one-year limited warranty. We do send you new real parts in case if anyone is broken under warranty. Out of the guarantee, we provide you with constant support; for defective parts replacement, it will only be charged based on raw materials' cost.

If you like the 4 axis 1325 cnc router with rotary axis for sale here, please contact now for a free quote.
