CNC 6090 Gemstone Carving Machine for Carved Jade Pendant Making

Model: EA-6090S

Category: Stone CNC Router Machine

Brand: EagleTec CNC6090 CNC Gemstone Carving Machine for Carved Jade Pendant Making

Condition: New Condition

Reference Price: USD2800 / SET

Price Range: $2700 to $4000 / SET as per different configuration

Supply Ability: 100 Sets Monthly

Availability: PreOrder – Put order into production on receipt of deposit

Payment Method: Wire Transfer, Trade Assurance

G.W.: 400KGS

Package Dimension: 1440*1280*1690mm (3.12CBM Approx.)

H.S. Code: 84659900.00

Recommendation: 6090 CNC Gemstone Carving Machine for Carved Jade Pendant Making4.8/5 based on 56 reviews


PRODUCT DESCRIPTION

Machine Summary

EA-6090S is a small stone cnc router for carved jade pendant making field engineered to process profiling, lettering, carving, chasing, milling operations of stone elements. Its working size is 600x900mm (also known as 2x3 cnc router). CNC 6090 comes with a water coolant system for cutters composed of a nozzle, a water pump, and a water pan. This device's function is to prevent shavings from sticking to the cutting edge and causing damage to the tool or carved project. 6090 CNC gemstone carving machine for sale at a favorable price now.



Let's move to the next part to watch the machine demo.


If you have an interest, please check out two other typical size machines for comparison: cnc stone carving machine EA-1325S and granite router machine EA-1530S.

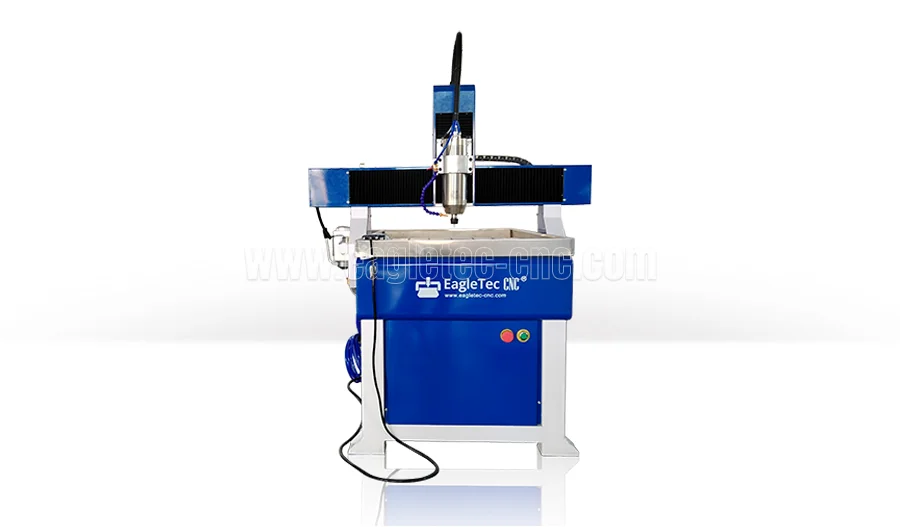

dark blue cnc gemstone carving machine

Demo: Do Lettering on Ceramic Tiles with CNC Gemstone Carving Machine

CNC 6090 Jade Carving Machine Utilization

Applicable Industry

• Carved Art Work Made of Jade or Gem

• Carved Jade Pendant and Plate Making

Carved Projects of Gemstone Carving Machine

carved jade pendants and carved jade plates project via 6090 stone cnc router

Materials Good for 6090 CNC Router

Good for Gem, Gemstone, Jade, Green Jade, Yellow Jade, Black Jade, Granite, Marble, Neutral Stone, Aluminum, Sandstone, Artificial Stone, Solid Surface, MDF, Solid Wood, Plywood, and more.

6090 CNC Router Machine Features

• The X and Y axis adopt a fully enclosed dust-proof design, which can effectively prevent jade debris from falling onto transmission components such as racks and guide rails and further leading to machine failures.

small cnc stone carving machine in the workshop

• The water pan is below the aluminum profile; there is an outlet at the rear of the water pan connected to the water pump to form a water circulation system.

gemstone carving machine water pan with outlet

• CNC 6090 comes with a water cooling system for cutters.

water cooling system for cutters on the 6090 cnc gemstone carving machine

• The beam for the 6090 cnc router is made of steel. A steel beam is superior to aluminum to suppress and absorb the forces created during cutting.

small stone cnc machine for sale

• Individual electronic control cabinet.

• The CNC system for the 2x3 cnc router is a handheld controller-RichAuto A11, which supports re-carving after break point and power failure.

6090 cnc router with handheld controller RichAuto A11E

• EA-6090S gemstone carving machine comes with a 3.0Kw water-cooled spindle dedicated to stone-working.

• All the linear guides are centrally lubricated from a central system.

small gemstone carving machine for jade pendant

2x3 CNC Router Quick Details

• 2'x3' – 600x900mm Working Size

• 3.0Kw water-cooled spindle

• Stepper & Leadshine DMA860H driver

stepper motor for the X-axis of 6090 cnc router

• RichAuto AutoNow A11 controller

• XYZ Transmission – rolling ballscrew

•Linear Guides – 20mm HIWIN

20mm square linear guides for 6090 cnc engraving machine

Technical Parameter of CNC Router 2x3 Jade Stone Carving Machine

Machine ModelEA-6090S
TypeStone CNC Router
Simultaneous Axis QtyThree
Mechanical ConstructionWelded with steel tube, VSR treatment, finish by CNC machining center
Machine BedAluminum profile & PVC layer & Water pot
Anti-DustOn the X & Y Axis
Coolant System for Cutterinvolved
X-Axis Stroke 23.6" ( or 600mm )
Y-Axis Stroke35.4" ( or 900mm )
Z-Axis Stroke4.72" ( or 120mm )
Max. Feed Height4.72" ( or 120mm )
Electronic Spindle Dedicated spindle for stone working, 3.0kw, 18,000RPM
Collet SizeER20
Tool Diameter Range 3.175 ~ 12.7mm (1/8" ~ 1/2")
Inverter 3.7kw, FULING brand
Position Accuracy0.10mm/300mm
Reposition Accuracy0.10mm/300mm
Fast Travel Speed15,000mm/min
Max. Feeding Rate10,000mm/min
X Motion DriveStepper - 6.0N.m
Y Motion DriveStepper - 6.0N.m
Z Motion DriveStepper - 6.0N.m
X-Axis TransmissionRolling ballscrew, 25mm
Y-Axis TransmissionRolling ballscrew, 25mm
Z-Axis TransmissionRolling ballscrew, 25mm
X Linear Guides HIWIN, square type, 20mm
Y Linear GuidesHIWIN, square type, 20mm
Z Linear GuidesHIWIN, square type, 20mm
Numerical System RichAuto A11 DSP handheld controller in English
Communication CodeG code (***.mmg)
Compatible SoftwareArtCAM, Aspire, UcanCAM, Type 3, JD Paint, UG, MasterCAM
Other Electronics Schneider, Omron, CHNT
CablesHigh softness shielding cables for the whole machine
Workpiece Clamping WayBy clamps
Lubrication SystemCentral lubricating, manual type
Electronics Protection Fuses, overload
Working VoltsAC220V/50 and 60Hz, Single Phase
Max. Power Consumption6KW
Package WayThe complete machine in plywood case
Net Weight 350KGS
Gross Weight400KGS
Package Dimension1440x1280x1690mm (3.11CBM approximately)

FAQs about 24x36 CNC Router EA-6090S

Q: Where Do I Buy The Bits Needed Size for This CNC 6090 Gemstone Engraving Machine?

A: We offer stone-working router bits to suit your engraving needs. We are pleased to offer our assistance in this matter. Please inform us of how we can be of service.

Q: My Stock Marble Is 13 Inches X 42.25 Inches. I Only Want to Carve Letters Max of A 12-Inch x 16-Inch Area on The Stone. Can The 2x3 CNC Router Table Accommodate a Length Of 42.25 Inches?

A: The CNC 6090 here has the ability to handle a stone measuring up to 42.25 inches. However, it should be noted that the engraving dimensions and bed dimensions are not interchangeable terms. The engraving dimensions pertain to the extent that the bits can access, whereas the table dimensions typically exceed the engraving dimensions.

Q: Is The Spindle Constant Torque So It Can Perform At Lower Speeds?

A: Yes, the best version comes with a constant torque spindle.

Q: What Is The Lowest Functional Spindle Speed?

A: The adjustable RPM range would be from 0 to 24,000. Typically, the lowest functional spindle speed is 6,000 RPM.

Q: How to Ship the CNC Router 6090 Jade Carving Machine?

A: The common practice is by sea shipment. Under the CIF trade term, we will arrange the shipping for you, and you need to take delivery of the machine once it arrived at your side. You'll need to book the shipping space under the FOB term and advise us, and then we will send the 6090 cnc router machine from our factory to the loading port.

Q: What Is the Price for This Small CNC Stone Router In The Best Version?

A: Please contact us to get a free quotation today!

Q: What are The Terms Of Payment?

A: The terms of payment for this cnc 6090 machine is 40% down payment by T/T, the balance payment before delivery by T/T.

Q: Which Programming Software Is Suitable for This 24x36 CNC Router Jade Carving Machine?

A: Any software that can output G codes is okay. For example, ArtCAM, Aspire, UcanCAM, MasterCAM, etc., as the machine controller reads the file with the extension name of ***.mmg.

Q: Can the Working Voltage of The Gem Carving Machine Be Customized According to Our Actual Situation?

A: Yes, it can be built as per your requirement. The default electricity source for the 6090 cnc router is AC220V, 50/60Hz, Single Phase. If you have a different one, please advise us that, we will build the machine as per your electricity source.

Q: What Is the Lead Time for the 6090 Stone CNC Router?

A: The lead time for the 2x3 cnc router is 10 business days on receipt of down payment.


If you like the gemstone carving machine EA-6090S, please contact us for a quote today.
