Model: SW2400
Category: Slatwall Machine
Max. Panel Width: 2400mm
Spindle Quantity: 14
Applications: slatwall panel cutting
N.W.: 3,000KGS
Brand: EagleTec CNC
Condition: Brand New
Reference Price: USD 17,500 / SET
Price Range: USD14770~USD20000 / SET by Different Configuration
Supply Ability: 40 Sets Monthly
Availability: PreOrder - Put into production on receipt of down payment 0
Payment Method: T/T
1-Year Limited Warranty for the Whole Machine Set
Recommendation:
5/5 based on 19 reviews

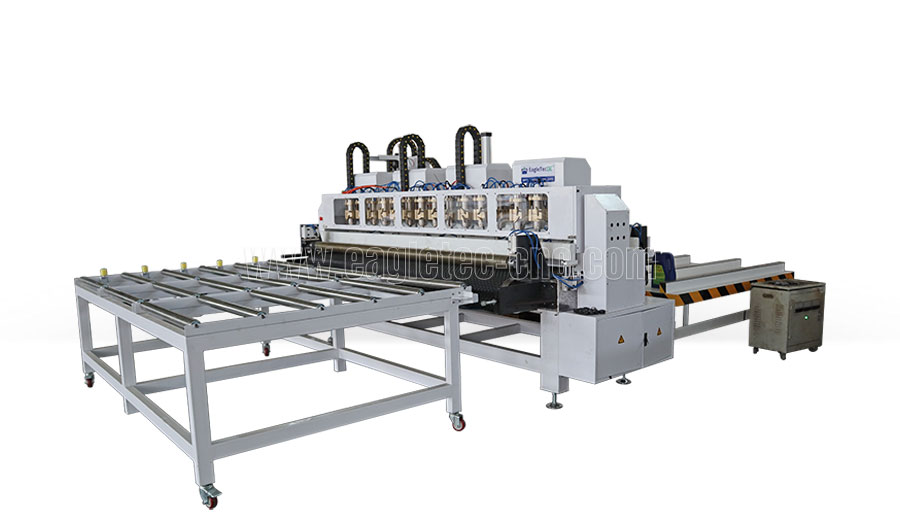

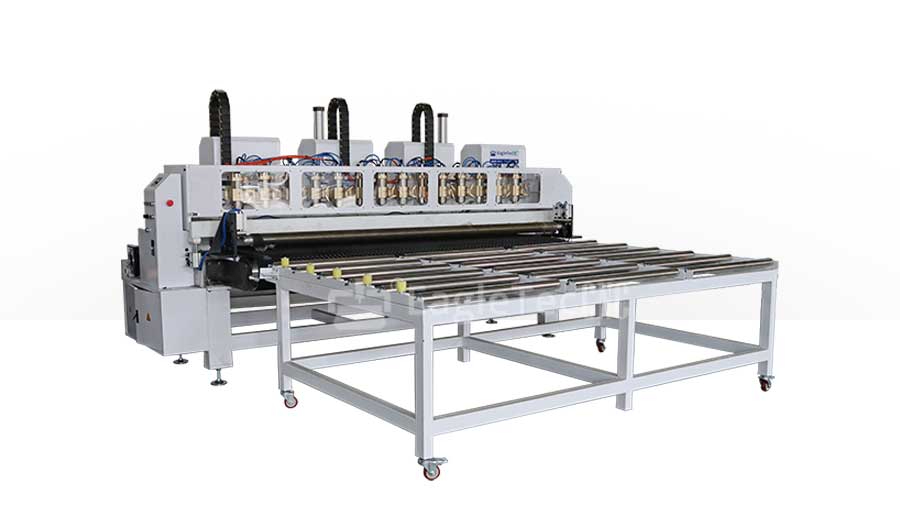

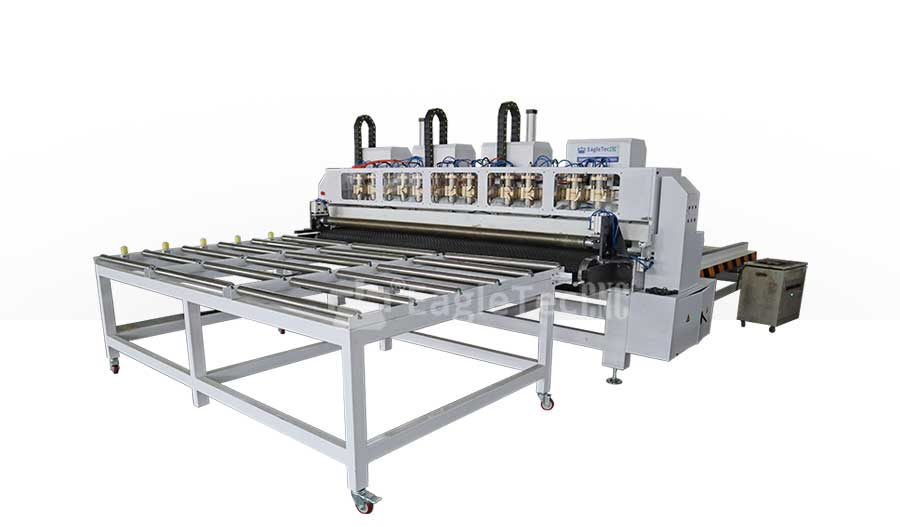

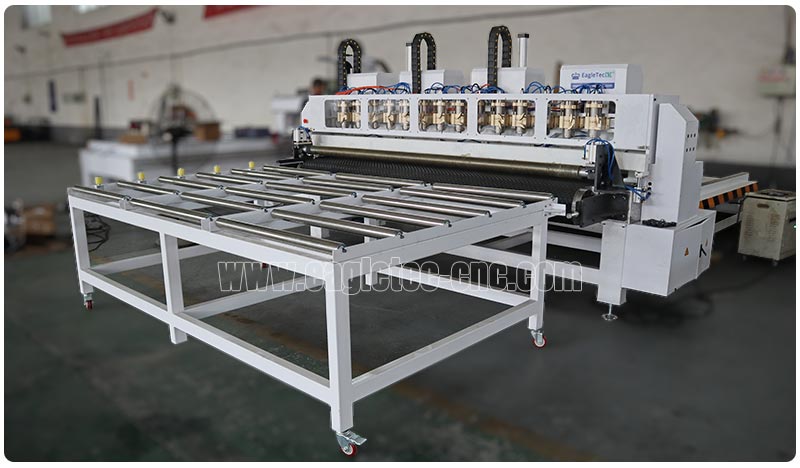

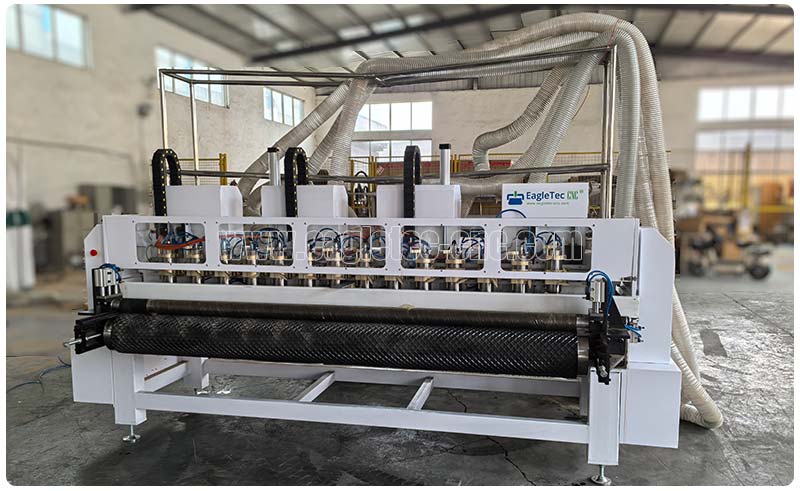

In the slatwall panel cutting industry, most users utilize CNC routers for slotting. However, a CNC router is a general-purpose machine and not specialized equipment for slatwall cutting. There are very few non-CNC machines out there that can perform this task with a high level of automation. To fill this gap, we're excited to introduce SW2400! It's a user-friendly, highly automated slatwall cutting machine that doesn't need any programming, and it's been designed specifically for slatwall panel manufacturing. The machine comes with 14 cutting spindles, allowing it to complete the cutting of up to 14 slots in a single pass. It has a handy automatic lifting platform in the back, which means you won't need any manpower to receive the completed panel. It's designed for high automation and impressive production capacity. If you're on the lookout for a machine that fits this purpose, SW2400 is definitely the best choice for you!

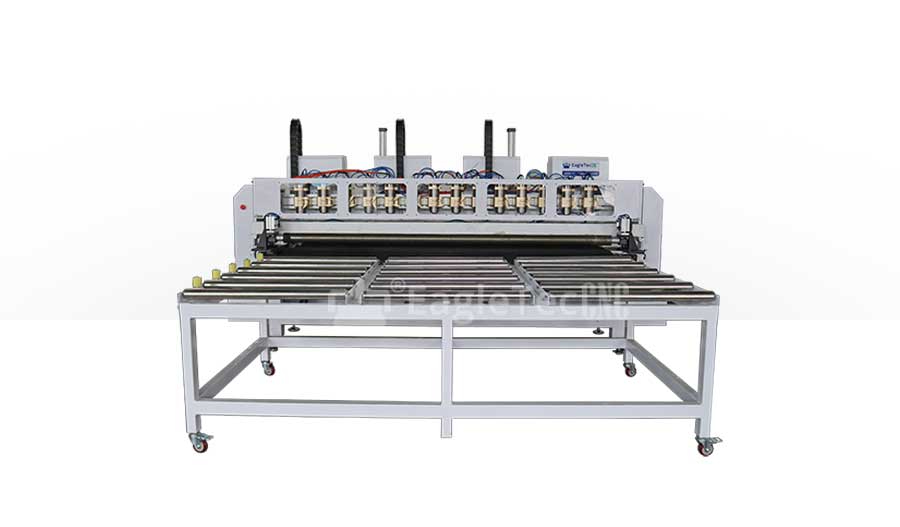

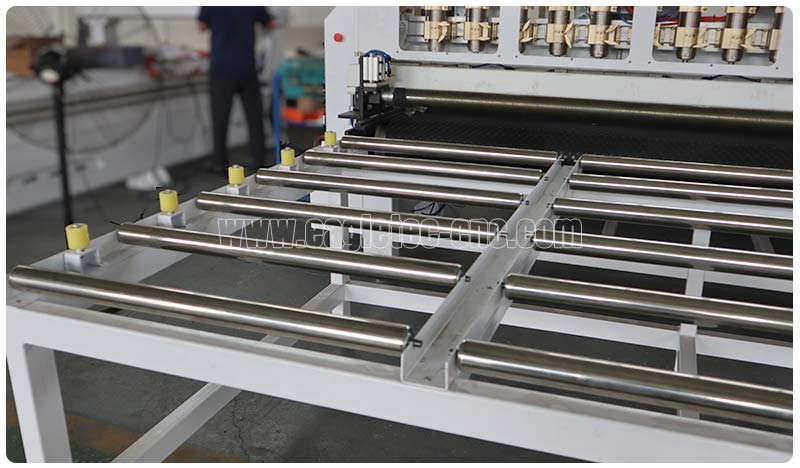

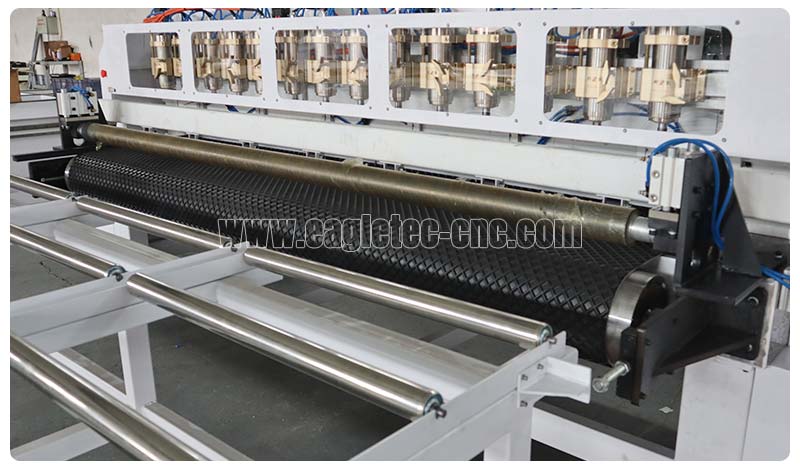

• At the front of the slatwall machine, you'll find a handy movable loading platform made up of several rollers and a bracket. It's securely bolted to the machine, but don't worry—It's also designed to easily slide aside, making it super convenient for you when you need to install or change the tool.
• Downstream of the loading platform is the cutting area, which features a powered conveyor system that moves the MDF board from front to back, completing the slot cutting process.

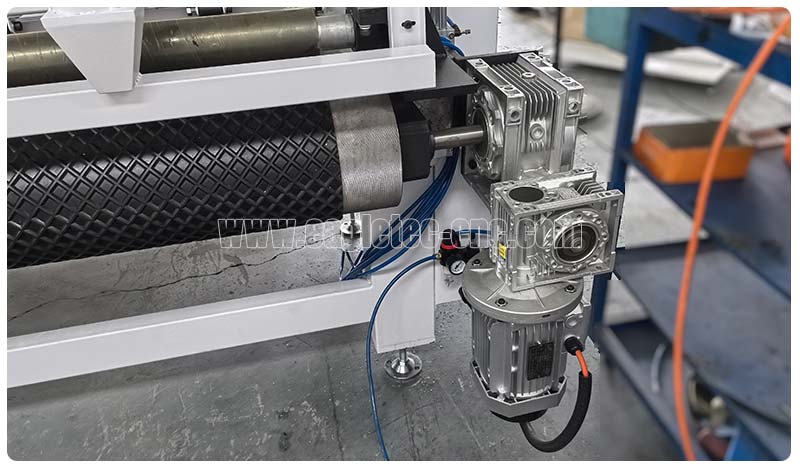

• The conveyor system is powered by a 1.5 kW three-phase asynchronous motor. You can easily adjust the transmission speed thanks to a frequency converter that lets you change the motor's speed as needed. This means you can tailor the operation to fit your requirements perfectly!

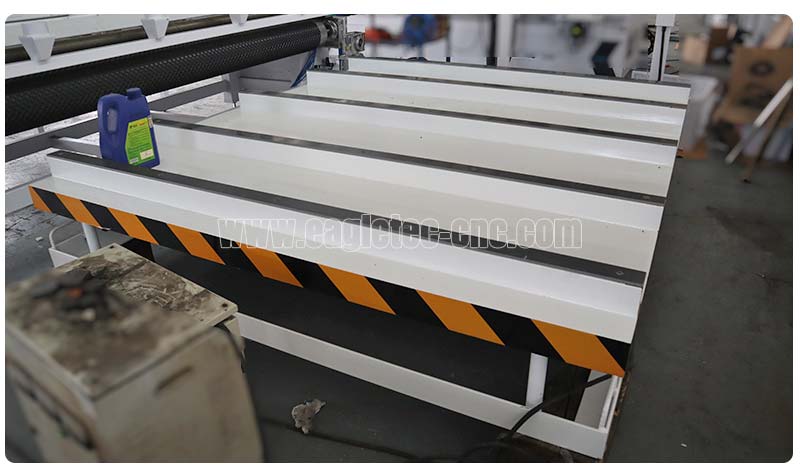

• Passing the cutting area, we came to the unloading platform. It is an automatic lifting platform. With this setup, when a board comes off the machine, it will land right on the platform. Then, the platform will automatically lower to match the thickness of the board, getting ready for the next one. It's a clever and efficient way to keep things moving smoothly! Plus, this setup can really help save on labor resources! With this system, there's no need for anyone to hang around the machine just to catch the sheets.

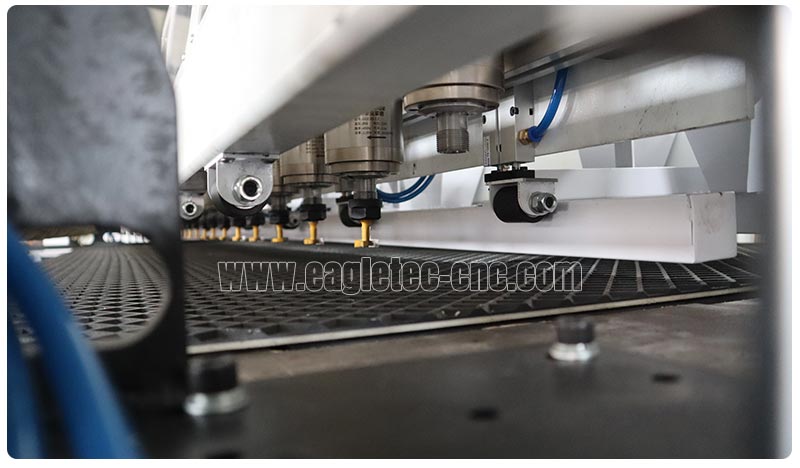

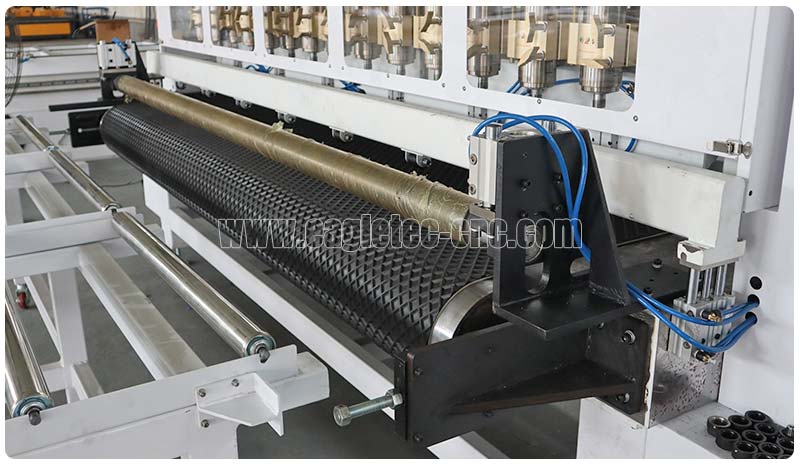

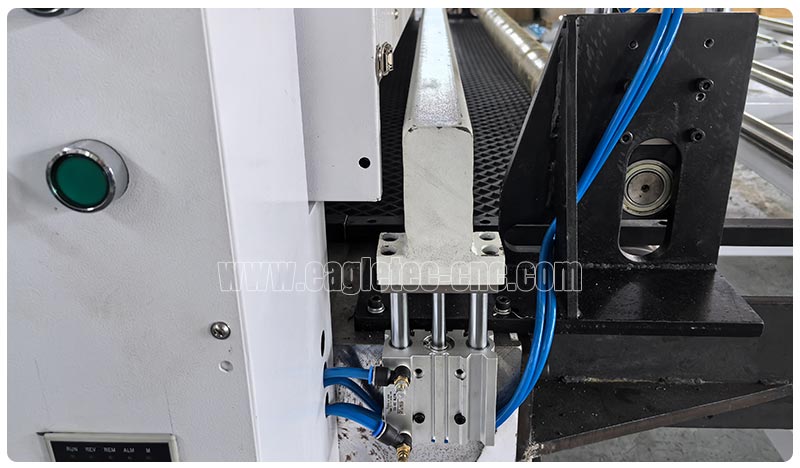

• You might be curious about how the MDF panel is securely held in place on the table while the slatwall machine is cutting. There are two pneumatic rollers located at the front and back of the machine head. These rollers apply consistent downward pressure on the board using pneumatic force, ensuring that it remains firmly attached to the workbench.

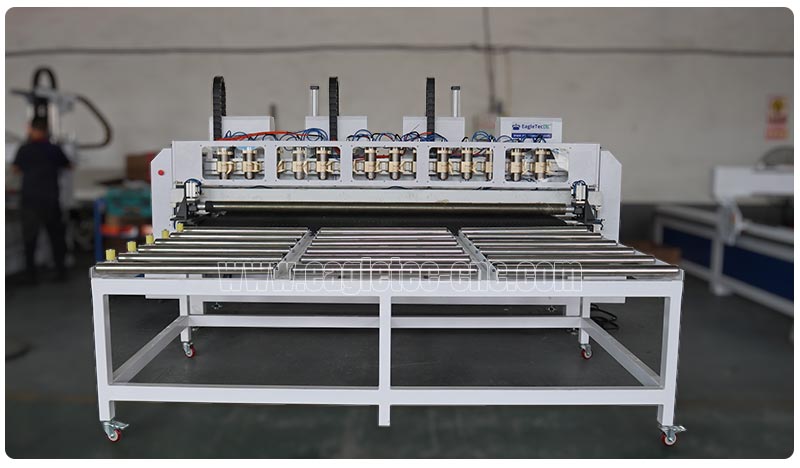

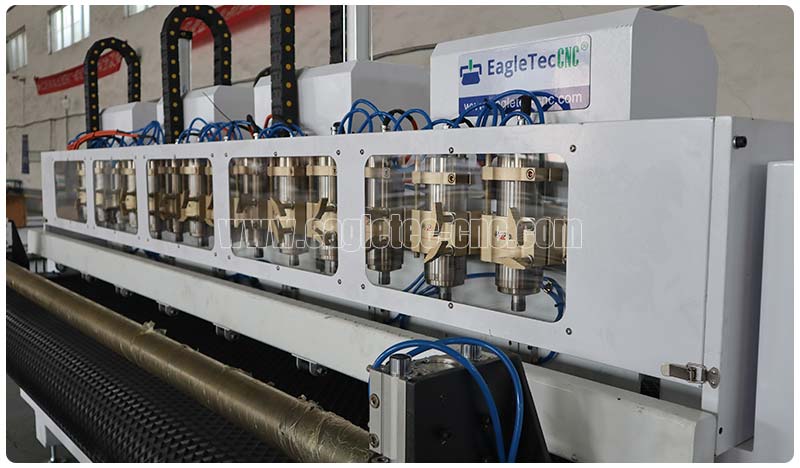

• The machine comes with 14 cutting spindles, so it can easily cut up to 14 slots in a single pass!
• We're here to help with all your slatwall cutting needs! Not only can we provide you with the machines, but we also have the perfect router bits for the job. If you have a specific design in mind, feel free to send us your drawings—we'd love to create custom-made bits just for you!

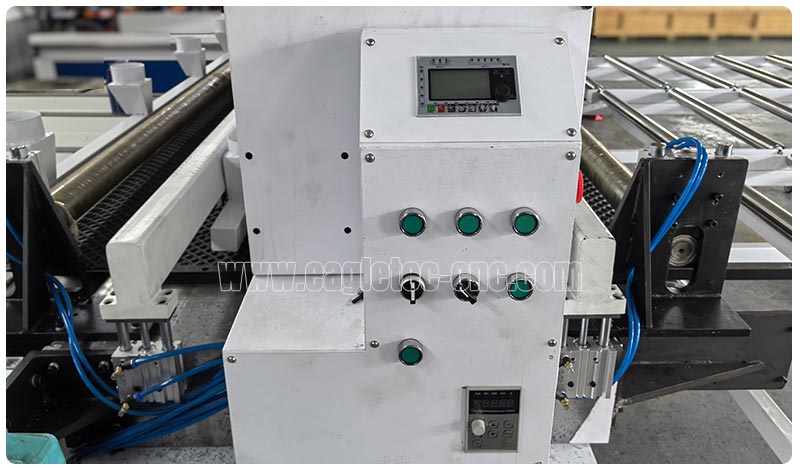

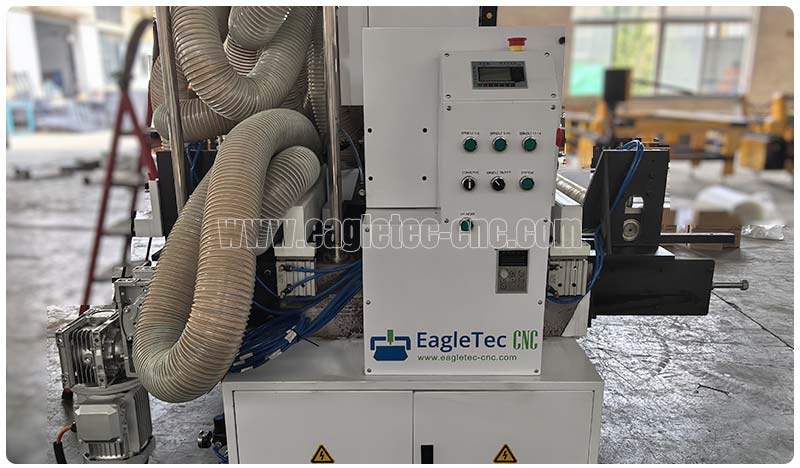

• This user-friendly non-CNC device comes with a PLC control unit, making it super easy to operate without any complicated programming. You'll find that even if you're a beginner, you'll pick it up in no time!
This is a specialized machine designed exclusively for cutting slatwalls.
Slatwall panel fabrication plants, slatwall machining shops, slat board & slat wall factories.
MDF board or sheets.
• Max. Cutting Width: 2400mm
• Cutting Spindle Quantity: 14 PCS
• Programming-free PLC control unit
• Adjustable Cutting Speed
• Adjustable Spindle Spacing
• Front loading platform
• Rear platform – automatic
• Slatwall machine – 1 PC
• Front loading platform – 1 PC
• Rear unloading platform – 1 PC
• Standard Accessories with toolbox
• Complete tutorials on a USB drive
| Model No. | SW2400 |
| Type | Slatwall Making Machine |
| Spindle Qty | 14 |
| Electric Spindle | 2.2KW |
| Machine Base | Welded structure |
| Max. Working Width | 2400mm |
| Collet Size | ER20 |
| Controller | PLC |
| Tool Diameter Range | 3.175 ~ 12.7mm |
| Cables | High softness shielding cables for whole machine |
| Workpiece Clamping Way | Pneumatic rollers |
| Working Power | AC380V/50Hz, 3Ph (or AC220V/60Hz, 3Ph) |
| Max. Power Consumption | 40KW |
| Footprint | 5600mm x 3600mm |
| Dust Collector | optional |
| Warranty | 12-months |
If you like the best slatwall cutting machine for sale here, feel free to reach out today for a free proposal!
