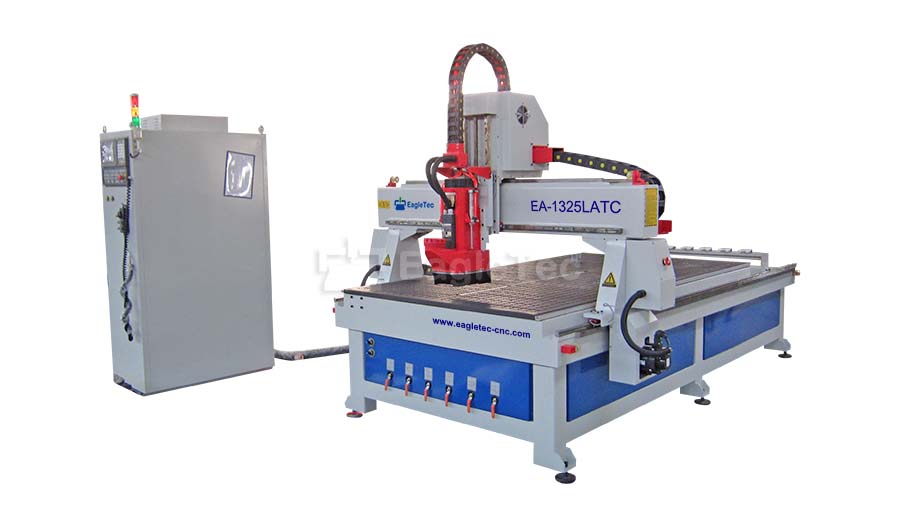

Linear ATC CNC Router for MDF Furniture Sheets

Linear ATC CNC Router EA-1325LATC in Action

It can work with aluminum also.

While working with aluminum, the spindle rate is 18000rpm; the feeding rate is 15,000mm/min. As we can see, to enable the machine to mill aluminum precisely, it should work with a coolant spray system. It is a dedicated option for aluminum machining. If you have aluminum jobs to work, you'd better go with this option.

Advantage of EagleTec Panel Furniture Making CNC Router with ATC (Auto Tool Changer)

• Unique three-layer machine base design for better stability. It is supported by 6 legs with adjustable leveling feet. Welded with 6mm thick-wall square tube, via vibrating stress release process (VSR). If you have interest, please read how EagleTec build a machine

• This is one of our unique production processes. Gantry is made of an 8mm thick steel tube, ribbed inside also to increase the cnc router's rigidity. Needless to say, a ribbed one is prior to an unribbed one on stiffness capacity, in return, offering better precision-milled pieces.

• Independent electronic control cabinet at the side of the machine. Big and beautiful, good for future maintenance. The control panel is embedded in the cabinet.

• Adopting Taiwan SYNTEC CNC controller special for ATC cnc router machines. A true closed-loop control, Precise & Reliable.

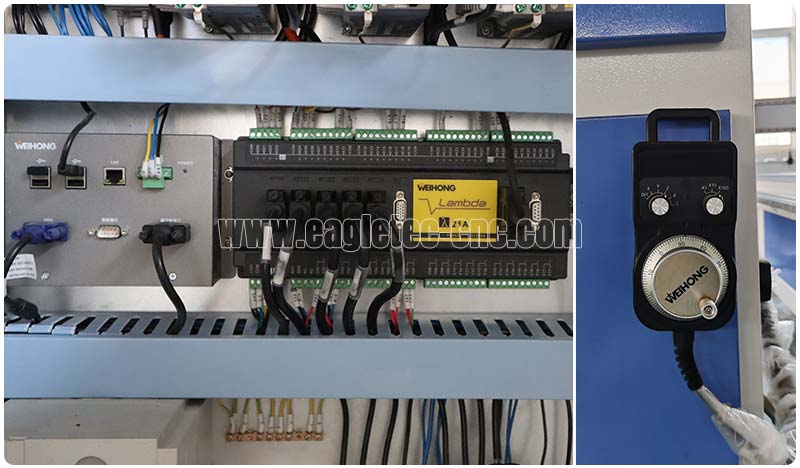

• As an option, the system could be WEIHONG NC60A also. It is an industrial computer; compared with other models, it is more effective and compact. The hardware set mainly includes: WEIHONG NC60A host, Lambda terminal board, MPG, LED monitor, mouse, and keyboard.

• The MPG handwheel facilitates us to set the work origin; because the operator can hold it and walk to the machine to operate.

• The software is NC studio. The display language can be English or Chinese. Readable file would be G code in ***.nc, ***.txt.

• The best ATC spindle for woodworking on earth. Genuine Italy HSD ATC spindle Model.ES929, 9.0KW, air cooling, ER32 collet, ISO30 tool holders. The economic package panel furniture cnc router would come with a Chinese ATC spindle 9.0kw with ISO30 tool tapers.

• Linear tool storage library at the end of the working bed, which can get 8 tools accommodated there. Vac-sorb working table.

Q: Which is better, Linear ATC VS Disk Type ATC? How to Choose Between the Both?

A: There are two types of tool magazines: linear type and carousel type (also known as disk type). Let's look at the difference between both their pros and cons.

• Linear ATC System

Pros: Less cost; The stability will be better because the linear tool bank is purely a mechanical mechanism and does not involve any electronics.

Cons: Linear ATC takes longer to change the tools than a Disk Type ATC CNC Router.

• Disk ATC System

Pros: with the excellent tool changing speed, we can only get the tools changed in 1 second at maximum.

Cons: Cost more. Reliability is slightly worse since it gets the electronic components involved as well.

Above are the advantages and disadvantages of both ATC types. Users can choose the ATC type that suits them according to their own preferences.

• The tool length sensor is beneficial for ATC cnc machines. It performs automatical calibration of the length for multiple tools, which significantly improves work efficiency.

How We Get the ATC Wood CNC Machine Packed

Quick Details of 1325 Row Type ATC CNC Machine to Make MDF Cabinet Doors

• Linear tool storage library at the end of the working table, which can get 8 tools accommodated. Another common option on this is circle type; please check on the router cnc 2030 atc machine if you are interested.

• Vac-sorb working table - strong vacuum hold-down

• Good dust extraction compatibility

• Max. Working Size 1300x2500mm (4x8 feet) - Standard | 1500x3000mm (5x10 feet) - optional

• Linear tool storage with 8 positions

• Genuine Italy HSD auto tool change electric spindle, air-cooled, 9.0kw, ISO30, 24000rpm (or Chinese Brand HQD 9.0KW)

• SYNTEC computer numerical control for auto tool change (or WEIHONG 60A) - Controller/software that works smoothly with standard G-code post

• Helical rack and pinion transmission on XY, 1.25 modulus

• Rolling ballscrew transmission on Z

• Square type linear guideways and bearing, 25mm

• AC servo on XYZ, dual-drive on Y-axis (WEIHONG or SYNTEC)

Application of ATC Router

Field

4x8 Linear ATC CNC router is widely used in MDF furniture sheets making (panel furniture) industries like MDF cabinet doors, belmont doors, classic cabinets, modern cabinets, MDF doors & drawer fronts, bespoke furniture, wardrobes, custom furniture, wooden door panels, office furniture, bedroom furniture, TV walls, and musical instrument manufacturing (guitar and speaker).

Materials

It is good for solid wood, MDF, PVC, plaster wall board (drywall), foam, aluminum, and more.

How to Make ATC Work?

In G-code, the T command is used to select the specified tool, and the following number indicates the selected tool number. The operator can define himself which tool number he will use. For example, if the project being processed requires 3 different tools to complete, the operator can name them T1, T2, and T3 respectively. In the finished tool path file, the path to be executed by tool No. 1 is placed below the T1 command; the path to be executed by tool No. 2 is placed below the command of T2; the same goes for T3. In this way, when we run the code, the machine can follow the code instructions to make the ATC work.

Technical Parameter of Linear ATC CNC Router for Sale

Daily Maintenance

After you put the machine into production, please take care of the following maintenance list.

• Clean the sawdust cut by the machine daily, especially the transmission components. There should be no materials or debris on them.

• Regularly check the wear of router bits and collets to avoid producing defective products.

• Lubricate the machine transmission parts on time. Please run the XYZ manually after lubrication is done. This step is to make lubrication oil average everywhere.

FAQs about EagleTec 4x8 Wood Furniture ATC CNC Router Machine EA-1325LATC

Q: Which Type of ATC Is More Reliable?

A: It is the linear ATC. Because this thing is a purely mechanical device. The disk ATC mechanism also includes electrical components, which are slightly more complex and, therefore, less reliable.

Q: Does A Machine Outfitted With A Carousel Tool Changer On The Side Take Less Space Than A Linear ATC Mounted At The Rear Or Is The Machine Footprint The Same?

A: CNC Router Machines with carousel tool magazines and those with linear tool magazines take up the same amount of floor space! That’s because there’s no need to extend the machine base when installing a linear tool magazine.

Q: What Is The Height From The Floor To The Router Table?

A: The height from floor to router table would be around 2.3' (700mm); This height does not include the adjustable leveling feet, which should be 50-60 mm. If this height doesn't quite work for you, we’d be happy to customize it to perfectly fit your needs!

Q: Regarding The Tool Diameter Min/Max Is That Referencing The Shank Only? 1/8-3/4"

A: Yes, it is referring to the shank only.

Q: Do You Have Any Idea How Much Of The 16kw Is Used If You're Not Pushing The Machine To The Max? For Example, If You're Cutting Typical Things Like 12-18mm Plywood With 3/8 Compression Bits?

A: In this situation, you'll find that the total power consumption could reach around 13 or 14 kW. That's because the spindle itself uses 9 kW when it’s running at its maximum speed. A more reliable solution would be to select a lower-power spindle to reduce the load. We also offer a 4.5kW option instead of the 9kW. A 4.5kW spindle is perfectly capable of handling all non-metallic materials; compared to a 9kW spindle, it might require a slightly longer cycle time. But honestly, that difference is pretty minor for small to medium batch production tasks.

Q: I Thought The Machine Comes With A Syntec Controller And Delta Servos. Is Weihong Controller And Servos Comparable? Are There Any Major Differences Between Them As Far As Functionality?

A: We offer two fantastic versions of the control system: WEIHONG and SYNTEC! The price difference is not too big, with SYNTEC being just a bit more expensive. Weihong is a publicly listed company in China, known for being a leader in the CNC motion field! Their controllers and servo motors perform exceptionally well and are functionally comparable to SYNTEC products.

To facilitate better collaboration and optimal performance between the servo motion units and the CNC system, as well as to provide improved after-sales support to our valued customers, we like to pair systems and servo products from the same brand. So, you’ll see us using WEIHONG systems with WEIHONG servos or SYNTEC systems with SYNTEC servos. This way, we can guarantee compatibility and reliability, which is our top priority! I’m not just saying this; it’s something we have proved through practice.

This doesn't mean we can't use Delta-branded servo units. If that's what you prefer, just let me know and I'll be happy to provide you with a quote like that.

Q: I Use Fusion 360, I'm Not Sure How That Integrates With Your Machines And Software?

A: We're pretty sure the EagleTec linear ATC router works well with the Fusion 360 program! In fact, several of our valued customers are already using Fusion 360 to create machining code for similar machines. Like most CNC machines worldwide, our machine operates using standard G-codes.

Q: How Much Compressed Air Is Required For The Machine In General And The ATC?

The compressed air pressure required for the machine in general and the tool magazine (ATC) is 0.6~0.8MPa.

Q: I Noticed Other Models You Have Use A Dry Ring Vac Pump, Is That Different From A Typical Vacuum Pump Setup?

When it comes to vacuum pumps, there are two main types you should know about: dry type and water ring type. Dry type pumps are often considered the better choice because they’re easier to use and last longer. Just keep in mind that they also come with a higher price tag!

Water ring vacuum pumps are now seldom used because the water tank tends to corrode to varying degrees after about a year of operation, leading to pump malfunctions. Aside from very low-cost equipment that is paired with this type of pump, almost no users opt for it anymore.

Q: Regarding The Vacuum Pump, Is It Located Within The Machine Base Or Outside?

The vacuum pump is located outside the machine base, often at the back or on the rear side.

Q: The Vacuum Pump Is Listed At 5.5kw. I Can't Add Too Much Of A Vacuum Because Of The Power Requirements, But I Think 7.5kw Vacuum Is Possible And Would Be Better No?

A: Yes, if it fits your budget, 7.5kW is definitely a better option. 5.5kW might be more suitable for users who need just enough suction power but value cost-effectiveness. However, for superior adsorption performance, then the 7.5 kW is definitely the way to go!

Q: Regarding The Vacuum Pump, Is It More Efficient To Have Multiple Smaller Pumps That Can Be Turned On Or Off Depending On Cutting Requirements Instead Of Having One Large Pump That's Running The Whole Time? I Know There's Different Vacuum Zones That Can Be Shut Off, But Can You Adjust The Vacuum Pressure On A Single Pump Or Is It Always Pulling Full Amps When It's Running?

A: Indeed, the three small vacuum pumps provide us with more flexibility; depending on production needs, you can turn on only one of them.The pressure of a single vacuum pump is not adjustable, and it is always pulling full amps when it's running.

Q: I Assume It Comes With A Tool Length Sensor As Well Since It's An ATC Model.

Correct. Every ATC Router built by EagleTec CNC is equipped with a tool length sensor; This little feature is key for making the automatic tool change process as smooth and efficient as possible, helping you get the most out of your automation experience.

Q: Does It Have Pop Up Pins For Locating Work Pieces?

The option of material alignment pop ups is available. It is optional, and you can choose to have it equipped or not, depending on what works best for you.

Q: Are There Riser Blocks/Pods That Can Be Used With The Vacuum Table To Elevate A Piece Slightly Above The Table Or Do People Not Bother And Simply Cut Into The Spoil Board? For Example If I Wanted To Profile The Edge Of A Table.

A: Vacuum pads add-on is available. If you need to profile the edges of a table, using vacuum pads is essential.

Q: Does The Dust Collector Adapter Next To The Spindle For 6" Hose? Is There A Support Arm To Hold The Hose Above The Table While The Machine Is Cutting?

A: Yes. There is dust hood next to the spindle for 6" hose (150mm); as well as support arm to hold the hose above the table.

Q: What's Required If I Wanted To Add A Removable Rotary 4th Axis? How Large A Workpiece Can The Rotary Accommodate?

To add a removable rotary 4th axis, we first need to upgrade the CNC system to support four-axis simultaneous operation. Second, add a separate driver for the rotary axis within the electrical control cabinet. Lastly, install aviation connectors on the machine base to facilitate the connection of the rotary axis.

The rotary is capable of handling workpieces up to 200 mm in diameter and can accommodate lengths of up to 1500 mm.

Q: If A 200mm Rotary Accessory Is Added Does The Total Height Increase At All?

A: The gantry height we have right now is just right for a 200mm diameter rotary, so that the overall height of the machine won’t be changing!

Q: Which Tool Carrier Is Better for Larger Tools? HSK 63F Or ISO30.

A: Assuming we are discussing the Italian spindle, the two are equal in terms of holding larger tools. If you go with a Chinese brand spindle, we prefer the ISO30 option based on our past experience. This is because the Chinese spindles that are equipped with this type of tool taper have been tested in the market for many years. As a result, these products are now well-established and demonstrate excellent stability.

While, the Chinese spindle with HSK63F taper has only been on the market for about two years. Therefore, the product is still in the improvement stage, not fully mature, which means its performance can be unstable.

Q: We Would Prefer The HSK63F Tool Mount Because The Holder Itself Can Have A Collet Chunk ER 40 And Is Thus More Stable For Tools Of Large Diameter And Length. For ISO30 The Maximum Collet Chunk Is ER 32?

A: No, the maximum collet size for ISO30 tapers is also ER40. With the ISO30-ER40 tapers, the machine can handle milling tasks with a large tool shank that is 32mm in diameter.

Q: Do You Have a Single Phase 4x8 ATC Machine with Vac Table?

A: Yes, we do. We can build the machine to run off single-phase 220V power using a smaller power spindle, such as 4.5kw.

Q: We Are Limited On Space, And Your Control Cabinets Are Larger Than We Are Used To. DO You Have A More Space Saving Option?

A: We have a more space-saving option for the control cabinet: a long, thin cabinet that hangs on the side of the machine base and a cantilever display.

Q: The Cantilever Control Looks Good, Is There A Tradeoff In Either Cost Or Function For This Option?

A: The cantilever control is equivalent to the traditional floor-standing control cabinet in terms of function, but its manufacturing cost is somewhat higher. This design separates the traditional control cabinet into two parts: the electronic cabinet hanging on the base and the cantilever control above it. This is commonly used on fiber laser cutting machines. but it is seldom applied in CNC Router. If you have specific needs in this regard, we are very happy to provide a solution tailored to your request.

Q: We Operate Our Machines at An Altitude 1700 Meters Above Sea Level, Can You Confirm That The Vacuum Pump Is Able To Safely Operate At That Altitude?

A: Yes, we can. Different types of vacuum pumps have varying adaptability to high altitudes, based on their design and usage conditions. For example, molecular pumps and diffusion pumps are less effective at high altitudes, while rotary vane pumps and dry pumps are more adaptable. We equip your machine with the latter. At high altitudes, the negative pressure generated by this type of vacuum pump will decrease slightly; however, it is still completely adequate for a 4x8 cnc router with tool changer.

Q: What Program Does the ATC Wood CNC Router Use?

A:  The operation program for the CNC is NC Studio Phoenix (original version). The machine can work with a majority of CAM programs such as ArtCAM, Aspire, Fusion 360, Vcarve (Vectric), MasterCAM and etc.

Q: Is The Software That Drives the Machines Proprietary or Will Software Like Us Base Master Cam Drive It? Mastercam is the industry standard here in the US.

A: Of course! MasterCAM is a great option for driving the machine. Like most CNC machines, our machine runs standard G-code files and is compatible with many CAM programs that is able to create G-code. Some popular options include Vectric Aspire, Fusion 360, V-Carve, PowerMILL, UG, MasterCAM, and others.

Q: Will It Work with Vcarve Pro Software?

A: Yes, it works with Vcarve too. The CNC runs international standard G-codes.

Q: Is It Possible to Add A 4th Rotary Attachment?

A: Yes, it is possible. After adding a 4th rotary axis attachment, the machine will be able to handle the production tasks for both flat and square/round materials. The 4th axis will be a 4-axis simultaneous rotary, which is capable of complex rotary carving/milling processes.

Q: Do You Know the Cost of Shipping for This Drywall CNC Machine?

A: We will be pleased to check that for you if you could tell us a port of entry or your location. We will provide you with two to three transportation options for you to choose from. This allows you to choose the option that is most hassle-free and cost-effective.

Q: Is there any additional assembly required once the China ATC cnc router received?

A: No, there isn't. Nothing needs to be knocked down for packing a 4' x8' size linear ATC CNC router. Therefore, no assembly is required on your side. What you should do is simply hook up the machine with your electricity power. Then you can start it.

Q: Is there a manual book to guide us? / How do you handle support and training?

A: Certainly yes. Specific tutorials (PDF and Video Guide) will be provided to you along with the ATC wood CNC machine. They are in English. There are clear instructions step by step. For the ATC machine, 99% of users can put it into production by self-study. If you are still confused after reading the manual, we are here to guide you. You can rest assured that we will guide you with everything you need to know to put your machine into production. Below is an operation demo for your reference.

Q: If Parts Are Needed, What Is Your Plan for That?

A: We provide deliveries for any damaged parts caused by production or quality defects during the guarantee period. After the warranty expires, replacement parts will be provided to our users based on the cost price. We are really happy to say that we have full confidence in our machines. They are built with the most reliable components and advanced scientific methods, so they have an incredibly low failure rate.

Q: Do You Have Any US Based Customers?

A: Yes, we have many. We have been exporting this kind of machines for more than 15 years. The United States is one of our major markets. On this website, we have several US client cases for your reference. Please click here to check them out.

Q: How to Use ATC CNC Router?

A: In general, the entire process is roughly divided into six steps.

Step 1. Create a tool path G-code file. This file should include T commands that can make ATC work, and the number of T commands should be consistent with the actual number of tools to be used in the machining process.

Step 2. Throw the completed G-code file to the CNC system through its USB port.

Step 3. Set XYZ=0 for the first tool; the workpiece origin we set should be consistent with the processing origin in the G code file.

Step 4. Please calibrate the lengths of the remaining tools and read the calibration values into the CNC system.

Step 5. Do the setup for machining parameters include the feed speed of each motion axis, fast travel rate, spindle RPM, etc.

Step 6. Start the auto work.

Q: What is the warranty for this atc router?

A: It's 12 months since the departure date of the vessel. During the warranty, we will provide you with a free replacement for any broken parts or components. For your information, we provide technical support to you forever.

Q: What can we do if the linear ATC cnc router goes wrong?

A: For troubleshooting, kindly contact us ASAP and illustrate the details for us. Our team will provide you with a solution in no more than 24 hours for sure. It can be through drawings, schematics, PDF tutorials, video demos, or live video chat.

Q: Are there any forums we need to fill out before purchasing?

A: No, there isn’t. If you are ready to purchase or move forward, we will send you the proforma invoice for arranging the down payment by wire transfer. There are no forums that need to be filled out before purchasing. Thanks.

Q: What is the transaction process like?

A: We will put your order into production once your down payment is received. After the production is completed, we will conduct tests for your machine and take videos and photos, then share them with you. If you think everything is okay, then you can get the remaining balance paid, and we will proceed with the shipping arrangements. The entire transaction process is like this. If you have any questions, please feel free to ask.
