Fiber Laser Engraving Machines for Metal 10w/20w/30w

Model: ET-FL20M

Category: Fiber Laser Marking Machine

Laser Type: Fiber Laser (Best brand -- Raycus)

Brand Name: EagleTec CNC Laser Fiber Engraving Machine 10W / 20W / 30W

Condition: New Condition

Reference Price: U.S.$2,850 / SET

Price Range: USD2600 to USD5000 / SET with Different Configuration Level

HS Code: 8456110090

Package & Weight: 930x580x850mm (0.46CBM) | 73KGS

Availability: in stock

Lead Time: 3 to 5 days

Payment Method: T/T (Telegraphic Transfer), Western Union, Money Gram

Recommendation: Laser Fiber Engraving Machine 10W / 20W / 30W4.7 /5 based on 62 reviews



EA-FL20M is a fiber laser engraving machine (also known as laser fiber marking machine) with a portable yet upright column design. It has the same pillar architecture as bench style 20w fiber laser marking machine, but with a portable design and small foot-print. So, the target group of this machine is those ones: first, the users who are looking for a portable marker yet with a pillar construction; second, the users who will let it engrave on objects with large size like 2000x200mm (object size).

Similar models you might have an interest:

Portable fiber laser marking machine

Hand-held laser marking machine

10w 20w 30w laser fiber engraving machine

Video Demo: Fiber Laser Black Marking QR Code on Aluminum

If you are looking to buy a machine for marking qr code in batch, please check our qr code laser engraving machine

Unique Features of Fibre Laser Engraving Machines 20w/30w/50w

• Pillar and the open table is always a perfect match. Unlike enclosed table, it has no limit on object sizes. Seeing from this point, it performs the same as a desktop fiber laser marking machine. In addition, it is a perfect solution for big-size object engraving applications.

• The pillar enables the laser engraving and marking head to be moved up and down manually with the handwheel on the top. (manual Z-axis adjustment & manual focusing)

• While from the foot-print point of view, it has the same advantage as a portable laser engraver machine. Moreover, the portable model can't run with a rotary attachment, while this fibre laser engraving machine can do.

In a conclusion, it has the advantages of both portable and desktop-style fiber laser engraving machines.

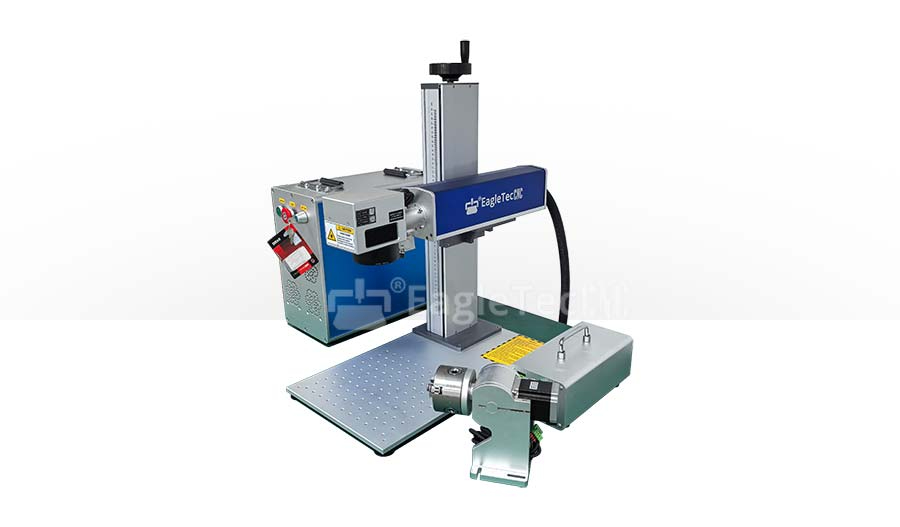

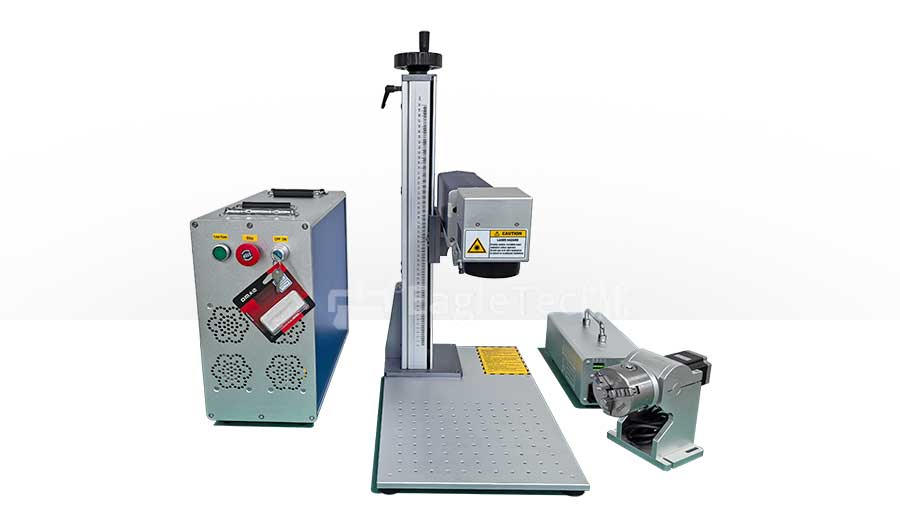

20w fiber laser engraving machine with rotary attachment

Fiber Laser Engraving Machines Usage


Whether you are going to etch metal with logos, numbers, barcodes, and graphics, or you are personalizing metal items such as jewelry, pens, watch, nameplate, or crafts, the fiber laser metal engraving marking machine here can help you to accomplish your goals.


Most metals (rare or coated), plastic, acrylic, glass, wood, leather, PE, PCB, ceramic, epoxy resin, electroplating materials, rubber, and more.

How to Perform Focusing for This Fiber Laser Metal Nameplate Engraving Machine

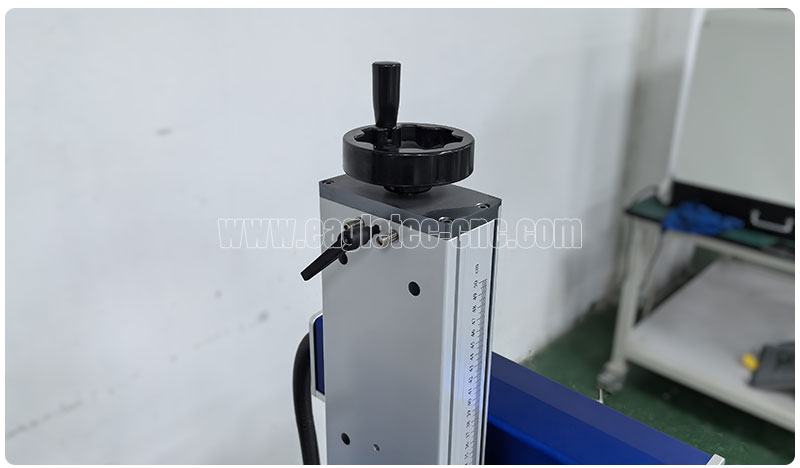

In this way, measuring the focal length with the ruler provided by us and move the marking head along with the pillar vertically to the proper height by the handwheel at the top of the upright column.

Fiber Laser Marking Software for This Machine

• It is EzCad from the BJJCZ company (genuine version in English). It serves as both programming and operating software. With our most specific tutorial in English, you will edit the engraving contents (text or graphic) easily in the software. EzCAD comes together with your laser marking and engraving machine.

• For your information, the EzCad works well with a diversity of graphics including plt, BMP, Dxf, jpg, tif, ai.

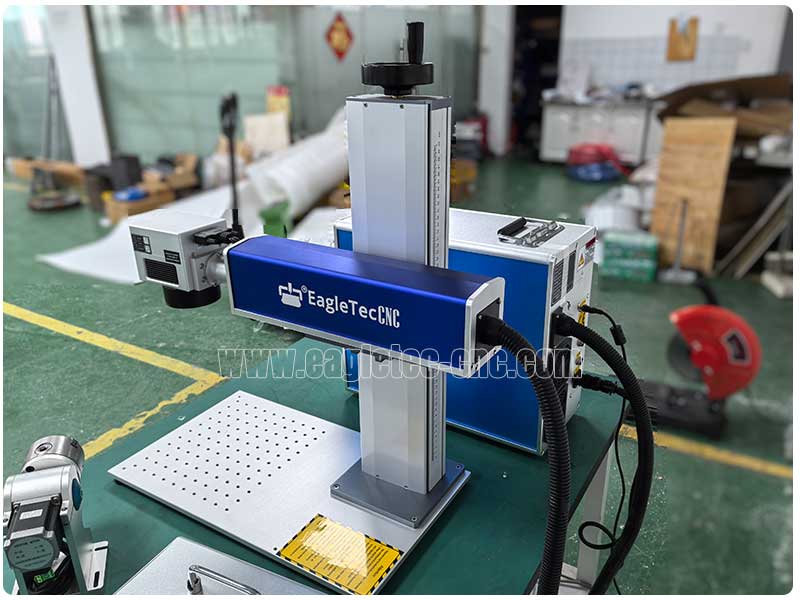

portable laser fiber marking machine with pillar architecture

Key Points of Fiber Laser Engraving Machine for Metal 20w/30w/50w

• Ideal for oversize, regular, mobile, and light items engraving or marking applications

• Engraving area 4.33" x4.33" by default (110x110mm)

• High-performance scanning head

• 20w/30w/50w fiber laser source – best brand Raycus

• Laser dot indicator

• Average lifespan exceeds 10,000 hours


• Max. Engraving Speed is 7,000mm/second

• Fast, precise, permanent marking

• BJJCZ control system with EzCad marking/operating software

• Foot Pedal

• Maintenance free.

• Guaranteed to give you years of trouble-free operation.

Is the EagleTec Fiber Laser Marking and Engraving Machine Easy to Start-Up?

• True plug and play design. No on-site installation required.

• The system debugging is completed in our factory and a soft copy of the system settings backup will be provided to you for further use. No on-site debugging is required neither.

• EzCad software is easy to use. With our most specific tutorials, you will start up this fiber laser marking engraving machine quickly.

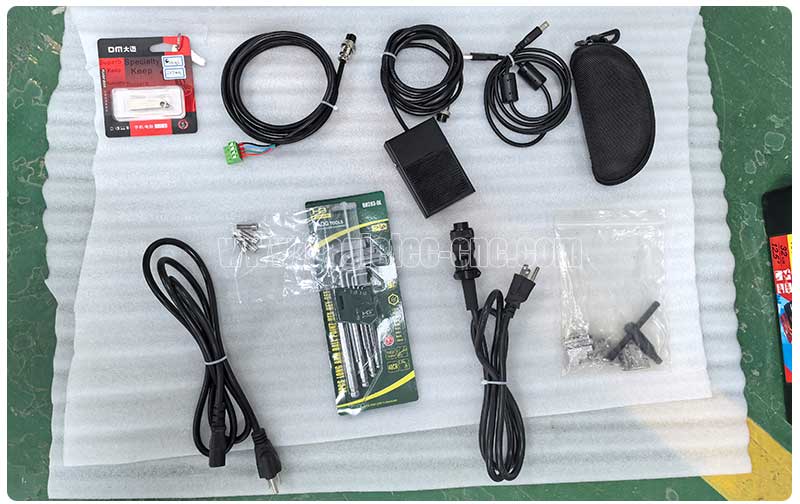

Default Accessory for The Fiber Laser Metal Engraving Marking Machine

• Tool Box

• USB flash with marking software installation package and system parameter backup

• Foot Pedal

• Laser Safety Goggle (protective goggles)

• Spanner Set

• Power Cord

• User Manuals (full set PDF + Video Tutorials)

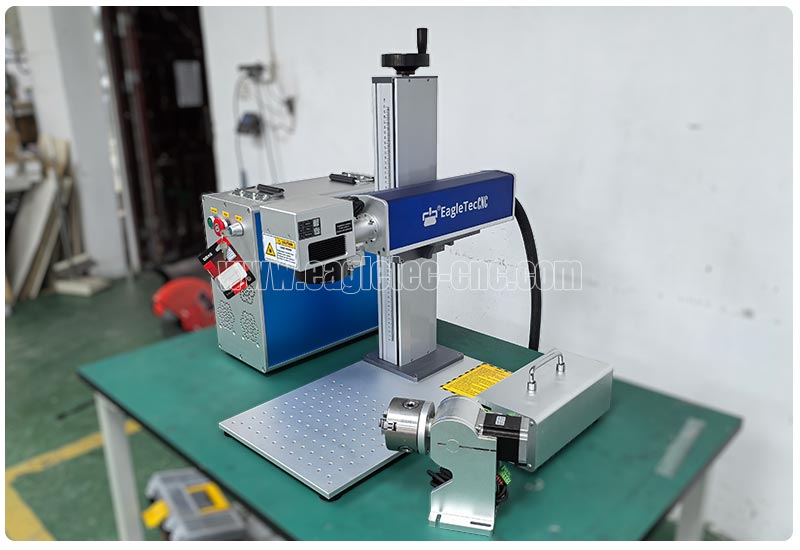

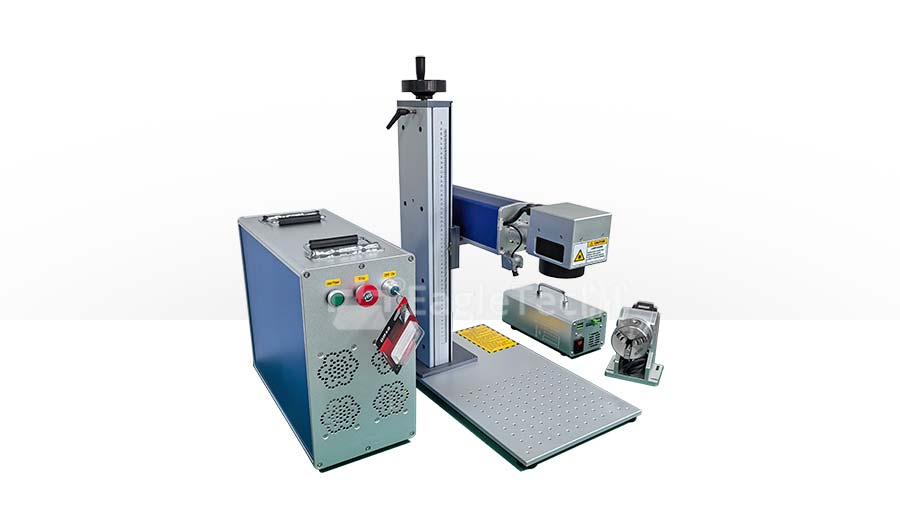

laser fiber engraver machine with rotary attachment

Optional Attachment for Small Laser Engraving Machine for Metal with Fiber Laser Source

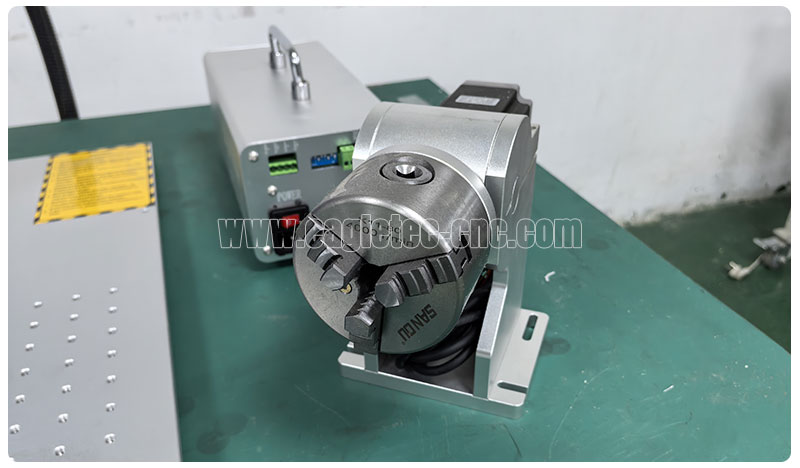

• 3-Jaw chuck rotary attachment with maximum holding diameter of 3.14”

• HP brand laptop with Windows system in English

• Laser marking turntable dedicated for pens engraving

• Smoke purifier

• Adjustable engraving table (X/Y or X/Y/Z height-adjustable platform)

Technical Parameters of EagleTec Fiber Laser Engraving Machine for Pens

Machine ModelEA-FL20M
Machine TypeLaser Fiber Engraver (marking machine)
Focusing ModeManual via Handwheel
Engraving (marking) Area(4.33"x4.33")110x110mm
Repeated Accuracy0.05mm
Fiber Power Option20 Watts - default  (10W / 30W as options)
Laser OpticsFiber laser, the best one in China - Raycus
Laser Lifespan100,000+ hours, covering 24-month warranty
Laser Wave Length1064nm
Cooling ModeActive air
Galvo ScannerSINO-GALVO - The best one in China
Marking RateAdjustable 0-7,000mm/sec
Laser Marking ControllerGenuine BJJCZ control card with USB port
Marking SoftwareGenuine EzCad from BJJCZ, in English - compatible with Windows 7, 8, and 10 (both 32 bits and 64 bits)
Marking Line Size0.01 - 0.1mm (width)
Marking Depth0.01 - 5mm (depending on materials)
Mini Line Characters0.2mm
Graphic FormatSupport plt, BMP, Dxf, jpg, tif, ai
Computer System RequirementAll Windows OS
VoltsAC220V±10%, 50/60Hz, Single Phase (or AC110V/60Hz, Single Ph)
Packing Size930x580x850mm (0.46CBM)
Gross Weight73KGS
Optional Accessory 1.Laptop (HP) with the Windows system in English
Optional Accessory 2.Smoke purify system
Optional Accessory 3.X/Y/Z adjustable table (height-adjustable platform)
Optional Accessory 4.3-Jaw Chuck style rotary attachment (3.14" D)
Optional Accessory 5.Dedicated marking turntable for pen
Optional Accessory 6.X/Y adjustable table


FAQ regarding This Laser Metal Nameplate Engraving Machine with Fiber Laser Generator

What to do if the machine out of order?

Please contact us ASAP once it is out of order. Our team will provide online technical support to you directly. They are well experienced and will offer you a solution within 24 hours.

What is the lead time of the fiber laser engraving machine for metal?

Lead time is 3 to 5 days on receipt of deposit usually.

What is the warranty for the fiber laser marking engraving machine?

All our fiber laser marker machines are covered with a 24-month warranty since the departure date. During the warranty, you will enjoy free replacement for any broken parts (excluding Vulnerable parts). For more details of the warranty, please check it out here: EagleTec Warranty Policy

What are the available means for shipping?

For this small laser engraving machine, both Sea and Air shipping are ok.
