280W CNC Laser Cutting Machine For Acrylic Wood Metal

https://www.eagletec-cnc.com/fiber-laser-cutting-machine/fiber-laser-metal-cutting-machines.htmlModel: ET-1325LM2

Category: Mix Laser Cutting Machine

Brand Name: EagleTec CNC 280W CNC Laser Cutting Machine For Acrylic Wood Metal

Condition: New Condition

Reference Price: USD13358 / SET

Price Range: USD8600 to USD21000 / SET per Different Configuration

Supply Ability: 200 Sets Monthly

Availability: PreOrder - Put into production on receipt of down payment

Payment Method: Bank Transfer, Western Union, Money Gram

Recommendation: 280W CNC Laser Cutting Machine For Acrylic Wood Metal 4.9/5 based on 68 reviews


Brief Description­­

Equipped with a mixed laser cutting head, this cnc laser cutting machine with a 280 watts co2 tube is ideal for cutting materials like acrylic, wood, and thin metal sheets (3~4mm). The motion system is powered by steppers via belt-driven transmission. Adopting Yongli beam combined laser tube 280w, it has sufficient power to cut through thin metal and thick non-metallic plates. 280W cnc laser cutting machine for acrylic wood metal for sale at an affordable price now.

If you are planning to cut metal plates only, please check out our metal cutting laser cnc

If you have both metal and non-metal to cut and the metal is over 4mm thick, please check out our co2 fiber laser combo

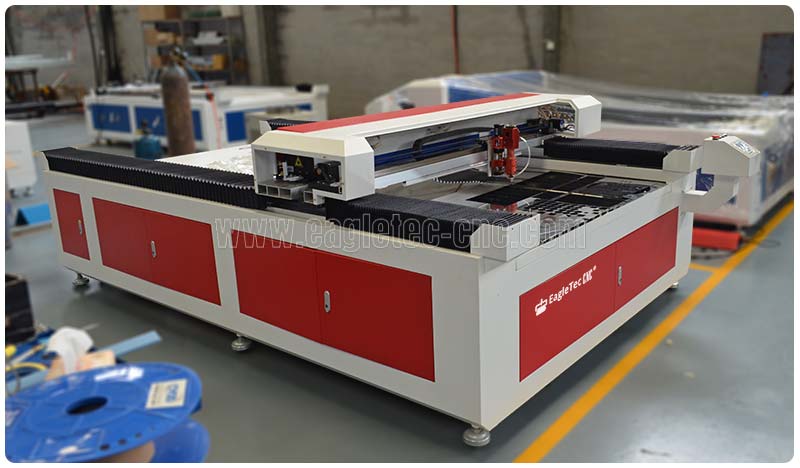

red cnc laser cutting machine for acrylic wood metal with 280w co2 tube

Work Demo – Cut Acrylic and Metal with 280W CNC Laser Cutting Machine

Applications of Metal and Wood Laser Cutting Machine

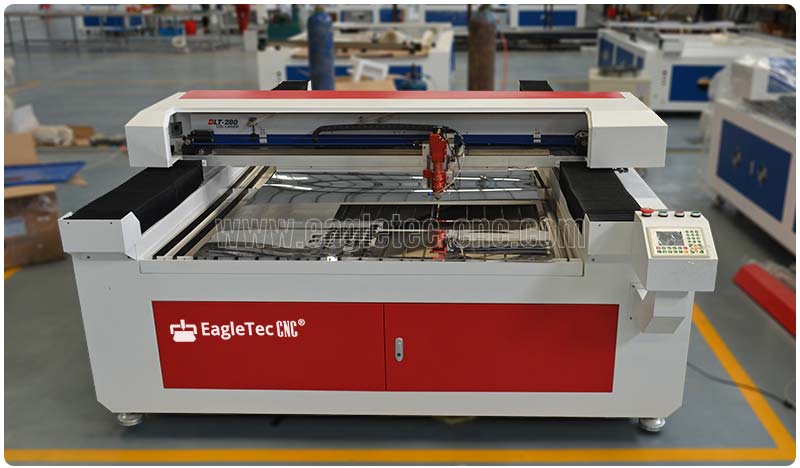

red laser wood and metal cutting machine in the workshop

Applicable Field

The laser wood and metal cutting machines are usually applied to the fields: signage (stainless steel and acrylic), sheet metal, package goods, crystal items, paper cut crafts, artworks, decoration, leather processing, photo frame, and packing industry.

Materials Good For

Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF, and other materials.

Laser Acrylic Wood Metal Cut Projects

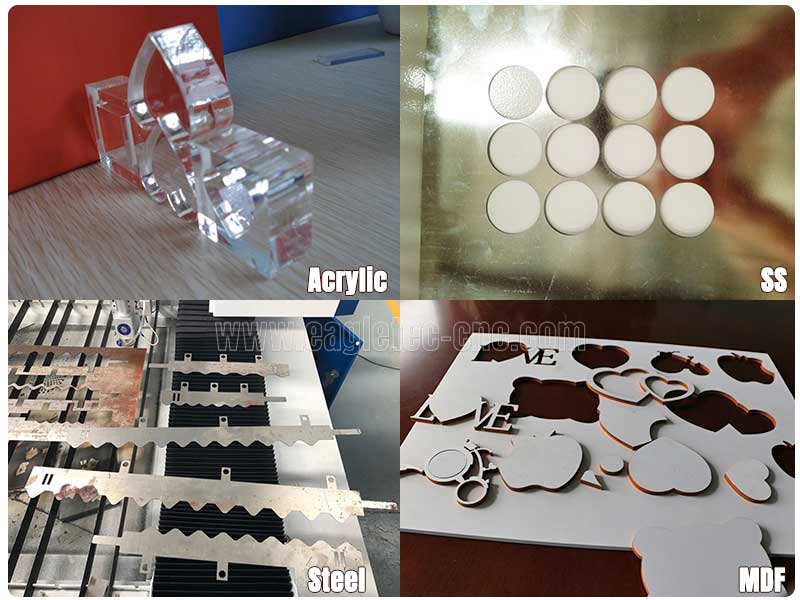

laser acrylic wood metal cut projects

CNC Laser Cutting Machine Features

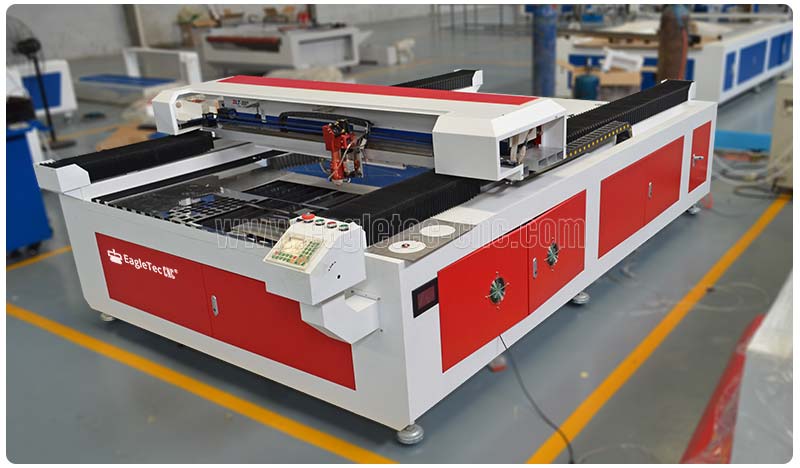

complete set laser cutting machine for wood and metal

• The cut section is clean and smooth, with high precision, which can meet the requirements of precision parts fabrication very well.

• The performance of the whole setup is reliable, which can meet the needs of continuous long-time cutting applications.

• Excellent mixed cutting ability can cut stainless steel, carbon steel, acrylic, and wood.

Laser Wood and Metal Cutting Machine Specification

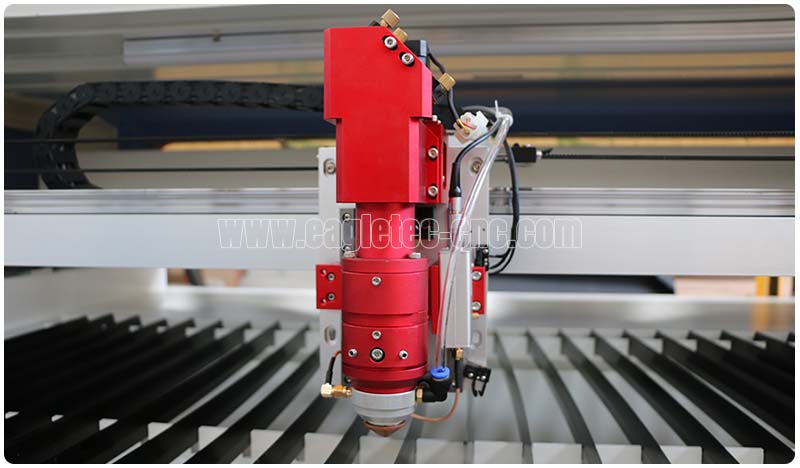

• Auto-focus cutting head can keep the focal length consistent on uneven surfaces to allow the laser cutting machine to cut along that crooked plate.

auto-focus mixed laser cutting head for laser wood and metal cutting machine

• The dedicated mixed laser cutting head can meet the cutting needs of metal, wood, and acrylic materials very well.

• A 280 watts Yongli beam combined CO2 laser tube has sufficient power to thin metal sheets and thick non-metallic plates (acrylic and wood).

280w beam combined co2 laser tube on the laser cutting machine

• The axial motion system is powered by stepper motors and drivers.

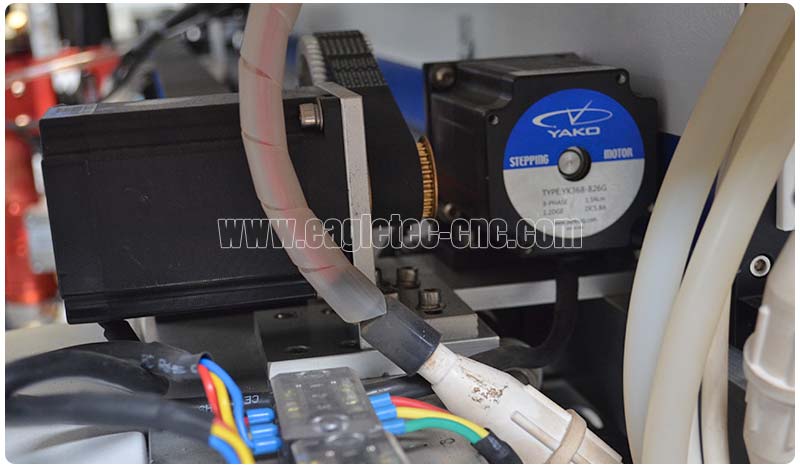

stepper motor on the cnc laser cutting machine for acrylic wood metal

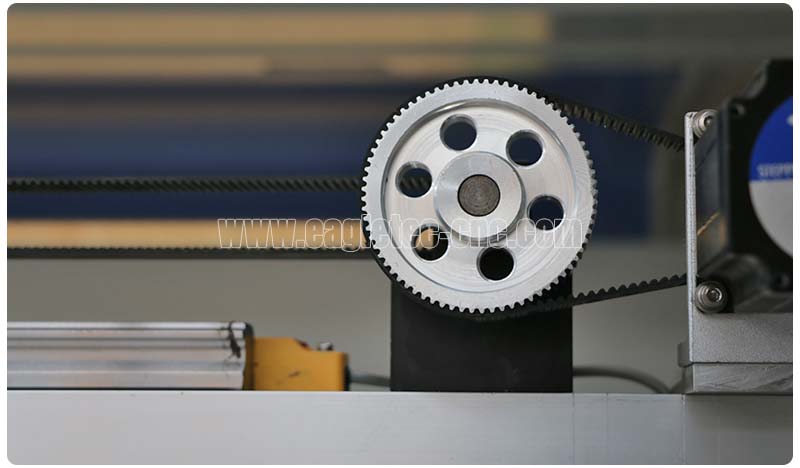

• The power is transformed into the displacement of the cutting head through a transmission system composed of belts and gears.

belt and gear transmission system for laser metal and wood cutting machine

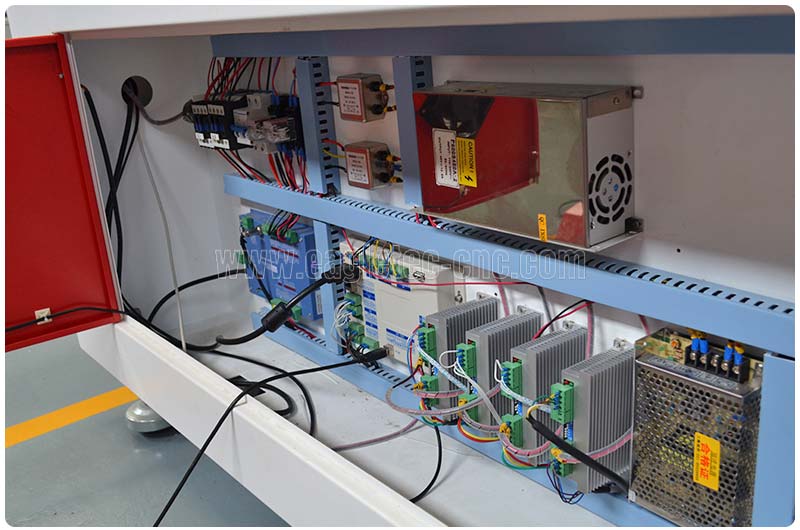

• Most of the electrical components are installed in the electrical cabinet on the side of the machine. It has good airtightness and can prevent foreign objects such as dust and slag from falling into the components.

electronic components in the sealed cabinet on the side of laser cutting machine

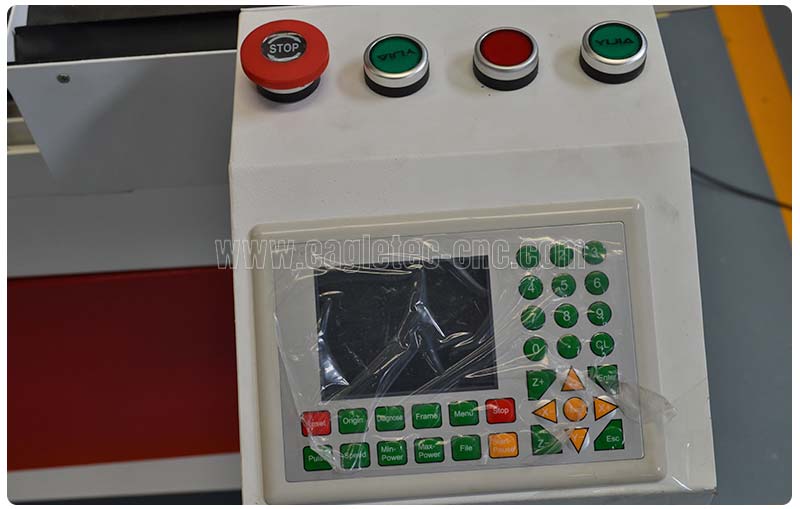

• The equipment adopts a numerical controller, particularly for diverse laser cutting applications. The brand is a well-known Chinese brand Ruida, and the system has excellent operational stability. The functional language is English.

RD numerical system for laser metal and wood cutting machine

Quick Details of Laser Cutting Machine For Wood And Metal

• Max. Cutting size 1300x2500mm

• 280W beam combined CO2 laser tube – Brand: Yongli

• Pure circulating water cooling

• RD mixed laser cutting control system (DSP offline control system)

• Dedicated auto-focus mixed laser cutting head

• Origin PMI linear guides with 20mm size

• Sword blade work table

• Stepper motors and drivers – Brand: YAKO

• Belt transmission

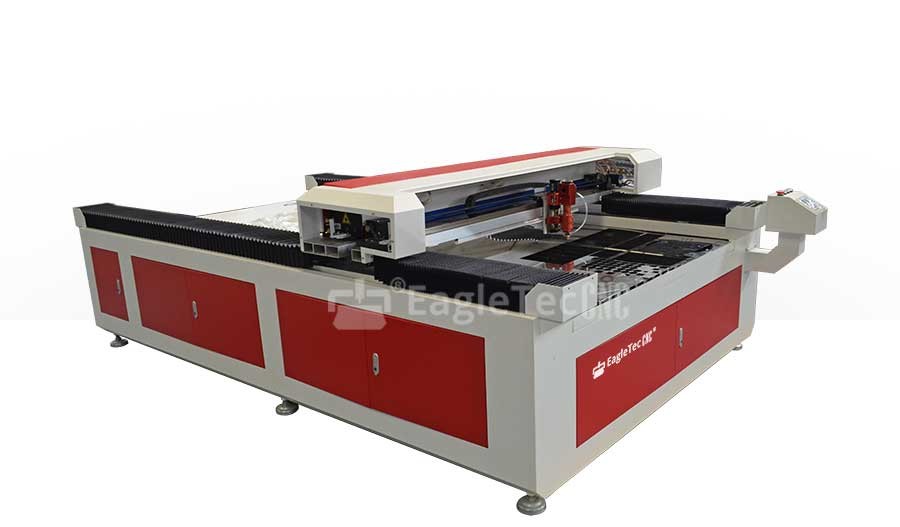

affordable 280w laser wood and metal cutting machine

Global Technical Support Details of EagleTec 280W CNC Laser Cutting Machine For Acrylic Wood Metal

• We will guide you through everything from the first-time setup until you put your laser cutting machine for wood and metal into production.

• A complete set of tutorials (video + text) would be provided with the laser machine, which is clear and well written in English.

• We provide comprehensive online training to ensure that you put the machine into your production. Our team is ready to guide you through the issues via live call, video guide, or other online ways whenever you have questions while learning how to use it.

Technical Data of Laser Cutter for Wood and Metal

Machine ModelET-1325LM2
Machine TypeMixed laser cutting machine
Working Area1300x2500mm (In imperial: 4x8 feet)
Laser TypeSealed CO2 glass laser tube
Laser Power and Brand280W, Yongli (More options available: 150W, 180W, 220W)
Cutting HeadMixed laser cutting head - autofocus
Mirror and LensAmerican mirror and lens
Control SystemRD Works (DSP offline control, 0-100% adjustable output laser power)
Repetition Accuracy0.01mm
Motion SystemStepper motors and drivers
Cutting BedSword/Blade
Cooling ModePure circulating water cooling
Linear GuidewayOriginal HIWIN/PMI linear guides from Taiwan (Lifespan 8 to 10 years)
Editable Graphics ExtensionAI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Max. Engraving Speed60,000mm/min
Min. LetterEnglish: 1.0x1.0mm
Max. Cutting Speed30,000mm/min
Working VoltageAC220V/50~60Hz, 1 Phase
Working ConditionTemperature: 0~45℃; Humidity: 5%~95%

FAQs about the Affordable Laser Wood and Metal Cutting Machine ET-1325LM2

Q: I Cut Mild Steel, What Is The Maximum Thickness It Will Cut?

A: One 300W CO2 mixed laser can cut 3~4mm thickness of mild steel at most. The point of the CO2 mixed laser cutting machine lies in the diversity of its application range, which can cut both non-metallic materials and thin metal materials. However, it is important to note that since it is not a machine particularly designed for metal cutting, its capabilities in metal cutting are not outstanding. If you only cut metal materials, a fiber laser cutting machine will be a perfect fit for that. To learn more, please click cnc laser cutter for metal

Q: What Power Is Needed For The Laser And Power For The Chiller?

A: Both the laser and chiller run off 200~240VAC/single-phase, 50/60Hz power.

Q: What is the Minimum Character It Can Do?

A: It can engrave 1.0x1.0mm English letters as a minimum.

Q: What Type Of Auxiliary Gas Does The 300W Laser Use?

A: The auxiliary gas for this machine could be compressed air or oxygen.

Q: What is the Maximum Cutting Thickness of This Machine?

A: Because it can cut a diversity of materials. The specific cutting thickness varies with different materials. Therefore, there is no uniform standard answer. If you are willing to tell us the required cutting thickness, we would be glad to confirm with you.

How Can You Get this Machine Shipped to Us?

A: We can get it shipped to all the world by sea. It would help if you told us your port of entry to quote the ocean freight for your reference.


If you like the 280w cnc laser cutting machine for sale here, please ask for a free proposal now
